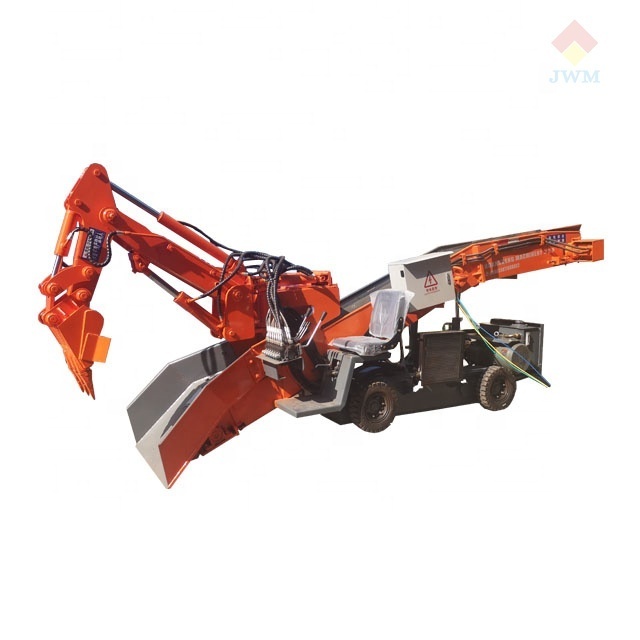

Jinwang Wheeled Conveyor Mucking Core Drill Loader Machine In Mine Tunnel Loader

Jinwang Wheeled Conveyor Mucking Core Drill Loader Machine In Mine Tunnel Loader

FOB Reference Price: Get Latest Price

≥1 Sets

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: JINWANG

Product name:: Loader Machine In Mine Tunnel Loader

Keyword:: Wheeled Conveyor Mucking Core Drill Loader

Bucket capacity:: 0.4CBM

Drive type:: 4x4 Chain Drive

After-sales Service Provided:: Support 1 Year

Color:: Customer's Requiement

Brand:: JINWANG ZWY-40A Electric Mucking Loader

Machine name:: Mini Mucking Loader

Usage:: Multiple Purpose

Function:: Multi Purpose Function

Quick Details

Weight (KG):: 3100

Marketing Type:: Hot Product 2023

Place of Origin:: Henan, China

Brand Name:: JINWANG

Product name:: Loader Machine In Mine Tunnel Loader

Keyword:: Wheeled Conveyor Mucking Core Drill Loader

Bucket capacity:: 0.4CBM

Drive type:: 4x4 Chain Drive

After-sales Service Provided:: Support 1 Year

Color:: Customer's Requiement

Brand:: JINWANG ZWY-40A Electric Mucking Loader

Machine name:: Mini Mucking Loader

Usage:: Multiple Purpose

Function:: Multi Purpose Function

Products Description

Jinwang Wheeled Conveyor Mucking Core Drill Loader Machine In Mine Tunnel Loader

Gongyi Xiaoyi Jinwang Machinery Factory is a factory specializing in the production of mini dumpers and mucking loaders.

The mucking loader is suitable for construction machinery of tunnel excavation and transportation , mining engineering, the collection of rock and soil materials in tunnels and mines such as non-metallic mines, loading and unloading stones.

Product Paramenters

Traveling Speed	2km/h	Machine Weight	3100kg
Ground Clearance	200mm	Minimum Turning Radius	4m
Wheel Tread	1000mm	Digging Width	2000mm
Wheel Base	1500mm	Digging Height	1700mm
Rated WorkingPressure	16mpa	Digging Depth	700mm
Big Arm Maximum Turning Angle	±73˚	Digging Distance	1300mm
Total Motor Power	11+4kw	Dumping Height	1400-1700mm
Maximum Material Dimension	650500550mm	Dumping Distance	1400mm
Adaptive Tunnel Gradient	≤15°	Grade ability	≤15°
Belt Speed	0.63m/s	Adaptive Tunnel Minimum Fracture	>1.2*1.8m
Overall Dimensions	480010001600mm

Application Scenario

When your mine width is more than 1.2 M,height is more than 1.4 M,

Our ZWY-40A model machine can go inside mine

From the left picture, you could see that.

Normally, for the mine, we need to leave space for emergency matters, cable lines and ventilating device.

With considering that, our Model ZWY-40A can be apply to the mine or tunnel which section is more than 1.5M*1.5M

Product Details

Type A

Rotate at original place ,this type machine is suitable to use in narrow mine,have a curve inside tunnel ,which has smaller radius of turning circle.

Type B

W heel bridge structure,this type of machine uses front axle and rear axle ,which makes the chassis structure. This type has reliable quality and easy to maintenance.

In this product page, we would like to introduce sliding structure mucking loader machine.

Model ZWY-40A,number 40 refers to the capacity, 40m3/hour.

If you have interested in our wheel bridge structure, please contact me, I will send video and details to explain.

The following is all the information of model ZWY-40A.

Sliding chassis structure of underground diesel loader ( We can customize machine width )

We can customize the narrowest width, which machine can work in narrow place.

Sliding chassis structure has 2 pieces hydraulic motor to drive the machine, one hydraulic motor in A side.

To drive 2 wheels, the other hydraulic motor in B side, to drive another 2 wheels.

The chassis is made by our factory, so we can customize the C length,to achieve machine width customize. While the wheel bridge structure is mainly of bridge, which has limitation of width.

Using the hydraulic operating system , the operation is more simple and convenient, practical and efficient.

Some Customize Parts

According to the specific use scenarios of customers, it is possible to choose to install devices such as breaking hammers and milling heads.
