Quick Details
-
Luminous Efficacy(lm/w):
-
0
-
Product Weight（kg）:
-
0.09
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOION
-
Connection Mode:
-
Wireless
-
Special:
-
Control by both Tuya and remote
-
Certifications:
-
CE,ROHS
-
Sync Control pcs:
-
No limited quantity
-
Remote distance:
-
20-30m/Not limite distance
-
Supply voltage:
-
DC12V~24V
-
Output:
-
3 channels
-
Output current:
-
<5A(each channel)
-
Voltage:
-
DC12V~24V
-
Controller Size:
-
L95*W47*H33 mm
-
Compatible remote:
-
1 zone; 4 zone; TUYA APP
Quick Details
-
Warranty(Year):
-
3-Year
-
Type:
-
Remote Control
-
Max. Load Power:
-
24V/360W; 12V/180W
-
Luminous Efficacy(lm/w):
-
0
-
Product Weight（kg）:
-
0.09
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOION
-
Connection Mode:
-
Wireless
-
Special:
-
Control by both Tuya and remote
-
Certifications:
-
CE,ROHS
-
Sync Control pcs:
-
No limited quantity
-
Remote distance:
-
20-30m/Not limite distance
-
Supply voltage:
-
DC12V~24V
-
Output:
-
3 channels
-
Output current:
-
<5A(each channel)
-
Voltage:
-
DC12V~24V
-
Controller Size:
-
L95*W47*H33 mm
-
Compatible remote:
-
1 zone; 4 zone; TUYA APP

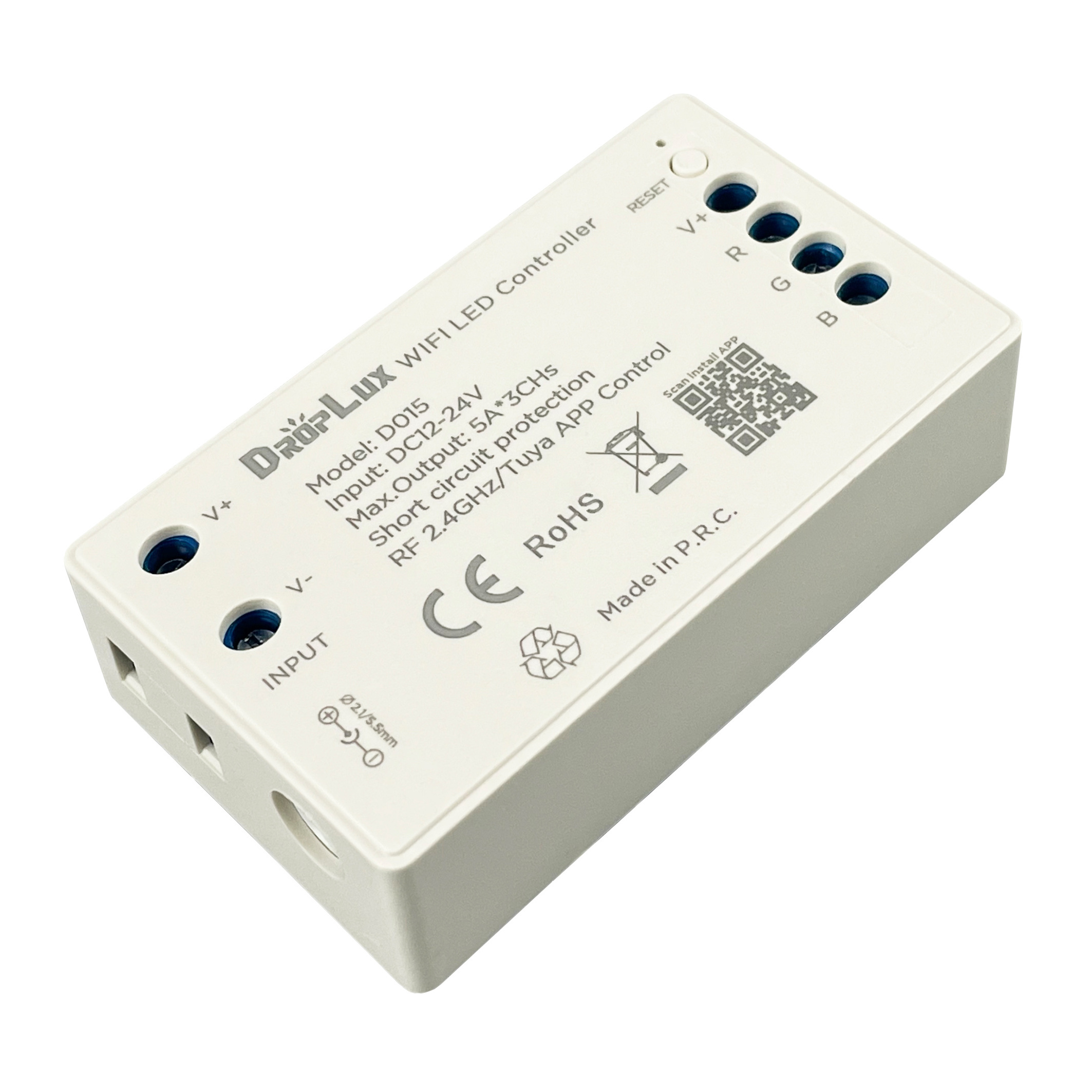

D015 RGB TUYA WIFI Controller Compatible Google Alexa 2.4G Wireless Control WIFI TUYA RGB LED Strip Controller
D015
D015 WIFI led controller for LED RGB Strips
Controller adopts the most advanced PWM (Pulse Width Modulation) digital control technology, it is used for controlling constant voltage LED RGB lamps. For instance, point source of light, flexible light strip, led modules, led strings and so on. Can be controlled by both RF 2.4GHz remote control and WIFI APP, the WIFI control technology powered by Tuya.
2. Technical Parameters
D015 LED Controller
|
Working temperature |
-20-60℃ |
Supply voltage |
DC12V-24V |
|
Static power consumption |
<1W |
Connecting mode |
Common anode |
|
Grayscale |
1024 levels |
Speed stage |
100 levels |
|
External dimension |
L70*W40*H20 mm |
Packing size |
L95*W47*H33mm |
|
Net weight |
65g |
Gross weight |
80g |
|
RF frequency |
2.4GHz |
RF distance |
≤20m |
|
Short circuit protection |
Yes |
Memory function |
Yes |
|
Output |
3 channels |
Output current |
≤5A(each channel) |
|
PWM frequency |
1.95KHz |
Max. Output power |
12V:<180W, 24V:<360W |
3. Product Feature
1) Adopts RF 2.4GHz,
wireless synchronous control, receivers could transfer signal to each other, no directional
2) D015 Controlled by remote
3) Wifi Technology powered by APP "Tuya"
4) Short-circuit protection
3. Dimensions
4. Interface Specifications
5. Direction for use
5. Typical Application
Product information for placing order
|
Product name |
Item number |
|
D015 series WIFI led controller for RGB |
WIFI controller: D015 Remote control(optional): HX-SWC-RGB-2.4G HX-RFBK-RGB-2.4G HX-HWP86-RGB-2.4G RFBT02A |
