Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZG
-
Model Number:
-
Tempered laminated glass
-
Technique:
-
Tempered Glass
-
Type:
-
Float Glass
-
Name:
-
Tempered laminated glass
-
Color:
-
Customized
-
Product name:
-
Tempered Glass Panel
-
Material:
-
Qualified Tempered Float Glass
-
Certificate:
-
ISO
-
Processing:
-
Custom Designed
Quick Details
-
Application:
-
All Building
-
Usage:
-
Industrial, Medical, Decoration, Solar, Greenhouse, Curtain Wall, Balustrades & Handrails, Image formation, Lighting, Bulletproof, Display screen, Instrument, Building
-
Thickness:
-
3mm-12mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SZG
-
Model Number:
-
Tempered laminated glass
-
Technique:
-
Tempered Glass
-
Type:
-
Float Glass
-
Name:
-
Tempered laminated glass
-
Color:
-
Customized
-
Product name:
-
Tempered Glass Panel
-
Material:
-
Qualified Tempered Float Glass
-
Certificate:
-
ISO
-
Processing:
-
Custom Designed

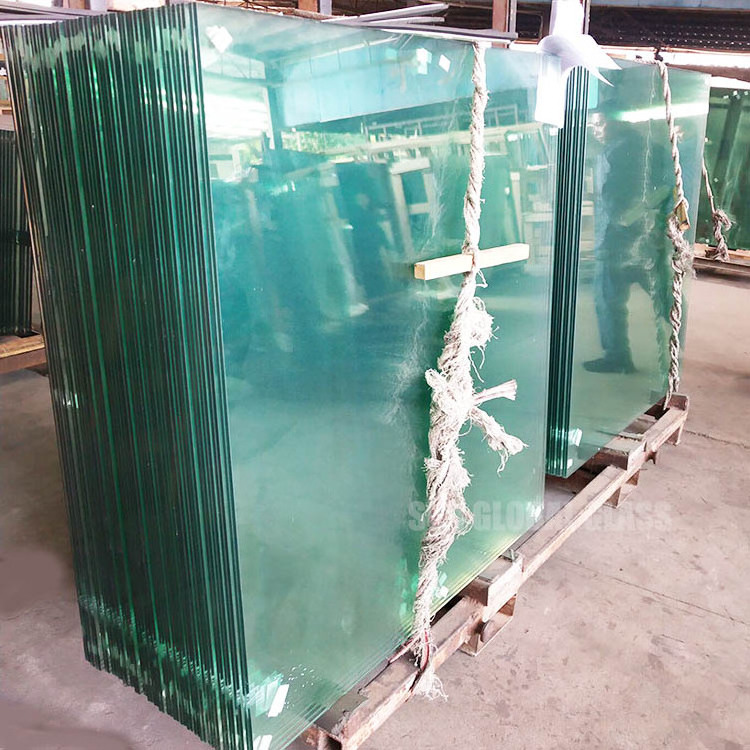

Clear Tempered Laminated Glass Sheet Safety Bulletproof Tempered Thermal Double Layer Interlayer Pvb Laminated Glass Factory
Product Details
Laminated Glass Process:
PVB laminated glass is manufactured by combining two or more annealed or heat treated glass sheets bonded with one or more of PVB interlayers and subjected to heat and pressure, in order to ensure perfect adhesion between the constituent elements.
The lamination process comprises the following steps:
Glass pre-processing
Cutting and grinding
Washing
Drying
Lamination
De-airing/edge sealing
Unloading
|
Thickness
|
17.52mm
|
|
|
|
|
Color
|
Clear, also welcome to customize your color
|
|
|
|
|
Size
|
Min. 200x300mm, Max.3300mmx13000mm, custom sizes
|
|
|
|
|
Self explosion rate
|
Can achieve <3/1000(China standard: <1/1000)
|
|
|
|
|
Tolerance
|
Thickness tolerance: within 0.2mm; Dimension tolerance: normally within 1mm
|
|
|
|
|
Certificate
|
CE, ISO, CCC, BS6206, SGCC, SII etc
|
|
|
|
|
Delivery time
|
Around one week, urgently service is available.
|
|
|
|
Features of Laminated Glass:
1.The inner layer of laminated glass has the ability to absorb impact energy and resist penetration. The use of laminated glass minimizes safety hazards caused by breakage.
2.Laminated glass is intrusion-resistant because it is virtually impossible to cut through the thick PVB layer even when the glass is broken.
3.Laminated glass has proven to be an excellent barrier to noise. In the frequency range of 125 Hz to 4000 Hz, the noise reduction index of laminated glass is higher than that of monolithic glass of the same thickness.
4.Laminated glass is very durable and retains its color and strength. It can be used in a variety of architectural and interior design applications such as floor glazing, stairs, balconies, railings, interior paneling and exterior cladding, as well as more traditional windows and doors.
5.Laminated glass can be made flat or curved. They can include annealed glass, tempered glass, heat strengthened glass, wired glass, patterned glass, tinted glass or reflective glass. Inner glass can be used to add tints for further aesthetic and privacy needs. Installation is simple.
Process Service
Shenzhen Sun Global Glass provide quality customize and process service, we welcome to customize you size, color, shape etc, flat and curved shape are all available. The max size we can produce is 3300mmx12000mm, minimum radius we can do is 400mm and maximum arc length is 5000mm. Process service such as edgeworks, drill hole, safety corner ect process can customize according customers.
Shenzhen Sun Global Glass Co., Limited, a professional glass factory, equip with CNC cutting machine, automatic grinding machine, tempered furnace, insulated glass production line, etc advance machines.
Customer Testimonials
Packaging & Shipping
Each glass sheet is separated by high and quality of anti-mildew power.Before packing, each glass sheet must be inspected to.Using brand new, durable, seaworthy plywood case with foam protection inside.Each case will be fasten by metal belt.
Our Team
Our Projects
Sun Global Glass sells processed glass to many countries, and help our customers build famous Projects and Landmarks worldwide.
Certificates
FAQ
Q1:What is your MOQ?
A: Generally speaking, we don't have minimum order quantity, if the quantity is more, we will give you more discount.
Q2: Can you send me some samples to check your quality?
A: Sure, we can send you free samples at any time (except for special deep-processed glass). Courier fee is at your own expense.
Q3:What is your quick production time?
A: It depends on the quantity of architectural glass you need. Usually it takes 7-15 days after drawing confirmation.
Q4: How to make sure the glass will not be broken during transportation?
A: For all glass produced, we pack it into sturdy export plywood crates and use metal straps to pack the crates as securely as possible into the container. The metal straps are as strong as possible. In the unfortunate event that an accident occurs and the glass breaks, we take out a risk insurance policy,Since all the glass in our company is insured, we assume all risks for our customers free of charge.
Question 5: How can I get the best price?
In order to offer you the best price, please provide us with all the following details:
a. What size and thickness of clear float glass/tempered glass/laminated glass do you need?
b. What is the approximate quantity?
c. Are there any special requirements such as drilling, grooving, notching, acid etching, silk-screening?
d. When will this glass be needed?
