Quick Details
-
Model Number:
-
PT110GY-2
-
Engine Type:
-
4-Stroke
-
Fuel:
-
Gas / Diesel
-
Condition:
-
New
-
Type:
-
Racing Motorcycle
-
Displacement:
-
110cc
-
Product Name:
-
Pocket Bike 150cc
-
Color:
-
Optional
-
Displacemen (ml)::
-
107
-
Compression Ratio::
-
9.1:1
-
Max. Power(kw/r/min):
-
5.2/8000
-
Max. Torque (N.m/r/min)::
-
7.2/5000
-
Max. Speed (Km/h)::
-
≥85
-
Lubrication::
-
Pressure ,splash
-
Front Brake::
-
Disc brake
-
Rear Brake::
-
Disc brake
-
Certification:
-
CCC
-
Brake(F/R):
-
Disc/Disc
Quick Details
-
Max. Speed:
-
> 80km/h
-
Brand Name:
-
Pantera
-
Place of Origin:
-
Chongqing, China
-
Model Number:
-
PT110GY-2
-
Engine Type:
-
4-Stroke
-
Fuel:
-
Gas / Diesel
-
Condition:
-
New
-
Type:
-
Racing Motorcycle
-
Displacement:
-
110cc
-
Product Name:
-
Pocket Bike 150cc
-
Color:
-
Optional
-
Displacemen (ml)::
-
107
-
Compression Ratio::
-
9.1:1
-
Max. Power(kw/r/min):
-
5.2/8000
-
Max. Torque (N.m/r/min)::
-
7.2/5000
-
Max. Speed (Km/h)::
-
≥85
-
Lubrication::
-
Pressure ,splash
-
Front Brake::
-
Disc brake
-
Rear Brake::
-
Disc brake
-
Certification:
-
CCC
-
Brake(F/R):
-
Disc/Disc

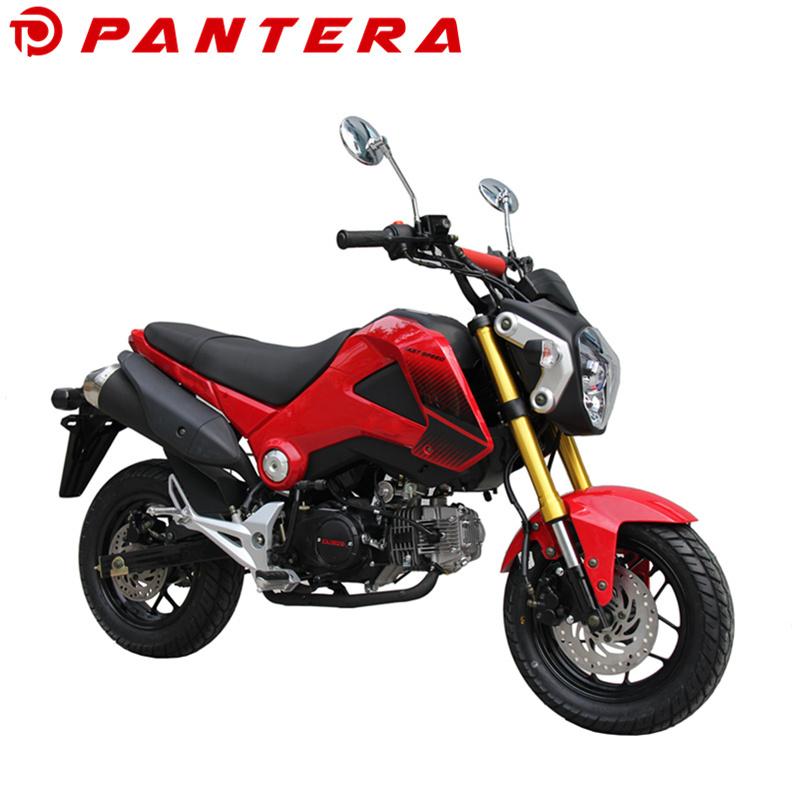

Mini Moto Cool Kids Motorcycle Chinese Racing Pocket Bikes 150cc
Overview
Different Angles
| ENGINE | |
| Engine Type: | Single cylinder,wind-cooled, four stroke |
| Displacemen (ml): | 107 |
| Bore X Stroke (mm): | 52.4x49.5 |
| Compression Ratio: | 9.1:1 |
| Max. Power(kw/r/min) | 5.2/8000 |
| Max. Torque (N.m/r/min): | 7.2/5000 |
| Max. Speed (Km/h): | ≥85 |
| Lubrication: | Pressure ,splash |
| Clutch Type: | Multiplate wet clutch, Manual |
| Ignition: | CDI |
| Starting System: | Electric start |
| Transmission System: | Chain drive |
| CHASSIS | |
| Front Brake: | Disc brake |
| Rear Brake: | Disc brake |
| Front Tire: | 120/70-12 |
| Rear Tire: | 130/70-12 |
| Battery: | 12V/4Ah |
| DIMENSIONS | |
| L X W X H (mm): | 1790*770*1030 |
| Seat Height (mm): | 770 |
| Wheelbase (mm): | 1200 |
| Min. Ground Clearance (mm): | 180 |
| Max. Permissionable Weight (kg): | 150 |
| Rider Capacity: | 1 Person |
| Dry. Weigth (kg): | 91 |
| Engine Oil (L): | 1L SAE15W/40 |
| Fuel Tank Capacity (L): | 6.5L |
| Packing Size (mm): | 1550×460×870 1160×770×330 |
| Container Loading(40HQ): | CBU:111units CKD: 208 sets |
Personal Customization:
1.Front brake:drum brake/disc brake
2.Wheel:spoke wheel/alloy wheel
3.Speedmeter:normal speedmeter/digital speedmeter
4.Displacement can be changed from 50cc to 125cc
5.Color is optional too
Warranty:
We can offer one year warranty or engine 6000kms. And 1% easy-damaging spare parts are provided for free
| easy broken spare parts list: | |
| No. | spare parts name |
| 1 | carburetor |
| 2 | electric parts |
| 3 | headlight assy |
| 4 | meter assy |
| 5 | L. front turning light |
| 6 | R. front truning litht |
| 7 | L. rear turning light |
| 8 | R. raer turning light |
| 9 | tail light assy |
| 10 | front and rear inner tube |
| 11 | rearview mirror |
| 12 | pasoes |
| 13 | chain |
| 14 | handle switch |
| 15 | handle bar |
| 16 | cable |
| 17 | battery |
| 18 | seat |
| 19 | rear shock |
| 20 | footrest |
| 21 | starting arm |
| 22 | gear pedal |
| 23 | muffler |
|
Note: the above spare parts packaged separately, carton packaging, standard mark |
|
SKD steel frame + cartoon or wooden frame
CKD wooden case or cartoon
SKD means semiknocked down and CKD means complete knocked down. They are the different package ways. Both of them will take less import tariffs and frieight than finished product.
