Quick Details
-
Max. Spindle Speed (r.p.m):
-
4200 r.p.m
-
Max. Weight of Workpiece(kg):
-
300
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
500
-
Travel (X Axis)(mm):
-
270 mm
-
Travel (Z Axis)(mm):
-
610 mm
-
Positioning Accuracy (mm):
-
0.011
-
Repeatability (X/Y/Z) (mm):
-
0.02
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
1800*1320*1438
-
Brand Name:
-
GOLDCNC
-
Model Number:
-
TMC-8Y Lathe Mill Combo
-
Voltage:
-
Customer's Requirement
-
Weight (KG):
-
2700
-
Marketing Type:
-
Hot Product Lathe Mill Combo 2024
-
Max.Swing over bed:
-
500
-
Max.cutting diameter:
-
360
-
Max.diameter of rotation on slide:
-
300
-
Standard cutting diameter:
-
240
-
Spindle bore:
-
65
-
Spindle speed range:
-
50~4500
-
Certification:
-
CE,ISO
-
Keyword:
-
slant bed cnc lathe
-
Product name:
-
Lathe And Milling Machine
-
Machine Type:
-
Flat Bed CNC Lathe
Quick Details
-
Type:
-
Horizontal Lathe Mill Combo
-
Max. Length of Workpiece (mm):
-
450
-
Year:
-
2021
-
Max. Spindle Speed (r.p.m):
-
4200 r.p.m
-
Max. Weight of Workpiece(kg):
-
300
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
500
-
Travel (X Axis)(mm):
-
270 mm
-
Travel (Z Axis)(mm):
-
610 mm
-
Positioning Accuracy (mm):
-
0.011
-
Repeatability (X/Y/Z) (mm):
-
0.02
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
1800*1320*1438
-
Brand Name:
-
GOLDCNC
-
Model Number:
-
TMC-8Y Lathe Mill Combo
-
Voltage:
-
Customer's Requirement
-
Weight (KG):
-
2700
-
Marketing Type:
-
Hot Product Lathe Mill Combo 2024
-
Max.Swing over bed:
-
500
-
Max.cutting diameter:
-
360
-
Max.diameter of rotation on slide:
-
300
-
Standard cutting diameter:
-
240
-
Spindle bore:
-
65
-
Spindle speed range:
-
50~4500
-
Certification:
-
CE,ISO
-
Keyword:
-
slant bed cnc lathe
-
Product name:
-
Lathe And Milling Machine
-
Machine Type:
-
Flat Bed CNC Lathe
Product Description

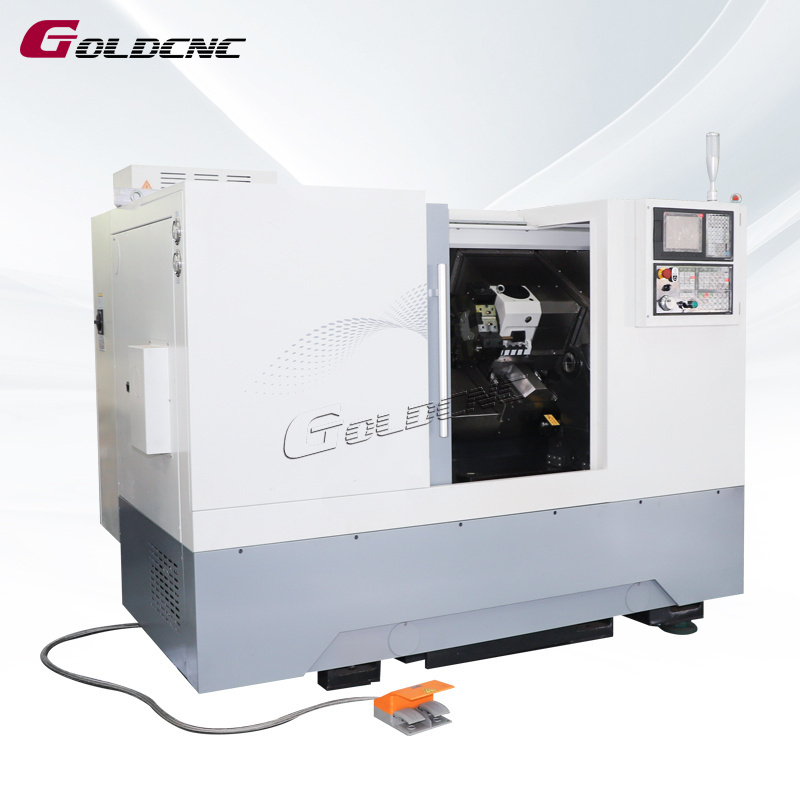

GOLDCNC Y-axis lathes combine Y-axis travel, full C-axis motion, and high-performance live tooling to create versatile done-in-one machining solutions for any shop. Easily perform secondary milling operations on your lathe – such as milling, drilling, and tapping – to boost throughput and increase accuracy.
Product Parameters
|
Specifications
|
|
TMC-8Y
|
|
|
Bed
|
Bed form and inclination
|
Integral/30o
|
|
|
|
Maximum turning diameter of bed
|
Φ650
|
|
|
|
Max Part Swing
|
Φ370
|
|
|
|
Maximum processing length
|
450
|
|
|
Spindle
|
Spindle Nose
|
A2-6
|
|
|
|
Chuck Size
|
8″（203mm）
|
|
|
|
Spindle motor power
|
11KW
|
|
|
|
Spindle Max Speed
|
4200rpm
|
|
|
|
Spindle hole diameter
|
Φ66
|
|
|
|
Bar diameter
|
Φ52
|
|
|
Feed
|
X/Z axis screw specification
|
3210/4010
|
|
|
|
X-axis travel
|
270
|
|
|
|
Shaft motor torque
|
11N.M
|
|
|
|
X/Z axis rail specification
|
45/45
|
|
|
|
Z axis travel
|
610
|
|
|
|
Z axis motor torque
|
11 N.M
|
|
|
|
X/Z axis connection method
|
Direct
|
|
|
C axis
|
C axis indexing
|
360°
|
|
|
Tailstock
|
Socket diameter
|
80
|
|
|
|
Socket travel
|
80
|
|
|
|
Maximum stroke
|
480
|
|
|
|
Sleeve taper
|
Morse 5#
|
|
|
Dimensions
|
L×W×H
|
1800×1320×1438
|
|
|
weight
|
N.W/G.W
|
2500/2700kg
|
|
Detailed Images
About the C axis：
Y-axis is used to mill or drill features that are off the center axis of the primary turned part. There are some
types of features that you can mill or drill without Y-axis such as flats on the end of a shaft using your C axis and an on-center tool. But others require a Y-axis move.
types of features that you can mill or drill without Y-axis such as flats on the end of a shaft using your C axis and an on-center tool. But others require a Y-axis move.
Function of the Y-axis：
Y-axis lathes combine ±1.5″ of Y-axis travel, full C-axis motion, and high-performance live tooling to create versatile
done-in-one machining solutions for any shop. Easily perform secondary milling operations on your lathe – such as off-centermilling, drilling, and tapping – to boost throughput and increase accuracy.
done-in-one machining solutions for any shop. Easily perform secondary milling operations on your lathe – such as off-centermilling, drilling, and tapping – to boost throughput and increase accuracy.
|
STANDARD CONFIGURATION
|
|
|
|
NAME
|
QUANTITY
|
|
|
Fanuc CONTROL SYSTEM
|
1
|
|
|
8-STATION TURRET TOOLS
|
1
|
|
|
CUTTING FLUID COOLING DEVICE
|
1
|
|
|
AUTOMATIC IUBRICATION DEVICE
|
1
|
|
|
OPTIONAL CONFIGURATION
|
|
|
|
NAME
|
CONFIGURATION
|
|
|
FANUC/SIEMENS CONTROL SYSTEM
|
1
|
|
|
12-STAIONS TURRET TOOLS
|
1
|
|
