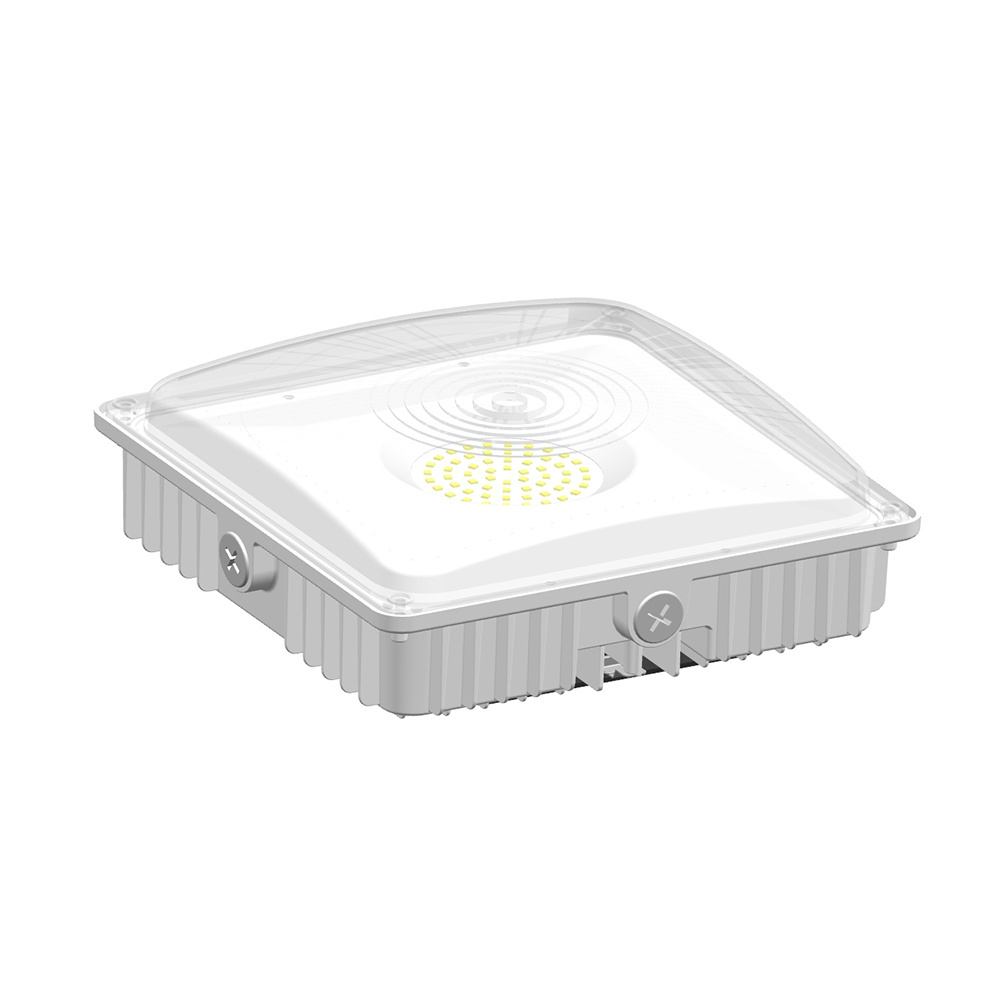

TP-YZD80W001
|
|
|
|
Input Voltage
|
90-277V
|
|
|
Dimesnion
|
245*245*85mm
|
|
|
LED Chips
|
SMD3030/120PCS
|
|
|
Temperature
|
3000K/4000K/5000K/6000K
|
|
|
Lumens
|
12000-13000lm
|
|
|
IP Rating
|
IP65
|
|
|
Packaging
|
510*270*270MM /5pcs
|
|
|
Shelf life
|
5years
|
|
LED Chips
1. High lumens 130LM/W
2. Brand SMD3030 LED chips
3. Reflector improve Lighting efficiency
4. IP65/Wet location in standard
Aluminum Housing
1. Die-Casting Aluminum Housing
2. Integrate housing and Excellent heat dissipation for long LED lifespan
3. Large and broad radiating plate with excellent thermal performance
Slim design
Slim width 95mm(3.7'')
Integrated biilt-in design, easy maintenance
Whole lamp waterproof IP65
Anti-Glare Lens
1. Structure LED array for optimized area lighting distributions
2. 110 degree beam angle
3. UV resistant, not need to worry discolor
|
Model
|
TP-YZD40W001
|
TP-YZD60W001
|
TP-YZD80W001
|
|
Power
|
40W
|
60W
|
80W
|
|
Input voltage
|
90-277VAC
|
90-277VAC
|
90-277VAC
|
|
LED Chips
|
SMD3030/48PCS
|
SMD3030/72PCS
|
SMD3030/96PCS
|
|
Luminous
|
5200LM
|
7800LM
|
10400LM
|
|
Color Temperature
|
3000-6500K
|
3000-6500K
|
3000-6500K
|
|
Dimension
|
260*260*75mm
|
260*260*75mm
|
260*260*75mm
|
|
Model
|
TP-YZD100W001
|
TP-YZD120W001
|
TP-YZD150W001
|
|
Power
|
100W
|
120W
|
150W
|
|
Input voltage
|
90-277VAC
|
90-277VAC
|
90-277VAC
|
|
LED Chips
|
SMD3030/120PCS
|
SMD3030/150PCS
|
SMD3030/180PCS
|
|
Luminous
|
13000LM
|
15600LM
|
19500LM
|
|
Color Temperature
|
3000-6500K
|
3000-6500K
|
3000-6500K
|
|
Dimension
|
315*315*95mm
|
315*315*95mm
|
315*315*95mm
|
Notes
* Do cut off electrical source in order to avoid electrical shock and endanger life-safety before installation.
* Install height from floor higher than1.2m.
* ELECTRICAL CONNECTIONS-100-240V/277V AC, 50/60HZ
* PHASE TO NEUTRAL WIRING
