Quick Details
-
Model Number:
-
125.250.300.500.700
-
Material:
-
pp ,pe ptfe, pvdf or as your request
-
Product name:
-
PP Structured regular packing
-
Application:
-
Column, rectifying tower, chemical ,natural gas dry
-
Type:
-
125. 250.350. 500.700XY
-
MOQ:
-
one cubic meter
-
Color:
-
White, black or as your request
-
Quality:
-
Superior
-
Package:
-
Pallet
-
Certification:
-
ISO
-
Shape:
-
Cylinder
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
ZX
-
Model Number:
-
125.250.300.500.700
-
Material:
-
pp ,pe ptfe, pvdf or as your request
-
Product name:
-
PP Structured regular packing
-
Application:
-
Column, rectifying tower, chemical ,natural gas dry
-
Type:
-
125. 250.350. 500.700XY
-
MOQ:
-
one cubic meter
-
Color:
-
White, black or as your request
-
Quality:
-
Superior
-
Package:
-
Pallet
-
Certification:
-
ISO
-
Shape:
-
Cylinder
Product Overview

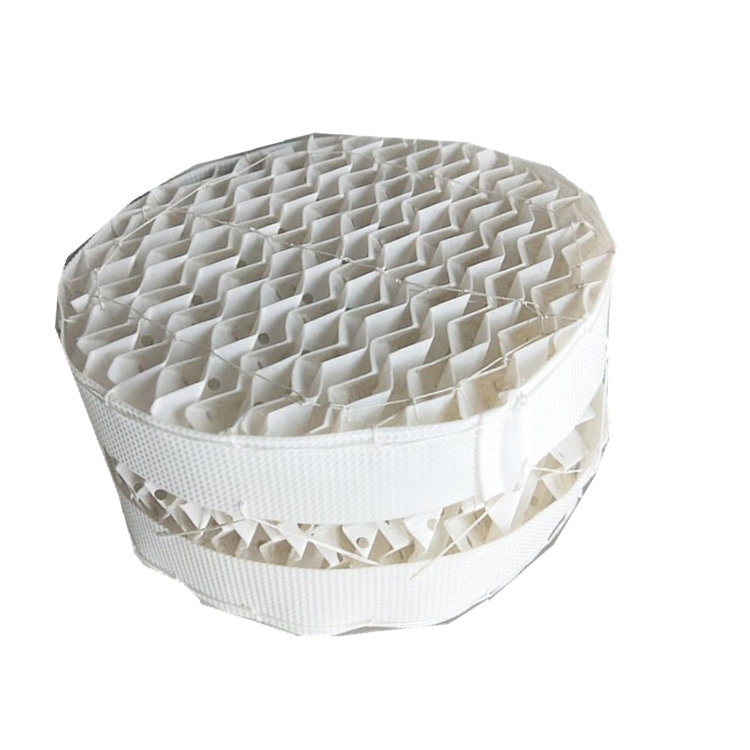

700Y RPP PTFE PVDF PP Structured regular packing Gas-liquid purification desulfurization tower structure packing
Plastic structured packing can be made of PP, PA, PVDF, CPVC and other plastic materials, which has excellent high temperature resistance performance and corrosion resistance performance.
It is also called Plastic Gauze packing. Due to its structure , it will largely improve packing's wettability and sustain high
mass transfer efficiency under small liquid spray density.
mass transfer efficiency under small liquid spray density.
* Corrosive liquid : PTFE is having excellent chemical resistance to a large no of chemical suitable up to 180º c.
* Vacuum Distillation : For component which are thermally unstable & required low temp. & high vacuum i.e. low pressure drop to
reduce degradation.
* Atmospheric operations : Where a large number of theoretical stages are required i.e. in separation of isomeric compound.
* Energy conservation : With the high face contact efficiency, packing used to reduce reflux requirements and increase purity
and production.
* Increased product purity : Can be achieved due to efficient distribution system and eternal more equilibrium stages from same
size column.
* Vacuum Distillation : For component which are thermally unstable & required low temp. & high vacuum i.e. low pressure drop to
reduce degradation.
* Atmospheric operations : Where a large number of theoretical stages are required i.e. in separation of isomeric compound.
* Energy conservation : With the high face contact efficiency, packing used to reduce reflux requirements and increase purity
and production.
* Increased product purity : Can be achieved due to efficient distribution system and eternal more equilibrium stages from same
size column.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
No
|
Item
|
X type
|
|
|
||
|
|
|
125X
|
250X
|
350X
|
||
|
1
|
Peak heighth/mm
|
22+-0.5
|
11+-0.4
|
8+-0.3
|
||
|
2
|
Wave pitch 2B/mm
|
42+-0.5
|
22+-0.4
|
16+-0.3
|
||
|
3
|
Dig angle B degree
|
30+-1
|
30+-1
|
45+-1
|
||
|
4
|
Profile angle B degree
|
88+-1
|
90+-1
|
90+-1
|
||
|
Type
|
Surface area m2/m3
|
Bulk density kg/m3
|
Theoretical plate number m-1
|
Pressure Drop
|
|
125Y
|
125
|
37.5
|
1.0-2.0
|
200
|
|
125X
|
|
|
0.8-0.9
|
140
|
|
250Y
|
250
|
75
|
2.0-2.5
|
300
|
|
250X
|
|
|
1.5-2.0
|
180
|
|
350Y
|
350
|
105
|
3.5-4.0
|
200
|
|
350X
|
|
|
2.3-2.8
|
130
|
|
500Y
|
500
|
150
|
4.0-4.5
|
300
|
|
500X
|
|
|
2.8-3.2
|
180
|
PRODUCT CONFIGURATION
Manufacturing Technique
Successful Project
SIMILAR PRODUCTS
FAQ
Q1：What's your MOQ?
A1：Our MOQ is no less than one cubic meter
Q2: What's your available material?
A2: Our available material can do PP ,PE, PPH, PVDF, PTFE,also customized material can do
Q3:What's your available size?
A3: We can produce different size according to your packed bed
Q4: What's your standard package?
A4: Our export standard package is pallet or wooden case
Q5: What's your delivery time?
A5: Generally speaking, we will delivery all within 15 days .
For more details, please contact with our sales.
