LPG-300 web tension control system for mask machine

LPG-300 web tension control system for mask machine

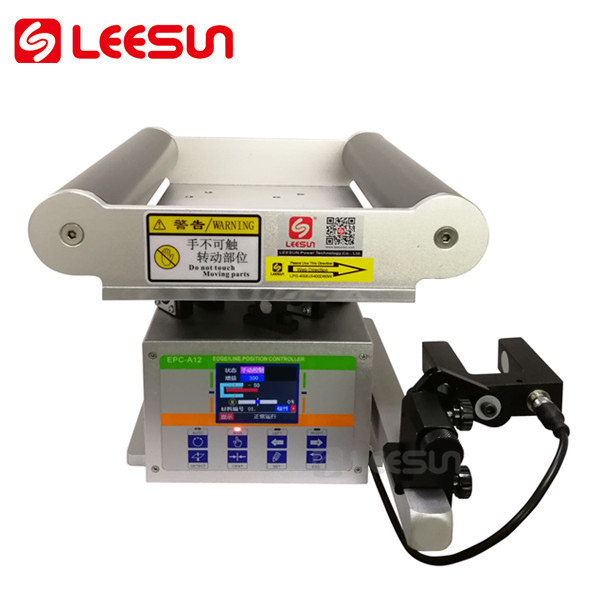

The complete set of Web guide system Product Overview:

Our Newly developed all-in-one web guide controller is applied to accurate correct the narrow range of materials.

Especially for label printing, packaging and non-woven industries. All-in-one web guiding controller is with compact design,

easy installation and saving space. Controller, driver and detector are integrated which help user to increase high efficiency during installation and debugging.

This web guide system can be used for Intermeaiate Guide Roller System,like Picture 2.

Web guide system Product Features:

1:Suppor t three operation modes: edge-following, line-following and center-alignment

2: Automatic travel measurement, no need to limit the switch mechanically.

3: No overshot integral variable PI algorithm, high accuracy, fast reaction and less error

4 : 0.5msec super-speed of responding

5: Speed of driving: 14mm/s~40mm/s,Thrust 100kg~800kg, maximum thrust 1.0T~8T of rack

6: Analog quantity transducer signal 12bit AD sampling, 700,000 times of sampling per second

7: Adopt FIR digital filter and return difference filter, stronger anti-interference capability and more stable signal

8 : DC ser vo motor to push the ball screw

9: Power-down memor y of all the parameters at any states in the system

10: Store 10 groups of parameters from different material, convenient and efficient switchover of material

11:Simplified Chinese/ Traditional Chinese /English for menu operation

12:Humanized operation, fast, simple and convenient

13:Suppor t Modbus and PLC/Human-computer networking control

Technical parameters:

Power supply	DC24V~45V, stand 36V
CPU Processor	32-bit CPU main Frequency>72M
Rectification Algorithm	No Overshot Integral Variable PI Algorithm
Analog input	3 channel 0 ~ 6V, impedance 20K
Sensor voltage	DC12V ,350mA Max
Response time	0.5ms
Analog input resolution	12 bit ADC
Switch contacts input	3 channel NPN
Web control mode	EPC, LPC, CPC, SPC
Support the sensor type	Ultrasonic sensors, photo sensor, CCD sensor
Actuator speed	14mm / s ~ 40mm / s can adjust
Actuator thrust	100Kgf/200Kgf / 400Kgf/800Kgf
ESD protective	IEC1000 - 4 - 2 ,± 15KV ( Air ) ,± 8KV ( Contact )
Screen display	2.8",260K colors TFT
Motor drive	Brushless DC servo motor to drive
Levels of protection	Ip53
