Quick Details
-
Interface Standard:
-
CCS 1/CCS 2/CHAdeMO/GB/T
-
Output Current:
-
DC
-
Output Power:
-
14KW/20KW/30KW/40KW
-
Input Voltage:
-
260-475V
-
Product name:
-
Portable DC EV Charge
-
Application:
-
Charging Electric Car Charging
-
Certificate:
-
CE REACH FCC RoHS
-
Warranty:
-
2 Years
-
Cable length:
-
5 Meters, support custom
-
IP Grade:
-
IP 44
-
Function:
-
Energy Vehicle Charging
-
Advantage:
-
APP Control RFID Card Optional
-
Communication:
-
GBT27930 / CHADEMO 20 DIN 70121,0CPP 1.6 (SON ),SO 15118
-
MOQ:
-
1piece
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
GBT CFX14750/CFX20750/CFX30750/CFX40750
-
Brand Name:
-
CF
-
Interface Standard:
-
CCS 1/CCS 2/CHAdeMO/GB/T
-
Output Current:
-
DC
-
Output Power:
-
14KW/20KW/30KW/40KW
-
Input Voltage:
-
260-475V
-
Product name:
-
Portable DC EV Charge
-
Application:
-
Charging Electric Car Charging
-
Certificate:
-
CE REACH FCC RoHS
-
Warranty:
-
2 Years
-
Cable length:
-
5 Meters, support custom
-
IP Grade:
-
IP 44
-
Function:
-
Energy Vehicle Charging
-
Advantage:
-
APP Control RFID Card Optional
-
Communication:
-
GBT27930 / CHADEMO 20 DIN 70121,0CPP 1.6 (SON ),SO 15118
-
MOQ:
-
1piece
Recommend Products
Product Description

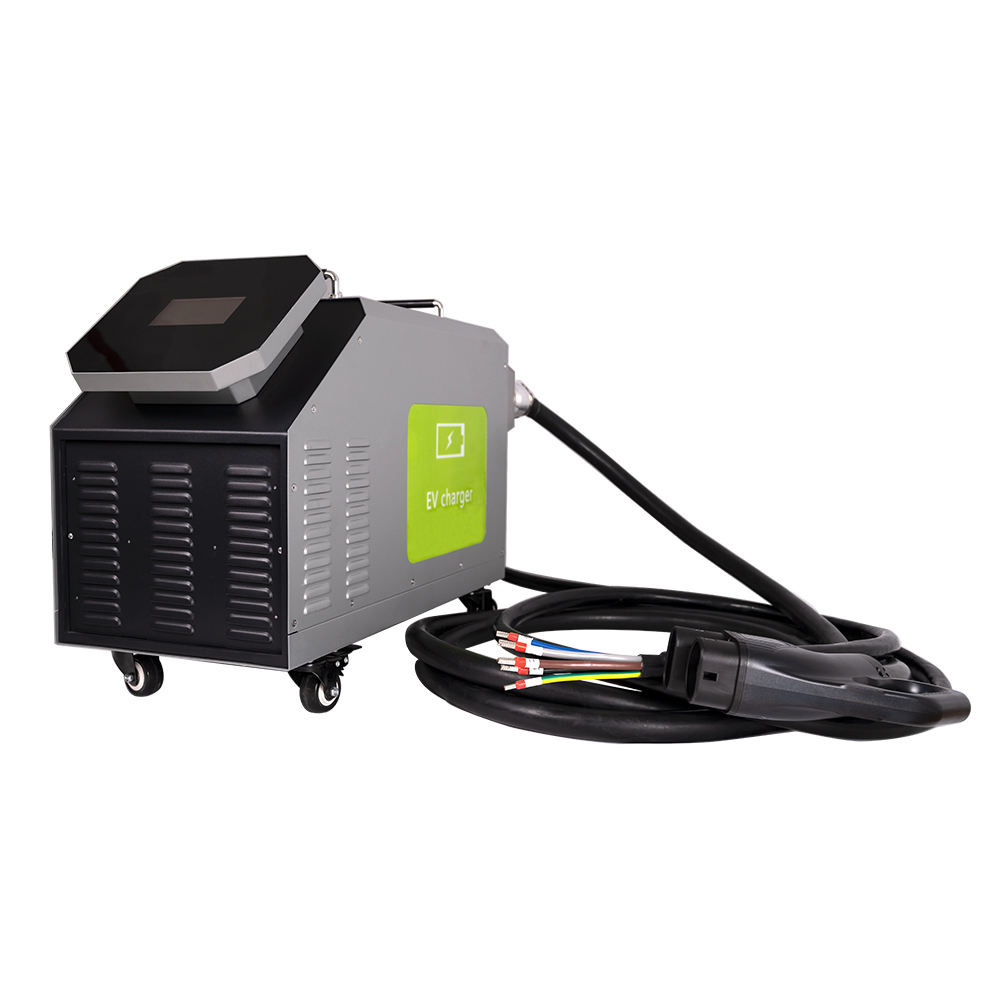

Champion 7kw-40kw Fast Portable 3 in 1 Smart DC charging station GBT CCS2 Movable BYD EV Car charger with OCPP
Product Parameters
|
Product Parameters
|
|
|
|
|
||||
|
Model
|
FCX14750E/A/J
|
FCX20750E/A/J
|
FCX30750E/A/J
|
FCX40750E/A/J
|
||||
|
Input characteristics
|
|
|
|
|
||||
|
Voltage range
|
AC380V±15%
|
|
|
|
||||
|
Working Frequency
|
45-65HZ
|
|
|
|
||||
|
Power Factor
|
≥0.99
|
|
|
|
||||
|
Input Current
|
25A
|
32A
|
45A
|
64A
|
||||
|
Output characteristics
|
|
|
|
|
||||
|
Output Power
|
14KW
|
20KW
|
30KW
|
40KW
|
||||
|
Voltage range
|
200-750VDC
|
|
|
|
||||
|
Max Current
|
25A/37A
|
33A/60A
|
50A/100A
|
66A/120A
|
||||
|
Work environment
|
|
|
|
|
||||
|
Temperature range
|
-40~85℃；25℃(type)；Intelligent derating when shell temperature
exceeds 70℃ |
|
|
|
||||
|
Humidity range
|
5~90RH%；non-condensation
|
|
|
|
||||
|
Altitude
|
2000M
|
|
|
|
||||
|
Storage environment
|
|
|
|
|
||||
|
Temperature range
|
-20~50℃；25℃（type)
|
|
|
|
||||
|
Humidity range
|
5~95RH%；25RH%(type)；non-condensation
|
|
|
|
||||
|
Altitude
|
2000M
|
|
|
|
||||
|
Dimensions and protection
|
|
|
|
|
||||
|
Single size(mm)
|
635mm*295mm*500mm（Excluding head, handle and casters）
|
|
|
|
||||
|
Packing size(mm)
|
800mm*600mm*500mm
|
|
|
|
||||
|
Carton
packing/weight |
Net：25KG
Gross：30KG |
Net：30KG
Gross：35KG |
Net：45 KG
Gross：50 KG |
Net：60 KG
Gross：65KG |
||||
|
IP Level
|
IP54
|
|
|
|
||||
|
Others
|
|
|
|
|
||||
|
Human Machine Interface
|
4.3 inch color touch screen +IC card contactless card reader
|
|
|
|
||||
|
Networking
|
Standard：CAN/485/Lan , Optional：GPRS/4G
|
|
|
|
||||
|
Charging mode
|
Swipe card, APP, manual
|
|
|
|
||||
|
Standard
|
EN61851-1,JEVSG 105
|
|
|
|
||||
|
Protocol
|
CHAdeMO 2.0/DIN 70121, OCPP 1.6(JSON or SOAP), ISO 15118
|
|
|
|
||||
DC EV Charging, we also support 30KW,60KW,120KW,180KW,240KW.
One port charging gun and double charging gun.
Products Details
The Charging piles are widely used in Residential, Wokeplace Business, Gas Station, High-speed Service Station, Parking Lot, Household.
Our EV car chargers have been sold to over 40 countries , such as Germany, India, USA, Canada, Netherlands, Switzerland, India, Slovakia, Bolivia, Argentina, Netherlands, Switzerland etc.
