1. High intensity
2. Excellent flexibility
3. Corrosion resistant
4. Strongly resistant to the storm
5. Long service life
6. Sufficient aquaculture water volume with high efficiency and low comprehensive cost
7. Less pollution and high-grade aquaculture water resulted in the perfect quality of the fish products, the desirable benefits
and returns.
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
HDPE
-
Diameter:
-
3m
-
Shape:
-
Square
-
Fish cage Frame System Material:
-
Hdpe 100
-
Fish Cage Net:
-
Knotted and knotless net
-
Fish cage Perimeter:
-
16-100meters
-
Anti-Windstorm capacity:
-
Max Grade 11
-
Ability of anti-wave:
-
Max wave high of 5m in the water
-
Anti-flow capability:
-
Max flow rate of 1.5m/s
-
Installation Service:
-
Available
-
Szie:
-
customizable
-
Product name:
-
hdpe square fry holding cages
-
MOQ:
-
10pcs
-
Place of Origin:
-
China
Quick Details
-
Use:
-
Fish
-
Brand Name:
-
DRD
-
Model Number:
-
S-001
-
Material:
-
HDPE
-
Diameter:
-
3m
-
Shape:
-
Square
-
Fish cage Frame System Material:
-
Hdpe 100
-
Fish Cage Net:
-
Knotted and knotless net
-
Fish cage Perimeter:
-
16-100meters
-
Anti-Windstorm capacity:
-
Max Grade 11
-
Ability of anti-wave:
-
Max wave high of 5m in the water
-
Anti-flow capability:
-
Max flow rate of 1.5m/s
-
Installation Service:
-
Available
-
Szie:
-
customizable
-
Product name:
-
hdpe square fry holding cages
-
MOQ:
-
10pcs
-
Place of Origin:
-
China
Product Description
Lake/river Floating Fish Farm Cage Culture Lobster Traps Fishing Cage
Material：HDPE 100
Advantage：
1. Wide range of applications, it can be set in the depth of water from -6m to 50m.
2. Strong ability of wind resistance
3. Aquaculture capacity,the living space and growing space are large.
4. The cage has a long life, the cage frame can be used over 15 years.
5. The net can be replaced easily.
6. Material is a marine special HDPE pipe,which is high strength,high toughness,anti-oxidant and anti-aging
2. Strong ability of wind resistance
3. Aquaculture capacity,the living space and growing space are large.
4. The cage has a long life, the cage frame can be used over 15 years.
5. The net can be replaced easily.
6. Material is a marine special HDPE pipe,which is high strength,high toughness,anti-oxidant and anti-aging
Location：River/dam/lake/lagoon/pool
Advantage of HDPE material:
fish cage farming seabass
Fishing Net：
fish cage farming seabass
1. Material:100% HDPE or PE Material.
2. Knot: Knotless
3. Thickness:160D/3ply-up, 190D/3ply-up, 210D/3ply-up or AS your requirements
4. Mesh Size: 10mm to 700mm.
5. Depth: As your request
6. Length: As your request
7. Selvage: SSTB or DSTB
8. Colour: green or black or as request
The above data is just for your reference, we can supply you the fishing nets as your requirements.
1. Material:100% HDPE or PE Material.
2. Knot: Knotless
3. Thickness:160D/3ply-up, 190D/3ply-up, 210D/3ply-up or AS your requirements
4. Mesh Size: 10mm to 700mm.
5. Depth: As your request
6. Length: As your request
7. Selvage: SSTB or DSTB
8. Colour: green or black or as request
The above data is just for your reference, we can supply you the fishing nets as your requirements.

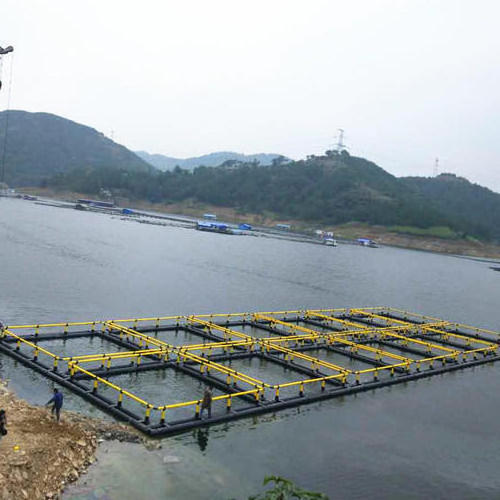

HDPE Square Cage
Using the most modern maintenance free materials,HDPE square cage ideally suited as fry holding cages or for mobile harvest cages. The secret of it’s strength lies in the research of the fittings which are used to make the corners unlike most other square cages on the market which unfitable and easy destroied, our cage is able to withstand substantial wave climates.
Production of floating pipe and fishing net
Fishing net production：
fish cage farming seabass
Cases
Specification
|
HDPE Square Floating cage frame specifications
|
|
|
|
|
|
|||||
|
Length*Width(m)
|
Diameter of the Floating Pipe(mm)
|
Diameter of the Handrial Pipe(mm)
|
Diameter of the Stand Pipe(mm)
|
Hole Diameter of the Bracket(mm)
|
Distance of the Brackets(m)
|
|||||
|
2*2
|
200
|
90
|
110
|
200
|
2.0
|
|||||
|
3*3
|
200/250
|
90/110
|
110/125
|
200/250
|
2.0
|
|||||
|
4*4
|
200/250
|
90/110
|
110/125
|
200/250
|
2.0
|
|||||
|
5*5
|
200/250
|
90/110
|
110/125
|
200/250
|
2.0
|
|||||
|
6*6
|
200/250
|
90/110
|
110/125
|
200/250
|
2.0
|
|||||
|
7*7
|
250/300
|
110
|
125
|
250/300
|
2.0
|
|||||
|
8*8
|
300/350
|
110
|
125
|
300/350
|
2.0
|
|||||
|
9*9
|
300/350
|
110/125
|
125/--
|
300/350
|
2.0/2.5
|
|||||
|
10*10
|
300/350
|
110/125
|
125/--
|
300/350
|
2.0/2.5
|
|||||
|
12*12
|
300/350
|
110/125
|
125/--
|
350/400
|
2.0/2.5
|
|||||
|
15*15
|
350/400
|
125
|
125/--
|
350/400
|
2.5
|
|||||
|
20*20
|
450/500
|
140/160
|
125/--
|
450/500
|
2.5/3.0
|
|||||
|
30*30
|
500/600
|
160
|
125/--
|
500/600
|
3.0/3.5
|
|||||
Installation Instructions
fish cage farming seabass
Our considerate service will guarantee you no worries from inquiry till using：
*Details instruction available
*Training how to instal Fish Cage, training how to use the machine
* Engineers available to solve problems after using.
*Training how to instal Fish Cage, training how to use the machine
* Engineers available to solve problems after using.
* Video support for free
