Meter with Mechnical register, air aliminator and strainer
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
station
-
Model Number:
-
FMC-50
-
Size:
-
50mm/2"
-
Flow Rate Range(L/min):
-
38-380
-
Medium:
-
Fuel oil
-
Product packaging size:
-
59*34*57cm
-
Gross weight (kg):
-
57kg
-
Standard packaging:
-
1pcs/Wooden case
-
MOQ:
-
1 Piece
-
Max Working Pressure:
-
10Bar/150PSI
-
Repeatability:
-
0.07%
Quick Details
-
Type:
-
Variable Area Oil Flowmeters
-
Warranty:
-
6 months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
station
-
Model Number:
-
FMC-50
-
Size:
-
50mm/2"
-
Flow Rate Range(L/min):
-
38-380
-
Medium:
-
Fuel oil
-
Product packaging size:
-
59*34*57cm
-
Gross weight (kg):
-
57kg
-
Standard packaging:
-
1pcs/Wooden case
-
MOQ:
-
1 Piece
-
Max Working Pressure:
-
10Bar/150PSI
-
Repeatability:
-
0.07%

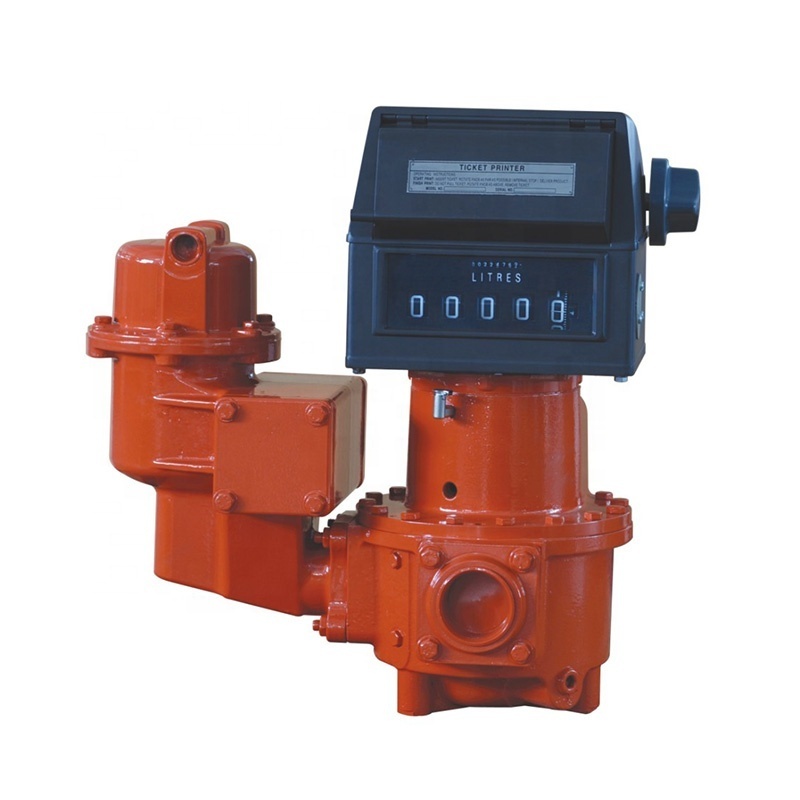

FMC-50 FMC PD Rotary Vane Positive Petroleum Flow Meter
Products Description
FMC-50
FMC Series PD rotary vane meters are single case, angle-type, rotary vane, positive displacement meters.
Superior accuracy and a wide range of products from gasoline to kerosene to fuel oils can be metered.
Compact, versatile design can be readily fit into nearly all installations.
Low pressure loss, a true gravity flow meter.
Long service life, low friction ball bearings, fixed cam-type shaft construction give sustained accuracy and long time operation.
Technical Parameters
|
Technical Specification
|
|
|
|
|||
|
Model
|
FMC-50
|
FMC-80
|
FMC-100
|
|||
|
Size
|
50mm/2"
|
80mm/3"
|
100mm/4"
|
|||
|
Flow Rate Range
|
38-380L/min
|
75-750L/min
|
150-1500L/min
|
|||
|
Max. Working Pressure
|
10Bar/150PSI
|
|
|
|||
|
Accuracy
|
±0.2%
|
|
|
|||
|
Repeatability
|
≤0.07%
|
|
|
|||
Customer Picture
Related Products
Packaging & Shipping
|
Package Data
|
|
|
|
|||
|
Model
|
FMC-50
|
FMC-80
|
FMC-100
|
|||
|
Size
|
50mm/2"
|
80mm/3"
|
100mm/4"
|
|||
|
Dimension
|
62*37*60cm
|
73*43*61cm
|
86*49*68cm
|
|||
|
Weight
|
60kg
|
73cm
|
99kg
|
|||
|
Package
|
1 PCS/Wooden case
|
|
|
|||
