Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2700*2150*2300mm
-
Application:
-
wood cutting, wood cutting
-
Weight (KG):
-
2000 KG
-
Max.Working Width(mm):
-
650mm
-
Applicable Industries:
-
woodworking industry
-
Name:
-

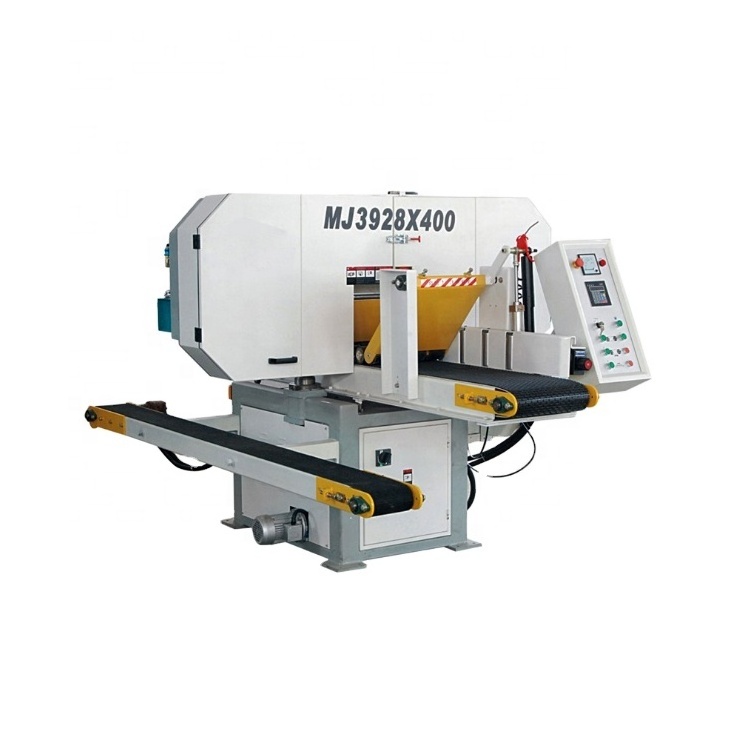

Double wheel horizontal wood band saw with hydraulic motor
-
Keyword:
-
wood cutting band saw
-
Service:
-
oversea
-
Color:
-
Customer Actual Requirements
-
Saw wheel diameter:
-
711mm
-
Other name:
-
Band saw
-
Motor Power:
-
15kw
-
Power:
-
22kw
-
After Warranty Service:
-
Field maintenance and repair service
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
zzchryso
-
Usage:
-
woodworking
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2700*2150*2300mm
-
Application:
-
wood cutting, wood cutting
-
Weight (KG):
-
2000 KG
-
Max.Working Width(mm):
-
650mm
-
Applicable Industries:
-
woodworking industry
-
Name:
-
Double wheel horizontal wood band saw with hydraulic motor
-
Keyword:
-
wood cutting band saw
-
Service:
-
oversea
-
Color:
-
Customer Actual Requirements
-
Saw wheel diameter:
-
711mm
-
Other name:
-
Band saw
-
Motor Power:
-
15kw
-
Power:
-
22kw
-
After Warranty Service:
-
Field maintenance and repair service
Product Description
Horizontal band saw is main for variety of wood ,puzzle ,thick plate open processing board, solid wood flooring and other
decorative veneer panels.
Horizontal band resaw machine is designed for Solid wood sawing. aim at cutting wood panel from the original wooden pillar to make the beautiful and smooth wood panel.
decorative veneer panels.
Horizontal band resaw machine is designed for Solid wood sawing. aim at cutting wood panel from the original wooden pillar to make the beautiful and smooth wood panel.
Specification
|
Model
|
300
|
400
|
650
|
|
Max Cutting size(mm)
|
300*300
|
400*300
|
650*300
|
|
The distance of blade to
the workbench (mm) |
3-200
|
3-200
|
3-200
|
|
Conveyor belt width(mm)
|
285
|
380
|
650
|
|
Saw wheel diameter(mm)
|
711
|
711
|
711
|
|
Feed speed(m/min)
|
0-18
|
0-18
|
0-18
|
|
Saw wheel lifting motor(kw)
|
0.18
|
0.18
|
0.18
|
|
Saw wheel motor(kw)
|
15
|
18.5
|
22
|
|
The hydraulic pressure(kg/cm³)
|
55
|
55
|
55
|
|
Dust tube diameter(mm)
|
102*2
|
102*2
|
102*2
|
|
Saw blade size (L*W*T)mm
|
4572*27*0.9
4572*41*1.27
|
4572*27*0.9
4572*41*1.27
|
4572*27*0.9
4572*41*1.27 |
|
Saw the road(mm)
|
1.2-2.2
|
1.2-2.2
|
1.2-2.2
|
|
Overall dimensions(mm)
|
2700*2100*1850
|
2700*2200*1850
|
2700*2300*1850
|
|
Net weight(kg)
|
1600
|
1700
|
1800
|
Feature
1. Human oriented micro computer operator interfaces, for easy and convenience operating.
2. Sawing width is controlled by the combine use of rotary high precise encoder and rigid ball screwod, to provide higher
accuracy.
3. Use asisted reefed system, save time, save labor and free from worry.
4. PLC intergrated controlsystem, save and reliable.
5. Hydraulic saw blade tension auto-compensation system ensure the saw blade is always staying a bes tension status and provides a longer service life.
6. The conveyer belt is driven by hydraulic motor, which provides steady operation, constant and powerful driving force, so as to ensure the workpiece is smooth.
7. Thickness tolerance 0.1mm-0.2mm, no gap between interface.
8. Saw route in 1.5-1.8mm, 20% save compared with other cutting methods, effectively reduce costs.
9. All ready-to-ship machines inspected by overseas dept. staff indepedently with detail photo and video to customers. We are trying all the best to insure your worry-free on both purchasing and running of all our machines.
2. Sawing width is controlled by the combine use of rotary high precise encoder and rigid ball screwod, to provide higher
accuracy.
3. Use asisted reefed system, save time, save labor and free from worry.
4. PLC intergrated controlsystem, save and reliable.
5. Hydraulic saw blade tension auto-compensation system ensure the saw blade is always staying a bes tension status and provides a longer service life.
6. The conveyer belt is driven by hydraulic motor, which provides steady operation, constant and powerful driving force, so as to ensure the workpiece is smooth.
7. Thickness tolerance 0.1mm-0.2mm, no gap between interface.
8. Saw route in 1.5-1.8mm, 20% save compared with other cutting methods, effectively reduce costs.
9. All ready-to-ship machines inspected by overseas dept. staff indepedently with detail photo and video to customers. We are trying all the best to insure your worry-free on both purchasing and running of all our machines.
