Quick Details
-
Control system:
-
Taiwan Syntec Controller
-
Function:
-
Cutting Engraving Non-metal Materials
-
Working area:
-
3000*5000mm*1100
-
Spindle power:
-
10KW Germany DMASS spindle
-
Working table:
-
Vacuum Table + Tslot
-
Spindle speed:
-
0-24000r/min
-
Driving system:
-
Japan Servo Yaskawa Driver
-
Linear guide:
-
20#Taiwan Linear Guide
-
Spindle:
-
Air Cooling Spindle
-
Feature:
-
Economic
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
otomic
-
Weight (KG):
-
1500 KG
-
Control system:
-
Taiwan Syntec Controller
-
Function:
-
Cutting Engraving Non-metal Materials
-
Working area:
-
3000*5000mm*1100
-
Spindle power:
-
10KW Germany DMASS spindle
-
Working table:
-
Vacuum Table + Tslot
-
Spindle speed:
-
0-24000r/min
-
Driving system:
-
Japan Servo Yaskawa Driver
-
Linear guide:
-
20#Taiwan Linear Guide
-
Spindle:
-
Air Cooling Spindle
-
Feature:
-
Economic
Product Description

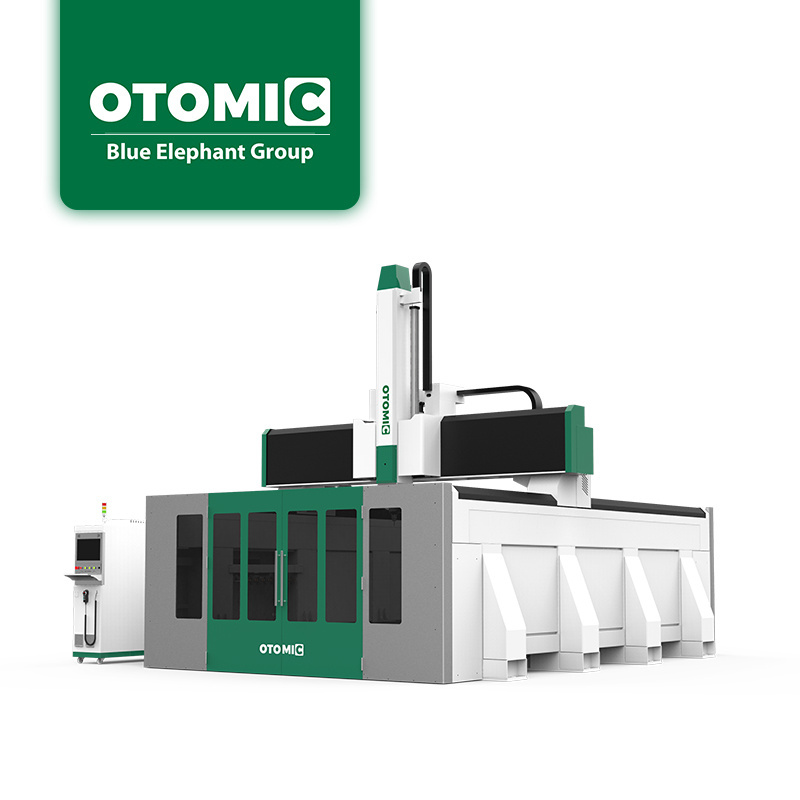

CE certificated 5 Axis CNC Router Woodworking Machining Center automatic eps foam carving machine for hard mold for sale
The heavy-duty 5 axis CNC machining center can realize multiple complex and heavy-duty processes. It adopts the moving gantry and fixed worktable structure, ensuring great flexibility and wide processing range.
2. It reduces repeated clamping and tooling time, which greatly shortens product development cycle and improves work efficiency.
3. Equipped with a linear tool changer, it can change tools automatically and achieve multiple machining processes.
4. Adopting the T-slot working table, it can use the clips to fix the small-scale materials, which can save the vacuum pump electricity.
5. It can process multiple materials, such as stone, styrofoam, wood, aluminum, etc.
Product Details
Carousel automatic tool changer
Equipped with carousel automatic tool changer, it can greatly improve the production efficiency.
Control system
With FANUC control system, high machining accuracy and high performance.
Frame and gantry
Heavy duty welded steel frame and gantry can be for maximum straightness and rigidity.
Servo motors
Japan YASKAWA Servo motors & drivers from Japan, which ensures the machine's stronger strength and high accuracy.
T-slot table and aluminum table
Adopting the T-slot working table, it can use the clips to fix the small-scale materials, which can save the vacuum pump
electricity.
Water cooling spindle
Water cooling spindle from Italy, with strong cutting ability, low noise, it can ensure the machine working for long time.
Technical Parameters
|
Model
|
ELECNC-3050
|
|
X,Y axis travel
|
3000x5000mm, option: 1300*2500mm; 1500*3000mm; 2000*3000mm, etc
|
|
Z axis travel
|
1100mm
|
|
Spindle type
|
10KW Germany DMASS spindle
|
|
Inverter type
|
15kw
|
|
Drilling bank
|
Taiwan or Italy 5+4 vertical drills
|
|
Tool magazine
|
Carousel type auto tool changer
|
|
Tool holder with collet
|
HSK tool holder
|
|
Control system
|
Syntec 610MA-E5
|
|
Driving system
|
1800W Japan YASKAWA servo motor and driver
|
|
Reducer
|
Japan SHIMPO reducer
|
|
Machine structure
|
Heavy duty body with quenching treatment
|
|
Work table
|
Aluminum T-slot & vacuum work table
|
|
Positioning cylinder
|
5 pieces (X2,Y3)
|
|
Linear guide
|
Taiwan #35 Linear guide with dust proof
|
|
Transmission
|
X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw
|
|
Lubrication system
|
Semi-auto lubrication system
|
|
Tool calibration
|
Automatic tool sensor calibration
|
|
Cables
|
Germany Igus cables with CE, cUL certificate
|
|
Compatible software
|
Customized professional 5 axis software
|
|
Command language
|
G Code & M Code
|
|
Traveling speed
|
80m/min
|
|
Working speed
|
0-25m/min
|
|
Working air pressure
|
0.6MPa
|
|
Working voltage
|
380V 3PH 50HZ/ 60HZ
|
