Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Evangel
-
Weight:
-
30000 kg
-
Dimension(L*W*H):
-
11250mmX3180mmX3820mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Tractive effort f=0.75:
-
165kN
-
Maximum gradeability:
-
25%
-
Tire inflation pressure:
-
320kPa
-
Working system pressure:
-
25MPa
Quick Details
-
Forward Speed(km/h):
-
36
-
Engine Brand:
-
Famous brand
-
Reverse Speed(km/h):
-
12
-
Place of Origin:
-
China
-
Brand Name:
-
Evangel
-
Weight:
-
30000 kg
-
Dimension(L*W*H):
-
11250mmX3180mmX3820mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Tractive effort f=0.75:
-
165kN
-
Maximum gradeability:
-
25%
-
Tire inflation pressure:
-
320kPa
-
Working system pressure:
-
25MPa
Contact Way
Nil Xie
TEL /WHATSAPP/WECHAT: +86-19526204231
E-mail: nil@evangelchina.com
Company location: 2102 Gubei International Fortune Center, No.1438 Hongqiao Road, 201103, Shanghai, China
E-mail: nil@evangelchina.com
Company location: 2102 Gubei International Fortune Center, No.1438 Hongqiao Road, 201103, Shanghai, China
Products Description

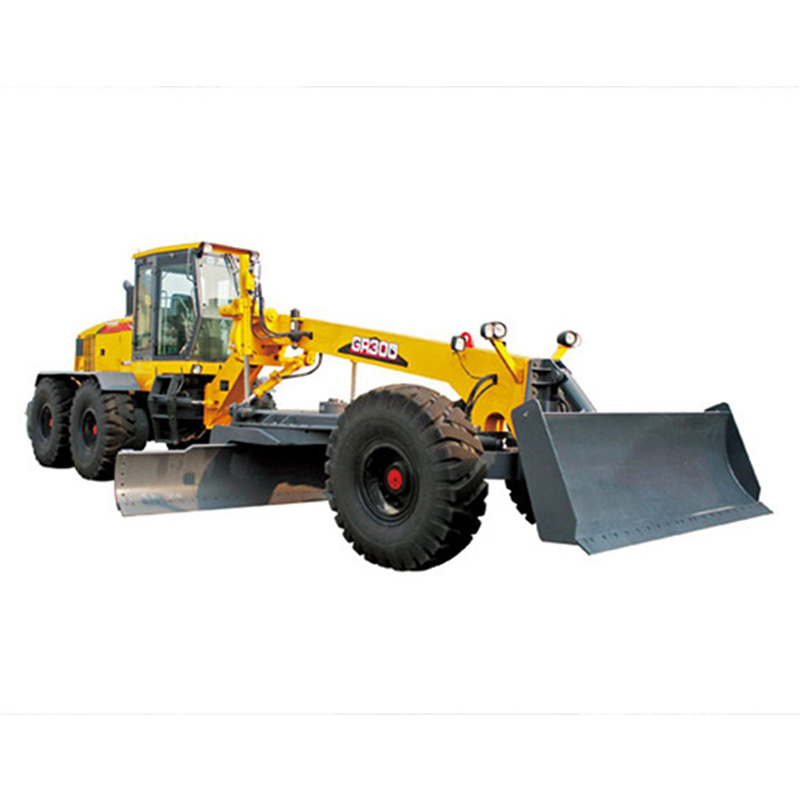

High Quality Chinese Mini Motor Grader Cheap Price for Sale
The motor graders GR3505 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and soon.
Advantages and Highlights:
1. The friction-disc worm gearbox with overload protection is developed for the mining heavy load condition, which can slip
automatically and protect the safety of the machine and personal.
2. Load sensing hydraulic system is equipped with variable piston pump and load sensing multi-way valve, in order to improve
operation comfort, the pilot independent electrical proportional valve, the main directional valve and relief valve are
proportional valves.
3. The service brake is a double-loop hydraulic braking system.
For serious environment condition, to analyze the matching analysis of the cooling system, conduct flow field analysis to power
compartment machine, reasonable layout of the cooling holes, seal the clearance around the radiator, form the" chimney effect" of
air duct design, reduce the hot air vortex. At the same time, the optimized hood design, spray antivertigo paint, beautiful shape.
5. The same time using ROPS&FOPS cabin to meet ISO standard. Equipped with air conditioning, adjustable suspension seat, equipped
with wipers and defrosting vents to improve the comfort of operation.
6. Spacious cabin design, three-dimensional air duct, good driving experience. Double handle operation can be selected on the
handle operation, reducing the labor intensity by about
Advantages and Highlights:
1. The friction-disc worm gearbox with overload protection is developed for the mining heavy load condition, which can slip
automatically and protect the safety of the machine and personal.
2. Load sensing hydraulic system is equipped with variable piston pump and load sensing multi-way valve, in order to improve
operation comfort, the pilot independent electrical proportional valve, the main directional valve and relief valve are
proportional valves.
3. The service brake is a double-loop hydraulic braking system.
For serious environment condition, to analyze the matching analysis of the cooling system, conduct flow field analysis to power
compartment machine, reasonable layout of the cooling holes, seal the clearance around the radiator, form the" chimney effect" of
air duct design, reduce the hot air vortex. At the same time, the optimized hood design, spray antivertigo paint, beautiful shape.
5. The same time using ROPS&FOPS cabin to meet ISO standard. Equipped with air conditioning, adjustable suspension seat, equipped
with wipers and defrosting vents to improve the comfort of operation.
6. Spacious cabin design, three-dimensional air duct, good driving experience. Double handle operation can be selected on the
handle operation, reducing the labor intensity by about
Specification
|
Item
|
|
|
GR3505
|
||
|
Basic parameters
|
Engine model
|
|
QSM 11
|
||
|
|
Rated power/speed
|
|
261kW/2100rpm
|
||
|
|
Overall dimension (standard)
|
|
11250X3180X3820
|
||
|
|
Total weight (standard)
|
|
30000kg
|
||
|
|
Tire specification
|
|
23.5R25
|
||
|
|
Ground clearance (front axle)
|
|
500mm
|
||
|
|
Tread
|
|
2580mm
|
||
|
|
Space of front and rear axles
|
|
7200mm
|
||
|
|
Space of middle and rear wheels
|
|
1960mm
|
||
|
Performance parameters
|
Forward velocity
|
|
5、8.5、13、20、30、45km/h
|
||
|
|
Reverse speed
|
|
5、13、30km/h
|
||
|
|
Tractive effort f=0.75
|
|
165kN
|
||
|
|
Maximum gradeability
|
|
25%
|
||
|
|
Tire inflation pressure
|
|
320kPa
|
||
|
|
Working system pressure
|
|
25MPa
|
||
|
Working parameters
|
Maximum steering angle of front wheel
|
|
±45°
|
||
|
|
Maximum slant angle of front wheel
|
|
±17°
|
||
|
|
Maximum oscillating angle of front axle
|
|
±15°
|
||
|
|
Maximum oscillating angle of equilibrium box
|
|
±15°
|
||
|
|
Maximum steering angle of frame
|
|
±22°
|
||
|
|
Minimum turning radius
|
|
8.9m
|
||
|
|
Scrape knife
|
Maximum lift height
|
450mm
|
||
|
|
|
Maximum cutting depth
|
500mm
|
||
|
|
|
Maximum tilt angle
|
65°
|
||
|
|
|
Cutting angle
|
28°—70°
|
||
|
|
|
Angle of revolution
|
360°
|
||
|
|
|
Length & chord height
|
4877x787mm
|
||
|
Oil filling amount
|
Coolant
|
|
50L
|
||
|
|
Fuel tank
|
|
550L
|
||
|
|
Engine
|
|
37L
|
||
|
|
Transmission
|
|
38L
|
||
|
|
Balancing box
|
|
186L
|
||
|
|
Drive axle
|
|
106L
|
||
|
|
Hydraulic oil
|
|
310L
|
||
