Quick Details
-
Production Capacity:
-
30 sets per month
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
igoldencnc
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
2280*4150*1800mm
-
Weight:
-
2000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Table structure:
-
Aluminum table
-
Spindle power:
-
4.5/5.5/7.5kw
-
Spindle speed:
-
24000rpm/min
-
Driving system:
-
Stepper/Servo
-
Working area:
-
1300*2500*500mm
-
XYZ structure:
-
XY-rack pinion, Z-ball screw
-
Command:
-
G code
-
Operating system:
-
NC studio control system/DSP
-
Color:
-
As clients requirment
Quick Details
-
Type:
-
CNC Router
-
Power:
-
5.5KW
-
Cutting thickness (max):
-
400mm
-
Production Capacity:
-
30 sets per month
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
igoldencnc
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
2280*4150*1800mm
-
Weight:
-
2000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Table structure:
-
Aluminum table
-
Spindle power:
-
4.5/5.5/7.5kw
-
Spindle speed:
-
24000rpm/min
-
Driving system:
-
Stepper/Servo
-
Working area:
-
1300*2500*500mm
-
XYZ structure:
-
XY-rack pinion, Z-ball screw
-
Command:
-
G code
-
Operating system:
-
NC studio control system/DSP
-
Color:
-
As clients requirment

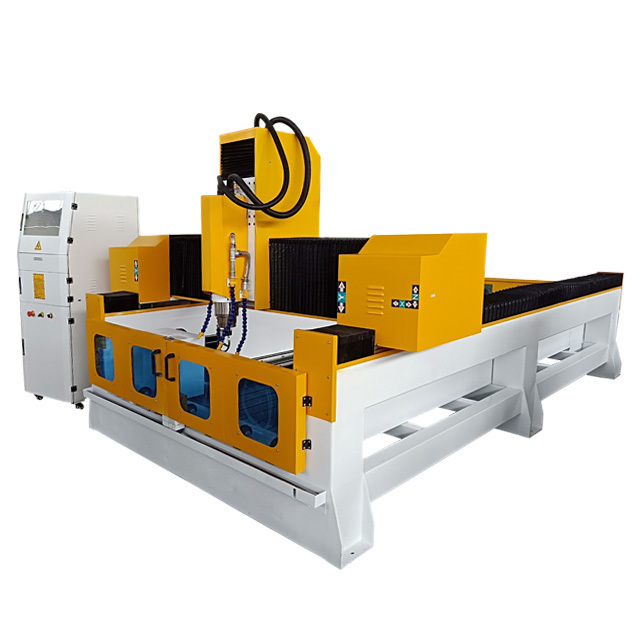

3d stone carving machine cnc stone engraver machine for sale
Features
1. Steel tube lathe bed ,low center of gravity,strong bearing capacity,not easy to deformation,stable and reliable operation.
2. Adopt Ncstudio control system ,through computer operation,easy and simple to operate. DSP handle offline control is optional.
3. Adopt Taiwan linear guide rail. the bearing of the lead guide rail is face to face, the long time use precision is high.
4. Strong compatibility: compatible various CAD/CAM software like Type3/artcam/castmate/proe/Corelerow/Wentai.
5.Adopt High power frequency changing water cooled spindle ,providing excellent cooling effect when carving flinty materials,effectively protect spindle when continuous working for a long time.
Technical Parameters
Suitable for cabinets artificial stone, quartz stone countertops and sink, tea tray caving, European style edging, and other heterosexual stone, ceramics, glass and ceramic stone drilling sanding, edge down, carving. 3D and 3D application including kitchen tops, shower plates, tombstones, bas-reliefs, grooving and lettering.
All the machine can be customized according to your own requirements. For example the machine is designed with linear or carouse tool changer, the amount of head or spindle can be added, also the rotary device is allowed to be installed on the machine……All in all, all the specification of machine can be customized!!! Now just click the following machine for more details!
