Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
HOOOLINK
-
Place of Origin:
-
Guangdong, China
-
FLASH:
-
16MB
-
RAM:
-
128MB
-
Chipser:
-
MT7628
-
Work Mode:
-
ROUTER, AP
-
Firmware:
-
OpenWrt
-
USB Port:
-
2.0
-
Protocol:
-
IEEE 802.11b/g/n
-
Antenna:
-
4*5 DBi External Antenna
Quick Details
-
Max. LAN Data Rate:
-
300Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
HOOOLINK
-
Place of Origin:
-
Guangdong, China
-
FLASH:
-
16MB
-
RAM:
-
128MB
-
Chipser:
-
MT7628
-
Work Mode:
-
ROUTER, AP
-
Firmware:
-
OpenWrt
-
USB Port:
-
2.0
-
Protocol:
-
IEEE 802.11b/g/n
-
Antenna:
-
4*5 DBi External Antenna
|
Model with 4G module
（Major countries）
|
4G band
|
4G transfer speed
|
|
HL-WR842-CN
(China, India) |
FDD:B1/B3/B5/B8
TDD: B34/B38/B39/B40/B41 WCDMA:B1/B5/B8 GSM/EDGE:B3/B8 |
4G maximum transfer speed:
download speed(DL)：150Mbps
upload speed(UL)：50Mbps
|
|
HL-WR842-EU
(Europe) |
FDD:B1/B3/B7/B8/B20/B28
TDD:B38/B40/B41 WCDMA:B1/B8 GSM/EDGE:B3/B8 |
|
|
HL-WR842-AU
(Latin America, Australia,
New Zealand)
|
FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66
TDD:B40 WCDMA:B1/B2/B4/B5/B8 GSM/EDGE:B2/B3/B5/B8 |
|
|
HL-WR842-J
(Japan) |
LTE-FDD：B1/B3/B8/B18/B19/B26
LTE-TDD：B41 WCDMA：B1/B6/B8/B19 |
|
|
HL-WR842-AFXD
(North America) |
FDD:B2/B4/B5/B12/B13/B14/B66/B71
WCDMA:B2/B4/B5 |
|
Overview:

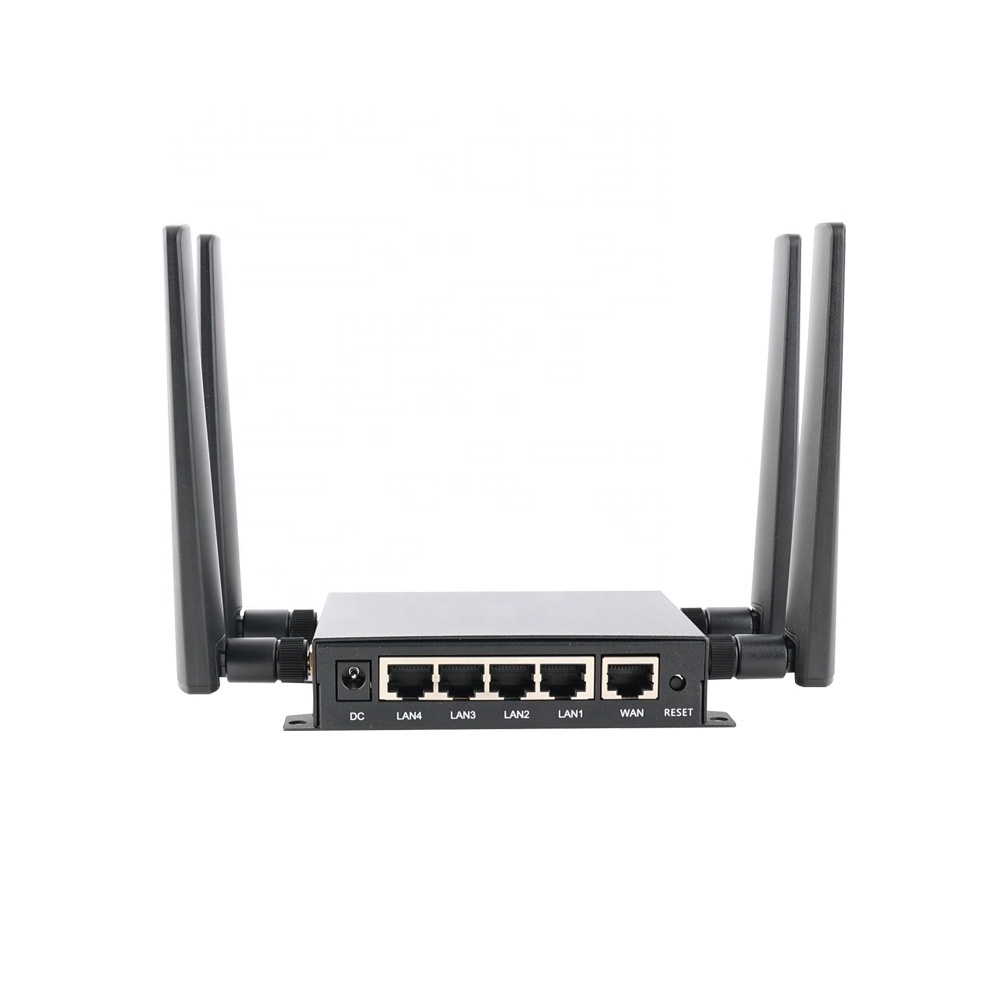

The HL-WR842 uses the MTK7628 solution. The main frequency is up to 580MHz. It supports 1*10/100M WAN + 4*10/100M LAN+ 1*USB port+ 1*SIM card slot+ 1*MINIPCI-E slot. 2.4GHz is 300Mbps. The built-in MINI PCI-E can connect 3G/4G modules according to customer needs, and can support CAT4 and CAT6 modules. Support OpenVPN, PPTP, L2TP, IPSec.
It complies with IEEE802.11b/g/n wireless network protocol, two external 5dBi antennas. Coverage is over 100 meters and supports about 30 access points. Supports Openwrt firmware.
Compliant with IEEE802.11b/g/n protocol
Wireless transmission speed 300Mbps
1*10/100M WAN
4*10/100M LAN
1*SIM card slot
1*USB interface
1*MINI PCI-E slot
Support Uboot flashing
Support 64/128-bit WEP encryption, WPA/WPA2, SPA-PSK/WPA2-PSK and other encryption security mechanisms
10 wireless standby, 4~5 high-definition video, about 10 wired.
Support Openwrt firmware
|
Hardware
|
|
|
|
Chipset
|
MTK7628 / 580MHZ
|
|
|
DDR2
|
DDR2 128MB
|
|
|
SPI Flash
|
SPI 16MB
|
|
|
Wireless Standards
|
IEEE802.11n/802.11g/802.11b
|
|
|
Transmit Power
|
802.11b 18dBm±2dBm
802.11g 15dBm±2dBm 802.11n 15dBm±2dBm |
|
|
Reception Sensitivity
|
802.11b: -83dBm@10% PER
802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER |
|
|
Wireless Speed
|
300Mbps
|
|
|
Working Frequency
|
2.4GHz(2T2R)
|
|
|
Antenna Type
|
4 external 5dBi antenna
|
|
|
Interface
|
1* 10/100M WAN
4* 10/100M LAN 1* USB port 1* SIM Card Slot 1* PCI-E Slot |
|
|
LED
|
Power,USB,2.4G,WAN,LAN1,LAN2,LAN3,LAN4
|
|
|
Button
|
Reset
|
|
|
Power Supply
|
DC 12V
|
|
|
Max power consumption
|
< 15W
|
|
|
Dimensions
(L*W*H) |
131*88.5*28.6mm
|
|
|
Software
|
|
|
|
Default Setting
|
IP Address: 192.168.1.1
User/Password: root/admin |
|
|
WAN Type
|
PPPoE/ Dynamic IP/Static IP/3G/4G
|
|
|
Working mode
|
AP;Router
|
|
|
System
|
Supports SDK，OpenWRT, eCos
|
|
|
DHCP server
|
DHCP server
Client List； Static address assignment； |
|
|
Virtual Server
|
Port Forwarding
DMZ |
|
|
Security
|
Client List Filter
MAC Address Filter URL Filter Remote WEB management |
|
|
DDNS
|
Support
|
|
|
VPN
|
Support
|
|
|
Bandwidth Control
|
Support
|
|
|
Static Router
|
Support
|
|
|
System Log
|
Support
|
|
|
Others
|
Mac address clone
Configuration file import and export Web upgrade |
|
|
Others
|
|
|
|
Environment
|
Operating Temperature: -30℃~70 ℃
Storage Temperature: -40℃~90 ℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
