Quick Details
-
Place of Origin:
-
China
-
Usage:
-
Science Research
-
Feature:
-
Easy Operation
-
Function:
-
Lab Experimental Operation
-
Product name:
-
Scanning Electron Microscope
Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
CIQTEK
-
Model Number:
-
SEM4000
-
Place of Origin:
-
China
-
Usage:
-
Science Research
-
Feature:
-
Easy Operation
-
Function:
-
Lab Experimental Operation
-
Product name:
-
Scanning Electron Microscope
Product Description

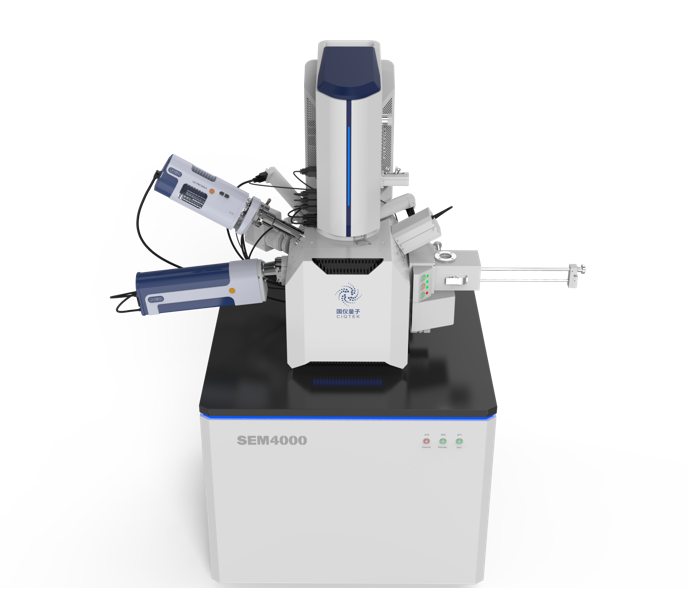

SEM4000 is an analytical thermal field emission scanning electron microscope equipped with a high-brightness, longlife Schottky field emission electron gun. Three-stage magnetic lens design, with large and continuously adjustable beam current, has obvious advantages in EDS, EBSD, WDS and other applications. Support low vacuum mode, can directly observe the conductivity of weak or non-conductive samples. Standard optical navigation mode, as well as intuitive operation interface, make your analysis work feel more relaxed.
Product Paramenters
|
Key
Parameters
|
Resolution
|
1 nm @ 30 kV, SE
|
|
|
|
0.9 nm @ 30 kV, STEM
|
|
|
Accelerating voltage
|
200V~30 kV
|
|
|
Magnification
|
1~1,000,000x
|
|
|
Type of electron gun
|
High brightness schottky field emission electron gun
|
|
Sample
Room
|
Vacuum system
|
Fully automatic control
|
|
|
Low vacuum (optional）
|
Max 180Pa
|
|
|
Camera Distance
|
Dual cameras
|
|
|
|
（Optical navigation + in-chanmber monitoring）
|
|
|
Distance
|
X：120 mm
|
|
|
Y: 115 mm
|
|
|
|
Z: 50 mm
|
|
|
|
T:-10°~+90°
|
|
|
|
R: 360°
|
|
|
Software
|
Language
|
Chinese/English
|
|
|
OS
|
Windows
|
|
|
Navigation
|
Optical navigation, gesture navigation
|
|
|
Automatic function
|
Auto brightness contrast, auto focus, auto astigmatism
|
