High quality industrial air filter fume dust collector industrial vacuum cleaners

High quality industrial air filter fume dust collector industrial vacuum cleaners

FOB Reference Price: Get Latest Price

≥1 Sets

US $1500

≥2 Sets

US $1400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 147 kg

Product name:: Industrial Dust Collector Automatic Stainless Steel Dust Collector

After-sales Service Provided:: Free spare parts

Material:: Food grade stainless steel

Air volume:: 1000-50000m3/h

Filter area:: 10-30m2

Filter cartridge material:: PTFE

Filtration efficiency:: ≥99.9%

Dust arm diameter:: 160mm-500mm

Dust cleaning type:: pulse-jet dust cleaning

Quick Details

Minimum Particle Size:: 0.3um

Place of Origin:: Jiangsu, China

Dimension(L*W*H):: 650*600*1350mm

Weight:: 147 kg

Product name:: Industrial Dust Collector Automatic Stainless Steel Dust Collector

After-sales Service Provided:: Free spare parts

Material:: Food grade stainless steel

Air volume:: 1000-50000m3/h

Filter area:: 10-30m2

Filter cartridge material:: PTFE

Filtration efficiency:: ≥99.9%

Dust arm diameter:: 160mm-500mm

Dust cleaning type:: pulse-jet dust cleaning

Product Overview

High quality industrial air filter fume dust collector industrial vacuum cleaners

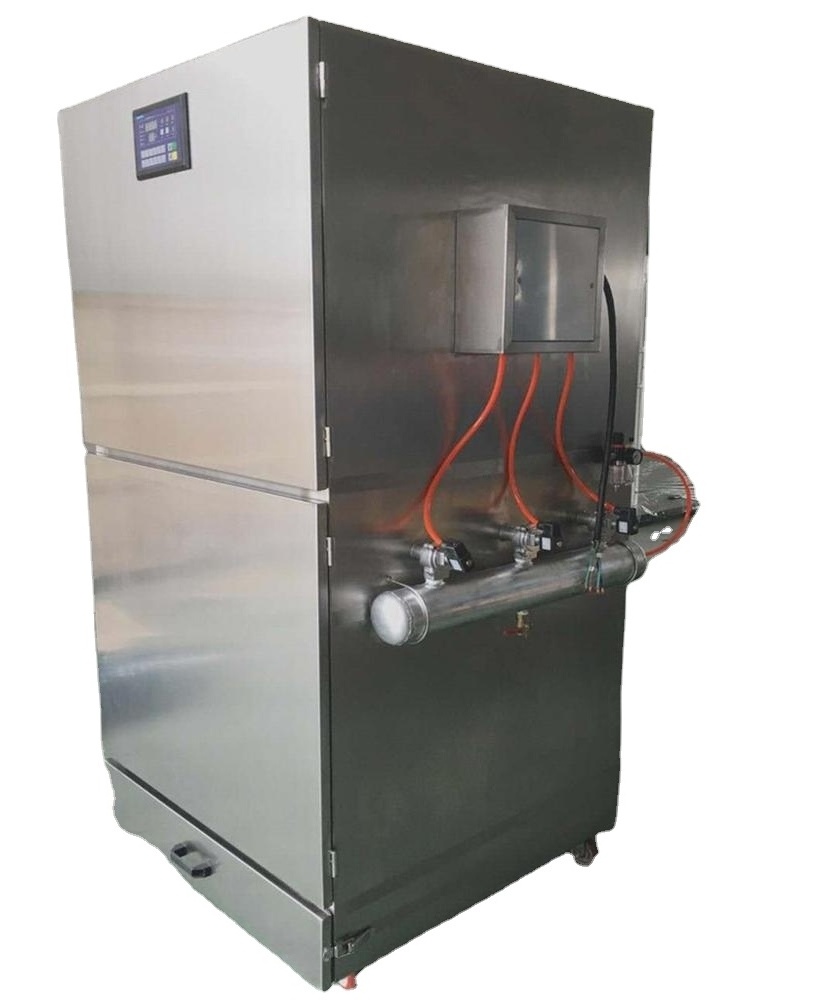

The YORK filter cartridge type dust collector is a new and efficient dry dust removal equipment, which is suitable for purifying fine and dry non fiber dust.

The machine produces negative pressure indoor, the dusty air flow enters the air cleaner through the air intake aperture. After filtering by the high efficient filter cartridge, the large dust particles will be dropped to dust collection box. The tiny dust particles attached to filter cartridge will be shaken off(by pulse valve) to the lower part dust collecting box. The clean air will come out from the upper part of cleaner.

Product Paramenters

YORK Stainless Steel Cartridge Filter Dust Collector
Model	Air volume m³/h	Power kw	Filter Qty. pc	Air Inlet mm	Air Outlet mm	Pressure pa	Size mm
YKM-S800	800	0.75	1	Φ100	100*300	1210	5005001450
YKM-S1600	1600	1.5	1	Φ150	150*350	1360	5505501450
YKM-S2200	2200	2.2	2	Φ200	200*400	1470	6506501700
YKM-S2700	2700	3.0	4	Φ250	300*300	1578	8008002000
YKM-S4000	4000	4.0	4	Φ250	300*300	1650	8008002000
YKM-S6000	6000	5.5	4	Φ300	350*350	2014	9509502100
YKM-S8000	8000	7.5	6	Φ400	400*400	2554	100012002100
YKM-S10000	10000	11.0	9	Φ500	400*400	3100	120012002300
YKM-S15000	15000	15.0	9	Φ500	400*400	3200	120012002300
Dust collection method:Dust arms or pipe connection
Fixing method:With fixed feet/movable universal wheels (optional)
