Quick Details
-
Dimension(L*W*H):
-
980x190x230cm
-
Weight:
-
1500 KG
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Name:
-
Water Screw Chiller
-
Usage:
-
Poultry Slauthering
-
Suit for:
-
Poultry Slaughter Plant
-
Material:
-
304 Stainless Steel
-
Object:
-
Chicken. Duck
-
Processing:
-
Complete Slaughter Line
-
Capacity:
-
1000-10000bph
-
Certification:
-
ISO9001:2008
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Yanbei
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
980x190x230cm
-
Weight:
-
1500 KG
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Name:
-
Water Screw Chiller
-
Usage:
-
Poultry Slauthering
-
Suit for:
-
Poultry Slaughter Plant
-
Material:
-
304 Stainless Steel
-
Object:
-
Chicken. Duck
-
Processing:
-
Complete Slaughter Line
-
Capacity:
-
1000-10000bph
-
Certification:
-
ISO9001:2008
STAINLESS STEEL CHICKEN SLAUGHTERING WATER SCREW CHILLER
PRODUCT DESCRIPTION
The whole chicken slaughtering equipment includes: stunner, scalder, plucker, water chiller, overhead conveyor with shackle, shackle washer, evisceration and cutting etc.
The capacity: 1000bph-10,000 bph.

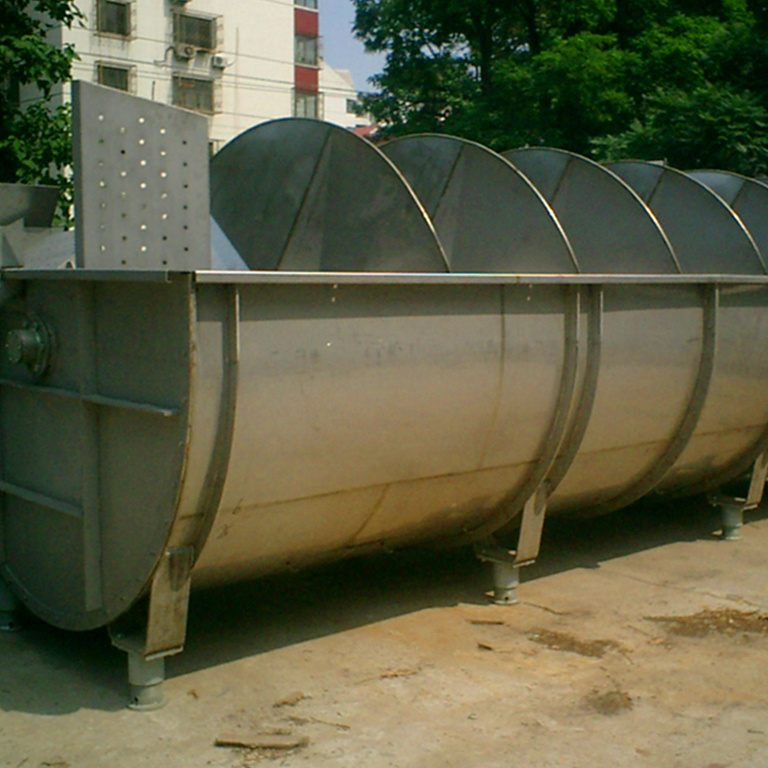

Water Screw Chiller:
E.G. 2000 Birds Per Hour
) The screw chiller takes care of a quick and hygienic chilling of the product by means
of water with flake ice.
2) The chilling time is about 22 minutes, with entry temperature of
the product of 22 degrees Celsius, an end temperature
of 6 degrees can be realized.
3) The chiller is easy to clean and is built according
to the counter-flow principle for accelerated heat transfer.
4) 304 Stainless steel barrel and spiral blade
5) Ventilator 4kw*2, reducing motor:0.55kw
6) The temperature of cooling water: 0-4 ℃
7 ) SIZE:980*190*230(CM), Barrel 9m long, diameter of blade: 1.6m
PACKAGING & SHIPPING
Nude, with other chicken slaughtering equipment in the container.
Electric control panel: By wooden case
E.G.: 2000 birds per hour chicken slaughtering equipment need 2X40’ Container.
Port of Loading: Xingang Tianjin, Qingdao, Shanghai China
CUSTOMER’S PLANT
OUR SERVICE
--- Free design within 48 hours
--- 24 hours phone support
--- Far distance technical support
--- Detail transportation supply
--- Lifetime oversea maintenance
COMPANY INFORMATION
1) Established in 1978, 40 years experience of focusing on animal husbandry equipment innovation and development.
2) “YANBEI” brand was awarded the “China Well-known Trademark”
3) Acquire ISO9001 CERTIFICATE since 1999.
4) Golden supplier at Alibaba for more than 15 years.
5 ) Main Products:
--- Chicken (Layer and Broiler), pig farming equipment
--- Environment control device (ventilator, cooling pad, air inlet etc.)
--- Feed processing equipment
--- Incubator and Hatcher
--- Chicken slaughtering equipment
--- Straw stalks and forage processing equipment
