Quick Details
-
Dimension(L*W*H):
-
6300*1500*2440mm
-
Weight (KG):
-
7600 kg
-
Type:
-
Rubber Calender
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
roller:
-
cold hard cast iron
-
transmisson system:
-
roller ball bearing
-
gearbox:
-
hardened teeth gearbox
-
control:
-
automatic control
-
Weight:
-
about 18 T
-
Power(W):
-
55 kw
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jucai
-
Voltage:
-
As your local need
-
Dimension(L*W*H):
-
6300*1500*2440mm
-
Weight (KG):
-
7600 kg
-
Type:
-
Rubber Calender
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
roller:
-
cold hard cast iron
-
transmisson system:
-
roller ball bearing
-
gearbox:
-
hardened teeth gearbox
-
control:
-
automatic control
-
Weight:
-
about 18 T
-
Power(W):
-
55 kw

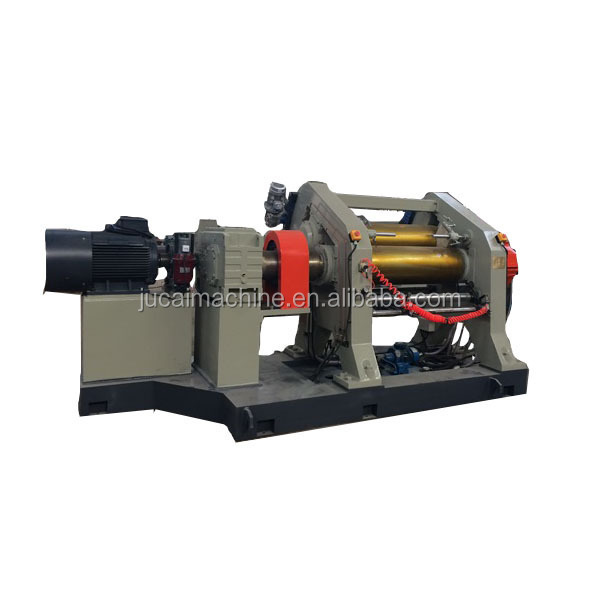

Product Application
rubber calender is used for rubber (plastic)calendering , precisely sheeting ,textile fabric fractioning ,double side coating , sheet laminating and so on
Main Features
1) The bedplate is whole model, installation convenience.
2) Rollers are made of chilled cast alloy iron, the working surface of roller is hardness and smoothly. steam and cooling water can pass through inner of the rollers so that surface temperature can be adjustable.
3) Adopt roll bearing, high precision, long service life, axes pathway is no abrasion.
4) Full range of bending deflections is optional including middle height, inflection and axis crossing.
5) Adjusting spacing device is consisted of one left and one right hand wheel. The bearing bases need is moved and reached nip by worm and worm wheel. Roller space can be adjusted manually or by electric motor.
6) Roller arrangement can be "I" type, "F" type, "Z" type, "L" type and "invert L" type.
7) The speed reducer is the hard-tooth surface gear reducer of Class 6 precision, which has long service life and low noise.
8) Perfect emergency stop device can ensure the safety of person and equipment.
We may design and produce it as per customers' requirements, equip various accessories, composing combined product line. Below is the main parameters:
|
Model
|
XY-230*630
|
XY-252*720
|
XY-360*1120
|
|
roller diameter
|
230
|
252
|
360
|
|
roller working length
|
630
|
720
|
1120
|
|
roller ratio
|
1:1:1/1:1.2:1
|
1:1:1
|
1:1:1
|
|
middle roll linear speed
|
0.8-8 M/MIN
|
2-15.9
|
3-20
|
|
Adjusting nip range
|
0-7
|
0-10
|
0-10
|
|
Min calendering thickness
|
0.2MM
|
0.2MM
|
O.2MM
|
|
calender product width
|
500
|
550
|
920MM
|
|
motor
|
7.5 KW
|
22 KW
|
45KW
|
|
machine weight
|
about 3 t
|
about 5.5 t
|
about 14 t
|
|
Model
|
XY-400*1200
|
XY-450*1400
|
XY-610*1730
|
|
roller diameter
|
400
|
450
|
610
|
|
roller working length
|
1200
|
1400
|
1730
|
|
roller ratio
|
1:1:1
|
1:1:1
|
1:1:1
|
|
middle roll linear speed
|
3-26.39
|
2.62-26.62
|
5.4-54
|
|
Adjusting nip range
|
0-10
|
0-10
|
0-20
|
|
Min calendering thickness
|
0.2
|
0.2
|
0.15
|
|
calender product width
|
1200
|
1250
|
1500
|
|
motor
|
55
|
75
|
160
|
|
machine weight
|
about 18t
|
about 21 t
|
about 43t
|
1.we will one year guarantee for the machine . During this period if there is anything wrong with machine , supplier are responsible for it and should offer the best spare part freely for buyer
2.supplier should send professional if required by customer
3.we will offer service for whole life of machine
Qingdao Jiuzhou Jucai Machine Co .,Ltd is one of biggest rubber machine manufacturer in north part of china .
Our company mainly produce semi automatic and automatic type vulcanizing machine , rubber injection molding machine , eva foaming machine , rubber mixing machine , rubber kneader machine , tire recycling machine , etc .
Our machine has been widely exported to USA , UK ,Russian , South Korea , Japanese , India , Poland , Spanish , Mexico and many other areas
Our machine has passed ISO9001:2008 , SGS , BV and CE certificate
Welcome to inquiry and visit factory for cooperation
