- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HengWang baler machine
-
Weight:
-
800 KG
-
Dimension(L*W*H):
-
110*80*100cm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
warranty:
-
1year
-
packaging:
-
wooden box baler machine
-
technical support:
-
technical support: long time
-
Cylinder:
-
Double Oil cylinder
-
Bale Size:
-
L X W(800mm X 600mm )
-
Output:
-
6-7 package/hours
-
Bail Weight:
-
80-100kg/bale
Quick Details
-
Voltage:
-
220v/380v, according customer
-
Power:
-
4KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HengWang baler machine
-
Weight:
-
800 KG
-
Dimension(L*W*H):
-
110*80*100cm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
warranty:
-
1year
-
packaging:
-
wooden box baler machine
-
technical support:
-
technical support: long time
-
Cylinder:
-
Double Oil cylinder
-
Bale Size:
-
L X W(800mm X 600mm )
-
Output:
-
6-7 package/hours
-
Bail Weight:
-
80-100kg/bale

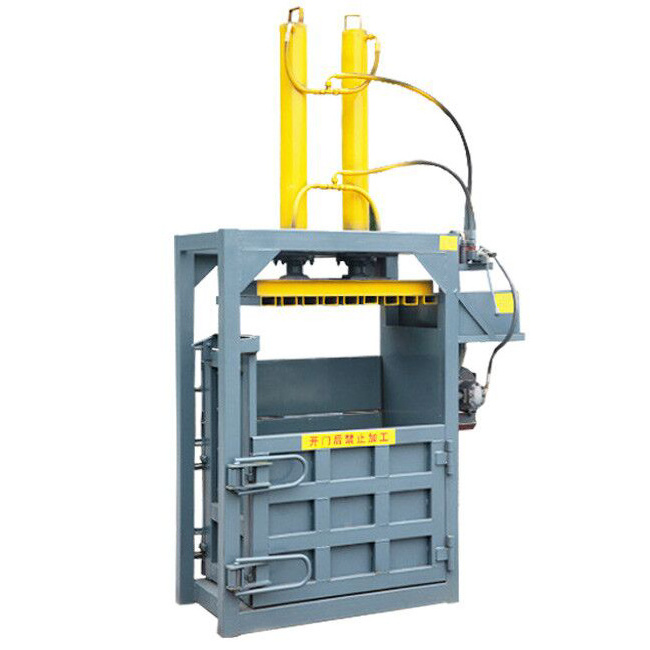

Baler machine
We have many kind of baler machine ,pls check following :
(1)This series machine mainly is used for baling cartons, cotton yarn, plastic, wood, etc. It is designed as vertical structure, hydraulic transmission, electrical control and manual binding.
(2)Usually the pressureforce of this series is from 10 ton KN to 60 ton KN, the efficiency is 4 ~ 6
pieces per hour. The weight of each piece is from 30 Kg to 300 Kg according to the material.
(3)Also, we can produce the machine according to the requirement from customer.
a.Adopting a hydraulic drive mechanism, Use less energy, with huge operating energy
b.Electric button control, it can reaches manual adjusting and semi automatic control
c. Independent feeding opening with automatic pulling out installation, to reduce labor force.
d.It can be made according to the demands of customers, and the bale can be binded into "---" and
"#" shape.
PARAMETER
|
Model
|
Force
|
Bale size
|
Bale weight
|
Efficiency
|
Power (KW)
|
Machine weight
|
Size (mm)
|
|
HW10-6040
|
10 Ton
|
600*400 mm
|
30-50 KG
|
4-6 bale/hour
|
2.2
|
1000kg
|
900*650*2100
|
|
HW 20-8060
|
20 Ton
|
800*600 mm
|
80-100 KG
|
4-6 bale/hour
|
4
|
1100 KG
|
1000*750*2750
|
|
HW 30-8060
|
30 Ton
|
800*600 mm
|
100-130 KG
|
4-6 bale/hour
|
5.5
|
1300 KG
|
1000*750*2750
|
|
HW 40-11070
|
40 Ton
|
1100*700 mm
|
180-200KG
|
4-6 bale/hour
|
7.5
|
1800 KG
|
1350*850*3200
|
|
HW 50-12080
|
50 Ton
|
1200*800 mm
|
320-350KG
|
4-6 bale/hour
|
7.5 or 11
|
2600 KG
|
1600*1050*3300
|
|
HW 60-12080
|
60 Ton
|
1200*800 mm
|
380-420KG
|
4-6 bale/hour
|
11 or 15
|
2900 KG
|
1600*1050*3300
|
|
HW 80-12080
|
80TON
|
1200*800 mm
|
450-480KG
|
4-6 bale/hour
|
15
|
3300 KG
|
1600*1050*3300
|
|
HW150-150100
|
150TON
|
1500*1000 mm
|
850-900KG
|
4-6 bale/hour
|
18.5
|
5100kg
|
2100*1550*3300
|
Products Details
Related Model
Horizontal baler machine
Factory customs---Can according customer need
metal baler machine
We have 10 Ton ,20Ton ,30Ton,60Ton ,80Ton and so on . Can acccording customer need
New type baler machine
Can acccording customer need
Packing and delivery
Our baler machine packing within wooden case
