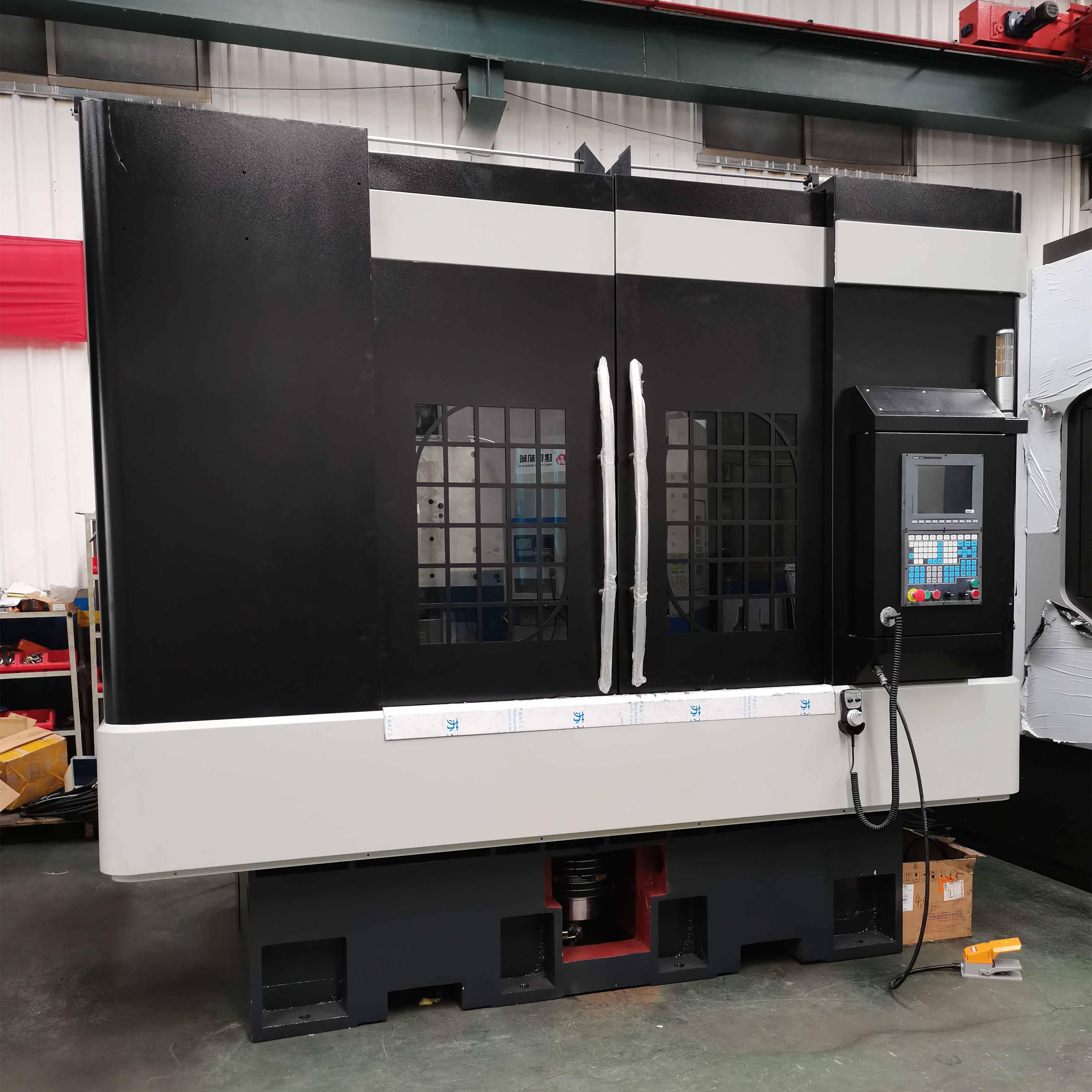

VTC70 China vertical cnc lathe machine cnc vertical carousel lathe

VTC70 China vertical cnc lathe machine cnc vertical carousel lathe

FOB Reference Price: Get Latest Price

≥1 Sets

US $12600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Max. Spindle Speed (r.p.m):: 700 r.p.m

Width of bed (mm):: 16 mm

Spindle Motor Power(kW):: 18.5/22

Travel (X Axis)(mm):: 700 mm

Travel (Z Axis)(mm):: 700 mm

Repeatability (X/Y/Z) (mm):: 0.012

Place of Origin:: Shandong, China

Dimension(L*W*H):: 2050*1800*3200

Brand Name:: ZYZG

Model Number:: VTC70

Voltage:: 220/380V

Weight (KG):: 2500

apindle speed range(rpm):: 100~1000

cutting feed speed(mm/min):: 0.1~1000

diameter of hyaraulichuck:: 400/500

Certification:: CE ISO

Quick Details

Type:: VERTICAL

Max. Length of Workpiece (mm):: 700

Year:: 2021

Max. Spindle Speed (r.p.m):: 700 r.p.m

Width of bed (mm):: 16 mm

Spindle Motor Power(kW):: 18.5/22

Travel (X Axis)(mm):: 700 mm

Travel (Z Axis)(mm):: 700 mm

Repeatability (X/Y/Z) (mm):: 0.012

Place of Origin:: Shandong, China

Dimension(L*W*H):: 2050*1800*3200

Brand Name:: ZYZG

Model Number:: VTC70

Voltage:: 220/380V

Weight (KG):: 2500

apindle speed range(rpm):: 100~1000

cutting feed speed(mm/min):: 0.1~1000

diameter of hyaraulichuck:: 400/500

Certification:: CE ISO

VTC70 China vertical cnc lathe machine cnc vertical carousel lathe

Product Description

This machine is an automatic vertical cnc lath for machining the inner and outer cylindrical surfaces of the parts, conical surface, end surface, grooving and chamfering. It is especially suitable for brake hubs, drums, clutch pressure plates and flywheels.

Main Features:

1. Spindle unit: high rigidity, high torque, high precision，easy to install and maintain. 2. Design of large inclined surface and super wide chip discharging groove. 3. Private service tool rest: simple structure, strong rigidity, fast displacement. 4. The cutting feed including the residual deformation can be carried out in all respects by using the abundant 8-angle turntable with large diameter. 5. The joint surface between the base and the column, the slide plate, the spindle platform, the cutter tower and the bearing pedestal are all scraped by hand to achieve the maximum precision of components, structural rigidity and load balance.

Specification

Specification	Unit	VTC70
Maximum rotating diameter of machine tool	mm	700
apindle speed range	rpm	100~1000
cutting feed speed	mm/min	0.1~1000
tool test vertical movement length	mm	700
tool test horizontal movement length	mm	700
rapid traverse speed vertically	mm/min	16000
rapid traverse speed horizontally	mm/min	16000
diameter of hyaraulichuck	mm	400/500
main motor power	kw	18.5/22
positioning accuracy	mm	X,Z/0.015,0.02
repeated positioning accuracy	mm	0.012
machine tool overall dimension	mm	2050x1800x3200

Application

This series of CNC vertical lathe can process a variety of short-axis, disc-type parts, can be used to turn a variety of threads, arcs, and the inner and outer surfaces, end faces, grooves of the rotating body. Suitable for large batch size, high processing precision and high dimensional consistency. This series of machine tools is widely used in the domestic and international automotive industry, and is a machine tool with higher precision and high efficiency.

Packing & Delivery

Packaging Details：

1. Packing method: Internal plastic moisture-proof anti-rust packaging, External wooden packaging, Exclusive container transport.

2. Mode of transport: by sea or by land.

Our service

Our services are divided into pre-sale, sales, after-sale three parts.

Pre-sale：to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.

Sales：can support samples, support diversified payment methods, the solid forklift tire press machine production process transparent, standardized and quickly stocking.

After-sales：support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use.
