Quick Details
-
Brand Name:
-
dell
-
Model Number:
-
R750xs, dell R750xs poweredge server
-
Place of Origin:
-
China
-
Memory slots:
-
32 DDR4 DIMM slots
-
Front drive bays:
-
Up to 8 x 2.5"/16x2.5/12x3.5SAS/SATA (HDD/SSD) max 122.88TB
-
Storage controllers:
-
PERC H745, HBA355I, S150, H345, H755, H755N
-
Power supplies:
-
495W 750W 1100W 1400w
-
PCIe:
-
Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for I/O modules
-
Form factor:
-
Rack (2U)
-
warranty:
-
3 Years
Quick Details
-
Type:
-
Rack
-
Processor Type:
-
Intel Xeon 4310, Xeon 4310
-
Processor Main Frequency:
-
2.1GHz, 2.1GHz 12c
-
Brand Name:
-
dell
-
Model Number:
-
R750xs, dell R750xs poweredge server
-
Place of Origin:
-
China
-
Memory slots:
-
32 DDR4 DIMM slots
-
Front drive bays:
-
Up to 8 x 2.5"/16x2.5/12x3.5SAS/SATA (HDD/SSD) max 122.88TB
-
Storage controllers:
-
PERC H745, HBA355I, S150, H345, H755, H755N
-
Power supplies:
-
495W 750W 1100W 1400w
-
PCIe:
-
Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for I/O modules
-
Form factor:
-
Rack (2U)
-
warranty:
-
3 Years
Product display

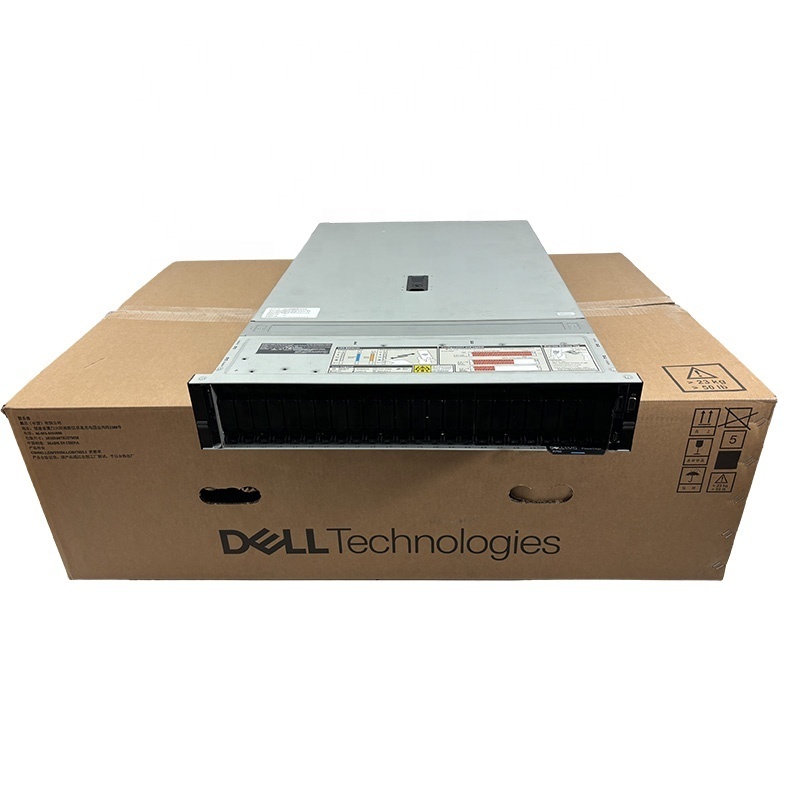

Dell EMC PowerEdge R750xs Dual 2U Rack Server
Product Paramenters
|
model
|
dell POWEREDGE R750 server
|
|
|
|
Form Factor
|
2U, 2-socket rack server
|
|
|
|
Processor
|
Up to two 3rd Generation Intel Xeon Scalable processors with up to 24 cores per processor
|
|
|
|
Memory
|
• 32 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 2933 MT/s
• Supports registered ECC DDR4 DIMMs only |
|
|
|
Storage controllers
Internal Boot |
• Internal Controllers: PERC H345, PERC H355, HBA355i, PERC H745, PERC H755, S150
• Internal Boot: Internal Dual SD Module, USB, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2x M.2 SSDs • External PERC (RAID): PERC H840 • External HBA (non-RAID): HBA355e |
|
|
|
Drive bays
|
ront bays:
• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB • Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB |
|
|
|
|
|
|
|
|
Power supplies
|
• 800 W Platinum AC/240 mixed mode
• 1100 W Titanium AC/240 mixed mode • 1400 W Platinum AC/240 mixed mode • 2400 W Platinum AC/240 mixed mode |
|
|
|
Fans
|
• Standard (STD) fans
• Up to five cabled fans |
|
|
|
Dimensions
|
• Height – 86.8 mm (3.41 inches)
• Width – 482 mm (18.97 inches) • Depth – 721.69 mm (28.72 inches) with bezel 685.78 mm (27.00 inches) without bezel |
|
|
|
Embedded management
|
iDRAC9
• iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module |
|
|
|
Bezel
|
Optional LCD bezel or security bezel
|
|
|
|
OpenManage Software
|
• OpenManage Enterprise
• OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin |
|
|
|
Embedded NIC
|
2 x 1 GbE LOM
|
|
|
|
Network Options
|
1 x OCP 3.0 (optional)
|
|
|
|
PCIe
|
Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules
|
|
|
|
Operating System and Hypervisors
|
• Canonical Ubuntu Server LTS
• Citrix Hypervisor • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi |
|
|
