Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Contemporary
-
Type:
-
Formwork, Wall Form
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Topway
-
Model Number:
-
Formwork parts
-
Material:
-
45#
-
Color:
-
Yellow
-
Name:
-
Building Construction Formwork Tie Rod Casting Waler Wing Nut
-
Size:
-
all size
-
Usage:
-
concrete slab wall formwork
-
Thickness:
-
all specfication
-
Feature:
-
Reuses
-
OEM:
-
YES
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Hotel
-
Design Style:
-
Contemporary
-
Type:
-
Formwork, Wall Form
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Topway
-
Model Number:
-
Formwork parts
-
Material:
-
45#
-
Color:
-
Yellow
-
Name:
-
Building Construction Formwork Tie Rod Casting Waler Wing Nut
-
Size:
-
all size
-
Usage:
-
concrete slab wall formwork
-
Thickness:
-
all specfication
-
Feature:
-
Reuses
-
OEM:
-
YES

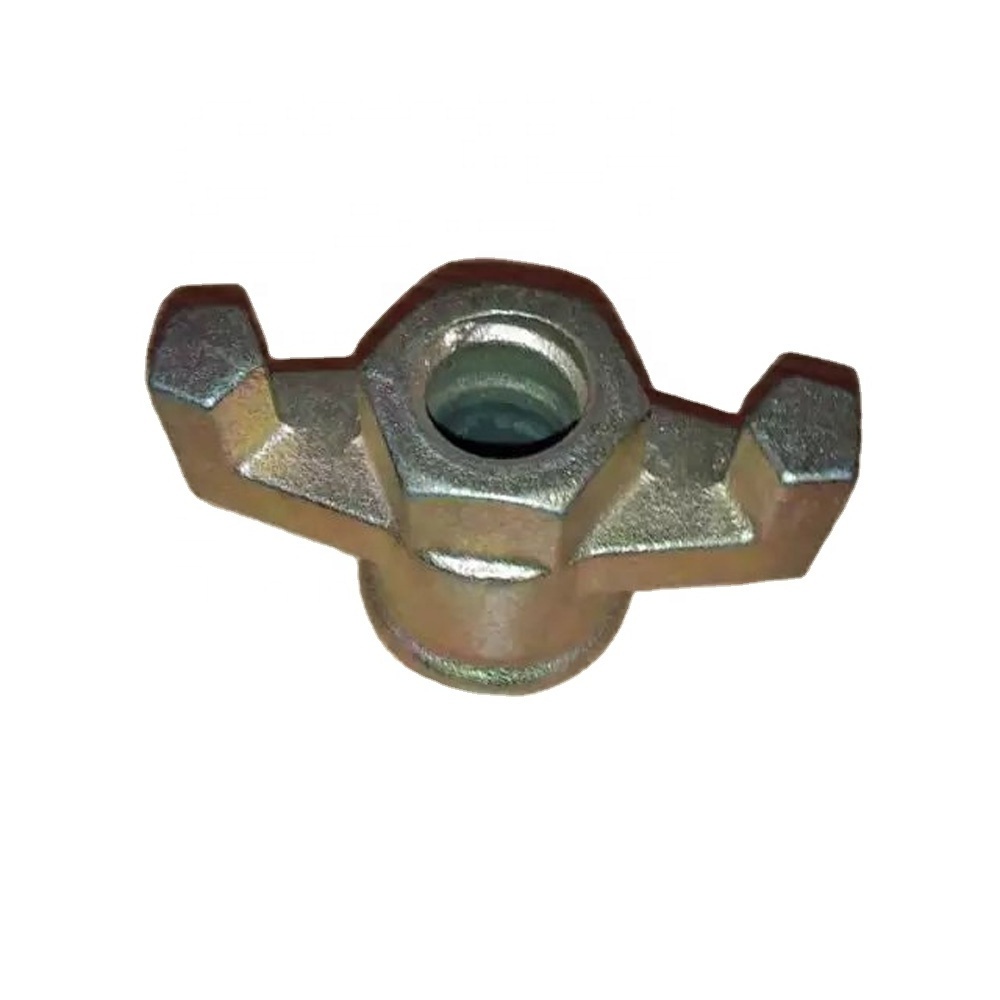

Formwork fastener usual used wing nut and tie rod,The wing nut material is nodular cast iron,tie rod material is Q235 or 45#
| Product name | casting wing nut |
| Material | nodular cast iron QT450-10 |
| size | all size |
| Process | casting |
| surface treatment | self color or galvanized |
| loading | 100-200KN |
| Products name | tie rod |
| Materila | Q234/45#/40Cr |
| Size | D17mm |
| Loading | 100-300KN |
| Surface treatment | self color or galvanized |
40Cr Tie rod testing data:
| dia | A (out dia) | B (inner dia) | C (thread pitch) | D (width of thread) | break load |
| Ø12 | 12mm | 10.4mm | 6mm | 1.5mm | 66KN |
| Ø14 | 14mm | 12.4mm | 6mm | 1.5mm | 94KN |
| Ø16 | 16mm | 14mm | 8mm | 2.2mm | 120KN |
| Ø17 | 17mm | 15mm | 10mm | 2.2mm | 160KN |
| Ø18 | 18mm | 16mm | 8mm | 2.2mm | 175KN |
| Ø20 | 20mm | 18mm | 8mm | 2.2mm | 184KN |
| Ø22 | 22mm | 20mm | 10mm | 2.5mm | 227KN |
| Ø30 | 30mm | 26.5mm | 13mm | 3.5mm | 370KN |
Q.1 Are you a trader or manufacturer?
We are a production and marketing,industry and trade integration company.
Q.2 Where is your company located?
Head office is located xianning city,Hubei province,china,our factory is located Tianjin,china.
Q.3 What's your main products?Can you accept "OEM" or "ODM"?
We are a professional manufacturer of the scaffolding and fittings
Of course,we can accept "OEM" or "ODM".If you have problems in designing,we will offer you the best engineer.All you need to do is just to give us the image or words you require for the product and we design for you!
Q.4 Can i request sample?
of course,sample is ok,and it's free!
Q.5 How about the delivery time?
Under normal conditions 7-15 days,but it's according to your quantity.
