Quick Details
-
Application:
-
Industrial equipment, home appliance etc.
-
Keypad Button Material:
-
pc,pet
-
Name:
-
custom 3m adhesive waterproof membrane keyboard with leds
-
Back adhesive:
-
3M467/468
-
Connector:
-
2.54mm female connector or 1mm ZIF connector
-
Key option:
-
Flat or Emboss
-
Printing:
-
Screen Printing
-
Life Expectancy:
-
flat type ≥ 500 million times,tactile type: ≥ 100 million times
-
Circuit:
-
printing silver ink on PET material
-
Cable:
-
Meet Customer's Demand
-
MOQ:
-
100pcs
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HOEE
-
Model Number:
-
HY-515 waterproof membrane keyboard
-
Application:
-
Industrial equipment, home appliance etc.
-
Keypad Button Material:
-
pc,pet
-
Name:
-
custom 3m adhesive waterproof membrane keyboard with leds
-
Back adhesive:
-
3M467/468
-
Connector:
-
2.54mm female connector or 1mm ZIF connector
-
Key option:
-
Flat or Emboss
-
Printing:
-
Screen Printing
-
Life Expectancy:
-
flat type ≥ 500 million times,tactile type: ≥ 100 million times
-
Circuit:
-
printing silver ink on PET material
-
Cable:
-
Meet Customer's Demand
-
MOQ:
-
100pcs

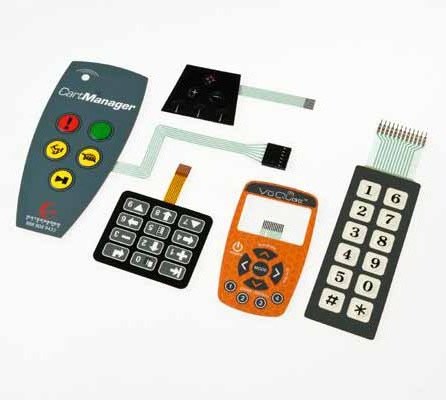

High quality Push Button LED Membrane Switch for Electronic scale
All of our products are custom made from dimension, color, material requirment, cable length, tracks pitch, total thickness etc..
Also add special structure to make the products more attractive, like backlight, fluorecent etc..
Expect for getting your design idea, then we will work hard together to achieve it.
Technical Specification
| Environmental | Operating Tem | From -20 to 65 °C/ -4 to 149 °F |
| Storage Tem | From -40 to 85 °C/ -40 to 185 °F | |
| Seal | 3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions. | |
| Special sealing options are available for wet environments. | ||
| Mechanical | Travel | .007 inches to .015 inches |
| Operating Force | 4oz to 8oz | |
| Electrical | Operating Voltage | 30 volts maximum |
| Operating Current | 10 microamps to 100 milliamps, resistive | |
| Closed Circuit Resistance | 100 ohms typical, dependent on size and layout | |
| Open Circuit Resistance | 10 megohms | |
| Operating Power | 1 watt maximum | |
| Circuitry | X-Y matrix or one side common | |
1. 20 years' producing history and 10 years' exporting experience.
2: Stable and experienced working team: more than 80% of the staffs have been working in our factory for more than 6 years.
3: Professional engineering team will offer technical support in development step of new project.
4. Provide one-stop production and assembly service from custom membrane switch to PCBA, enclosure, back plate etc.
5. Using high standard mould to assure the products with high quality and precise dimensions.
6. In-house 100% functionally tested.
1. Are you a manufacturer or trading agent?
We are a experienced manufacturer and we also have a professional overseas sales team to serve our customers all over the world.
2.
Can you offer samples
?
(1)
Stock
Samples: If you paid the
freight cost
, we can provide free samples for you.
(2)Custom
ized
Samples:
We will offer you 5 pcs free samples after we receive the set up cost.
3
. What is the
delivery
time?
(1)Custom
ized
sample: About 7
to 10
days.
(2)Mass production: About 2--3 weeks
4. Is the prototype necessary?
Yes.Most of the items are customized orders,so the prototype will be sent to customer for approval.
5.What is the MOQ?
Generally, we require 100pcs for MOQ or USD280 for equivalent.
6. What is the terms of payment?
As the client need,we mainly receive trade assurance,TT,west union,PayPal etc.
