Quick Details
-
Model Number:
-
YHIR
-
Material:
-
standard export package
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
6000 kg
-
Product name:
-
Incinerator
-
Furnace size:
-
L*W*H=2260*700*650mm
-
Dimension(m):
-
L*W*H=2800*1800*2300mmTotal length of cremation machine: 5500mm
-
Power:
-
< 15K
-
Fuel consumption:
-
5-15Kg/batch
-
Weight(kg):
-
6000-8000
-
Application:
-
human crematorium incinerator
-
Keyword:
-
Incinerator
-
Color:
-
Customized
Quick Details
-
Production Capacity:
-
50-70 min/batch(Complete cremation)
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YIHUA
-
Model Number:
-
YHIR
-
Material:
-
standard export package
-
Marketing Type:
-
New Product 2023
-
Weight (KG):
-
6000 kg
-
Product name:
-
Incinerator
-
Furnace size:
-
L*W*H=2260*700*650mm
-
Dimension(m):
-
L*W*H=2800*1800*2300mmTotal length of cremation machine: 5500mm
-
Power:
-
< 15K
-
Fuel consumption:
-
5-15Kg/batch
-
Weight(kg):
-
6000-8000
-
Application:
-
human crematorium incinerator
-
Keyword:
-
Incinerator
-
Color:
-
Customized

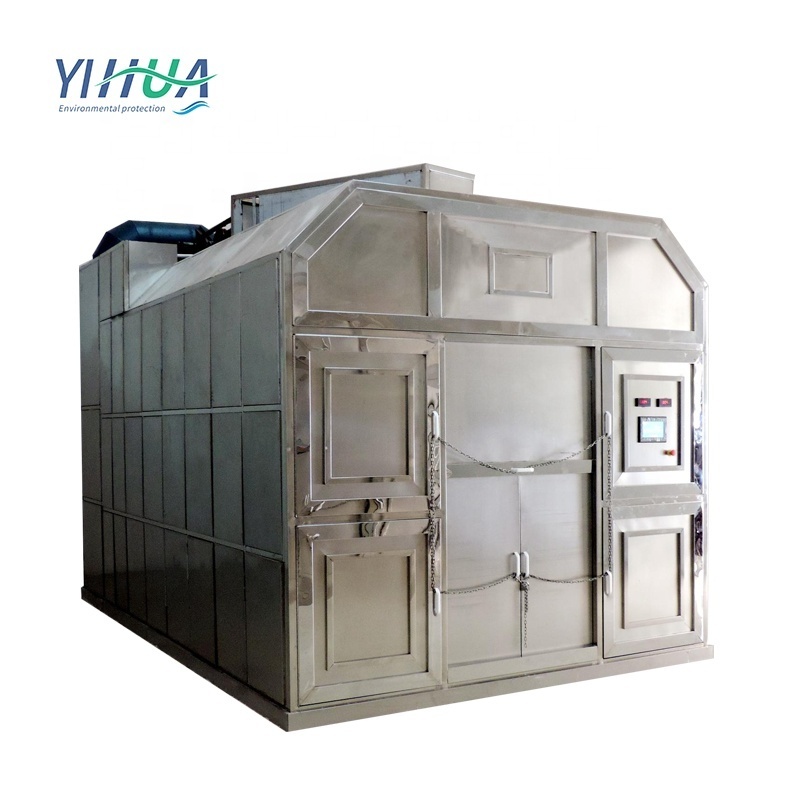

INCINERATOR
Our cremators adapt the latest combustion technology, four times burning technology ensure the emissions purified.
First Time Combustion is direct combustion inside the primary chamber. Integrated with hot blast oxygen supply (300℃), most smoke and gas get burned as spontaneous combusting of corpse and enforced by the main burner supporting at times.
Second Time Combustion: The smoke and gas substance released from the primary chamber gathered in the secondary burning and multiple collision take place, decomposition and oxidation of that harmful substances speedup this way and by the special construction of the secondary burning chamber.
Third Time Combustion is the strengthen combustion of the gas and smoke. Burner starts work to strengthen the burning if temperature under 700℃,otherwise above 700℃ the high temperature gas and smoke burn itself matched with the suitable amount of oxygen.
Cremation, as an option for the final disposition of a deceased person, has been around for thousands of years. While the beginnings of cremation involved somewhat primitive methods for achieving the end result, modern times and technology have given rise to a more standardized version of the process. Our company manufacture human size cremators that reduce the amount of time necessary to complete the cremation to less than half an hours.
Fourth Combustion occurred in the gas way and underground smoke channel, gas and gas substances flameless burned totally before injection into the atmosphere.
Products Description
|
Brand
|
Model
|
Furnace size
|
Dimension（m）
|
|
|
Power
|
Fuel consumption
|
Weight（kg）
|
||
|
|
|
L*W*H
|
L
|
W
|
H
|
Kw
|
fuel oil（kg/h）/fuel gas（㎡/h）
|
|
||
|
YH
|
YHIR-200G
|
2260*700*650mm
|
2.8
|
1.8
|
2.3
|
＜ 15Kw
|
5-15Kg/batch
|
6000-8000
|
||
The processing equipment is equipped with laser cutting, with high blanking accuracy, flat plate surface, and customized materials can be made.
Q:Can you put my company brand (logo) on the products？
A:Yes,we support OEM/ODM service,the customize process as follows:
1: Customers put forward personalized customization requirementsCheap.
2:Our engineer draw the design draft.
3:Customer confirm the design draft.
4:Factory start to produce shipment.
Q:How to choose a Model？
A：You can tell us what you need, and we can help you choose the Model
Q:How to pay?
A:TT and L/C are acceptable and TT will be more appreciated
Q:What is the lead time of the shipment?
A:It depends on order quantities. Generally speaking, the delivery time will be within 2 to 4 weeks.Contact us for the exact time
Q：What is your Warranty？
A:We provide 1 year Warrantly
Q:How to keep your equipments from corrosion？
A:Various anticorrosive forms are available, such as spray paint, FRP anticorrosive etc.
