Quick Details
-
Brand Name:
-
SFVA
-
Standard or Nonstandard:
-
Standard
-
valve body color:
-
cilent request
-
Applicable temperature:
-
0~80 degree
-
Normal pressure:
-
1.0Mpa,1.6Mpa
-
Body test pressure:
-
1.5Mpa,2.4Mpa
-
Sealing test pressure:
-
1.1Mpa,1.76Mpa
-
control valve type:
-
Diaphragm type
-
Epoxy thickness:
-
300 um
-
Flow direction:
-
one way
-
body material:
-
GGG50
Quick Details
-
Port Size:
-
DN50-DN600
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
ZL47F
-
Brand Name:
-
SFVA
-
Standard or Nonstandard:
-
Standard
-
valve body color:
-
cilent request
-
Applicable temperature:
-
0~80 degree
-
Normal pressure:
-
1.0Mpa,1.6Mpa
-
Body test pressure:
-
1.5Mpa,2.4Mpa
-
Sealing test pressure:
-
1.1Mpa,1.76Mpa
-
control valve type:
-
Diaphragm type
-
Epoxy thickness:
-
300 um
-
Flow direction:
-
one way
-
body material:
-
GGG50
Product Application
Product Presentation:

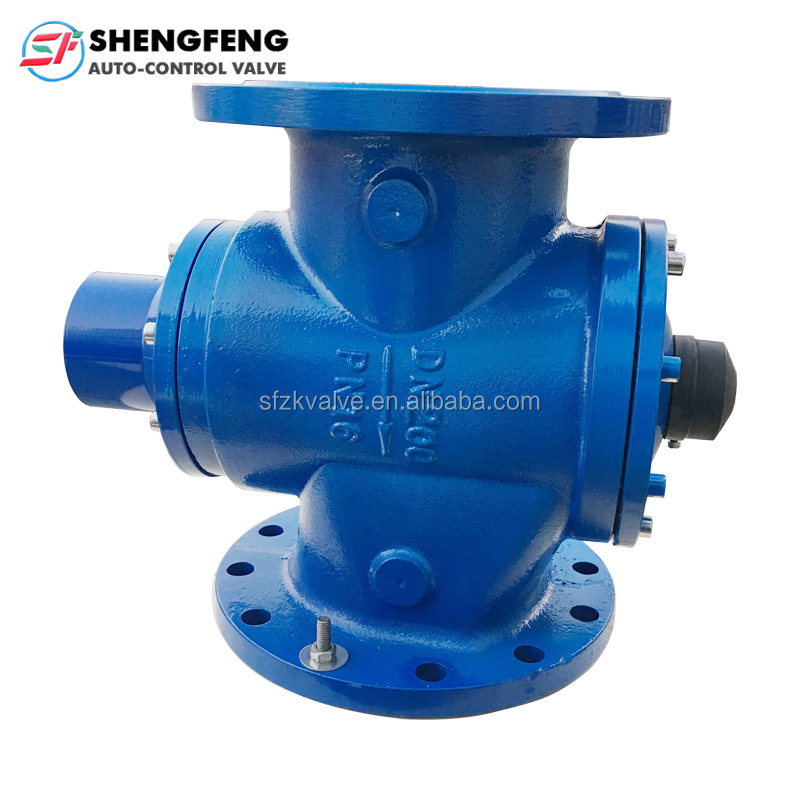

This is such a valve as using the self pressure variation to realize self control while keep the flow through this control system unchanged. With a flow indication, it is easily adjusted and suitable for the flow control of heat supply, air-conditioning etc. non-corrosive media. Through once adjustment before running can get the system's flow automatically constant at the required set value.
Execution standard:
Face-to-face dimension:GB/T 12221
Flange Dimension: GB/T 17241.6
Testing: GB/T 13927
Main Features
1. this series of products are patented shape.
2. smooth appearance, convenient modification.
3. can device isolation board, achieve double room control, so that the valve is more operational balance.
4. with a wide body, streamline and other flow area design, the valve resistance is small.
5. in the pipeline neutral horizontal installation can be, the performance of the same.
