Quick Details
-
Surface Treatment:
-
Polished
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Qiqian
-
Model Number:
-
Bn-1
-
Product name:
-
Ploymer Concrete Drain Channe
-
Model Type:
-
U100
-
Material:
-
Ploymer Concrete
-
Color:
-
Customer Made
-
Keyword:
-
Ploymer Concrete Drain Channe pc
-
Inside Size:
-
1000*100*120mm
-
Outside Size:
-
100-130-140mm
-
R&D:
-
Avaliable
-
Quality:
-
Grade EN1433
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Surface Treatment:
-
Polished
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Qiqian
-
Model Number:
-
Bn-1
-
Product name:
-
Ploymer Concrete Drain Channe
-
Model Type:
-
U100
-
Material:
-
Ploymer Concrete
-
Color:
-
Customer Made
-
Keyword:
-
Ploymer Concrete Drain Channe pc
-
Inside Size:
-
1000*100*120mm
-
Outside Size:
-
100-130-140mm
-
R&D:
-
Avaliable
-
Quality:
-
Grade EN1433
Product Description

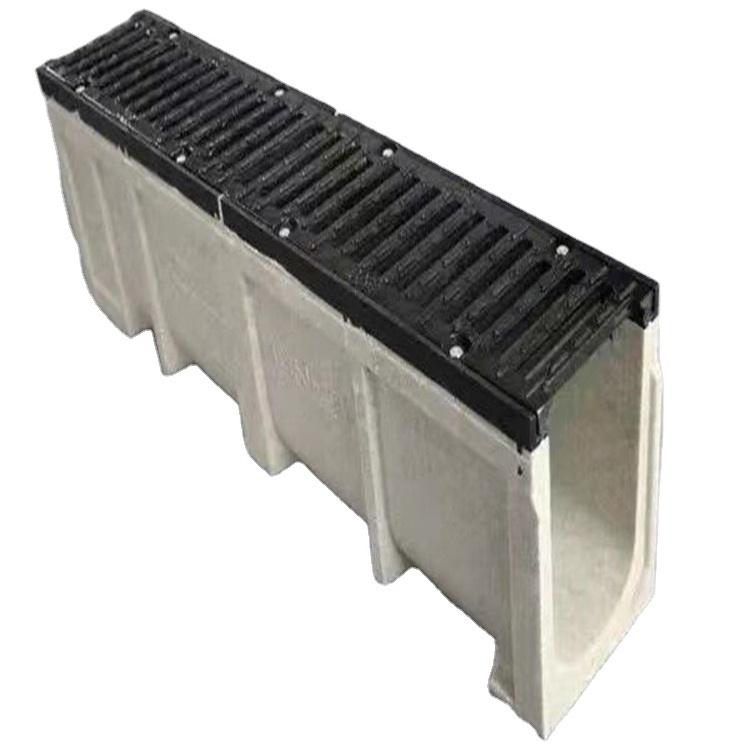

About Polymeric concrete Drain Channels
1) Polymeric concrete is a durable channel with high strength and chemical resistance. It is long lasting and has no hazard to environment, so can widely used for drainage systems.
2) All our channels are made of polymer concrete, 1000mm long and the CO (internal width) is from 100mm to 400mm with variety external height, comply with EN1433, class from A15 to F900. About the Cover's material we usually use N
odular
Cast Iron,Stainless Steel,
Polymeric concrete
and Galvanized Steel.
Polymeric Concrete Property:
Pressure Resistance:>1423kg/cm
2
Breaking Resistance:>348kg/cm
2
hydroscopicity:<0.05%
Density:2.1-2.44kg/dm
3
Permeability:0mm
Specification
Product Data Sheet & DWG
|
Type Model
|
Inside Size(mm)
|
Outside Size(mm)
|
Load Level
|
Cover Type
|
|
FTUPR-100
|
L*Wi*Hi=1000*100*(120~180)
|
L*Wo*Ho=1000*130*(140~200)
|
A15
|
Stainless Steel Linear/Steel Grating/Cast Iron/*PC
|
|
FTUPR-150
|
L*Wi*Hi=1000*150*(140~280)
|
L*Wo*Ho=1000*190*(160~300)
|
B125
|
*Stainless Steel Linear/*Steel Grating/Cast Iron/PC
|
|
FTUPR-200
|
L*Wi*Hi=1000*200*(160~380)
|
L*Wo*Ho=1000*240*(180~400)
|
C250
|
Stainless Steel Linear/*Steel Grating/*Cast Iron/PC
|
|
FTUPR-250
|
L*Wi*Hi=1000*250*(210~390)
|
L*Wo*Ho=1000*290*(230~410)
|
D400
|
Stainless Steel Linear/*Steel Grating/*Cast Iron/PC
|
|
FTUPR-300
|
L*Wi*Hi=1000*300*(280~460)
|
L*Wo*Ho=1000*340*(300~480)
|
E600
|
Stainless Steel Linear/*Steel Grating/*Cast Iron/PC
|
|
FTUPR-400
|
L*Wi*Hi=1000*400*480
|
L*Wo*Ho=1000*440*500
|
A15-F900
|
*Stainless Steel Linear/*Steel Grating/*Cast Iron/*PC
|
Full Integrated Drainage Systems
Application Areas
√Car Parks √Shopping Centre √Pathways √Driveways √Petrol Forecourts √Footpaths √Retail Parks √Office Blocks √Garden Centre √Stadiums √Sport Tracks √Leisure Centre √Colleges √Warehouses √Garages √Plazas √Courtyards√Residential area √Pedestrian areas √Loading Docks √Airport runways and so on
Features:
1)Light weight, and strong bearing capacity.
2)Smooth surface, low water absorption permeability.
3)U-shaped section can increase drainage capacity and strengthen self-cleaning function.
4)High strength, grind resistance, solid and reliable, strong practicality.
5)Good drainage performance, rapid drainage and discharge of sediment.
6)Ageing resistance, good stability.
7)Chemical resistance, protect water source.
7)Chemical resistance, protect water source.
8)Easy installation, shorten the construction period.
9)Zero penetration, no risk of frost cracking
Load Class
Load Class
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
