Quick Details
-
Color:
-
all color
-
Panel Size:
-
44*30.6*8.0mm, 44*30.6*8.0mm
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
1.5 inch 7 segment led display
-
name:
-
1.5 inch 7 segment led display
-
Display Function:
-
Graphics
-
Tube Chip Color:
-
FULL COLOR
-
Pixels:
-
25mm
-
digit height:
-
1.5 inch
-
segment color:
-
white diffused
-
surface color:
-
black or gray
-
emitting color:
-
red,yellow,green,blue,white,etc
-
Warranty:
-
2 Years
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
JSTRONIC
-
Color:
-
all color
-
Panel Size:
-
44*30.6*8.0mm, 44*30.6*8.0mm
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
1.5 inch 7 segment led display
-
name:
-
1.5 inch 7 segment led display
-
Display Function:
-
Graphics
-
Tube Chip Color:
-
FULL COLOR
-
Pixels:
-
25mm
-
digit height:
-
1.5 inch
-
segment color:
-
white diffused
-
surface color:
-
black or gray
-
emitting color:
-
red,yellow,green,blue,white,etc
-
Warranty:
-
2 Years
Product Description
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
Specification
*Ultra segment intensity
*Wide viewing angle
*Range of colors
*Gray or black face White segment
*RoHS compliant
*7 segment display 1.5 inch

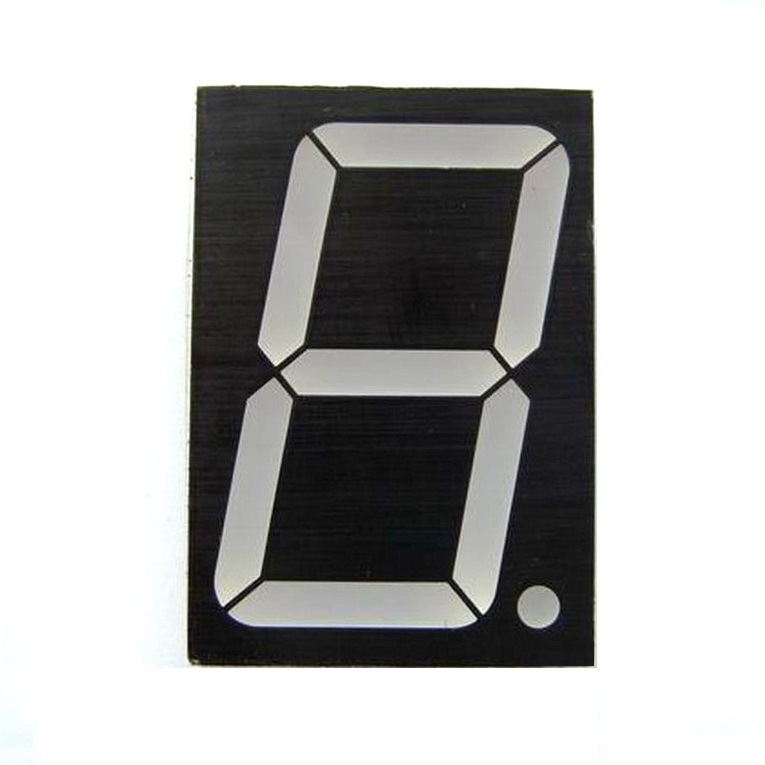

1 digit 1.5 inch 7 segment led bicolor display
Electro/Optical Characteristics If=20mA Ta=25 C
*Wide viewing angle
*Range of colors
*Gray or black face White segment
*RoHS compliant
*7 segment display 1.5 inch
1 digit 1.5 inch 7 segment led bicolor display
Electro/Optical Characteristics If=20mA Ta=25 C
|
Part Number
|
|
EMITTED COLOR
|
(nm)
|
Vf(V)
|
|
Iv(mcd)
|
|
|||
|
Common Cathode
|
Common Anode
|
|
|
Type
|
Max
|
Min
|
Typ
|
|||
|
JSD-15011AUEUG
|
JSD-15011BUEUG
|
AlGaInP/GaAs ultra red
|
625
|
2.0
|
2.5
|
40
|
60
|
|||
|
|
|
AlGaInP/GaAs Yellow Green
|
574
|
2.0
|
2.5
|
10
|
15
|
|||
|
JSD-15011AUEUB |
JSD-15011BUEUB |
AlGaInP/GaAs Ultra red
|
625
|
2.0
|
2.5
|
40
|
60
|
|||
|
|
|
InGaN/Sic Ultra Ultra Blue
|
470
|
3.2
|
3.8
|
40
|
50
|
|||
|
JSD-15011AUEPG
|
JSD-15011BUEPG
|
AlGaInP/GaAs Ultra red
|
625
|
2.0
|
2.5
|
40
|
60
|
|||
|
|
|
InGaN/Sic Pure Green
|
525
|
3.2
|
3.8
|
150
|
200
|
|||
1.We can supply you all kinds of led 7 segment display
---Digit Size:From 0.25" to 5"
---Digit Number:1,2,3,4,5 to 6 digits
2.7 Segment and 14 Segment both avaliable.
3.Available Color:red,yellow,amber,blue,green,white,bicolor.
4.Available Surfacce color:Grey or Black.
5.Lens Color:White diffused or same as emiting color diffused.
---Digit Size:From 0.25" to 5"
---Digit Number:1,2,3,4,5 to 6 digits
2.7 Segment and 14 Segment both avaliable.
3.Available Color:red,yellow,amber,blue,green,white,bicolor.
4.Available Surfacce color:Grey or Black.
5.Lens Color:White diffused or same as emiting color diffused.
