Quick Details
-
Model Number:
-
sacrificial anodes, sacrificial anode
-
Shape:
-
Custom, as per request
-
Material:
-
Magnesium Alloy
-
Chemical Composition:
-
Magnesium Anode, HP/H1
-
Product name:
-
wholesale cheap cathodic protection cast magnesium alloys anode
-
Color:
-
Silver
-
Type:
-
as required
-
Dimensions:
-
Customer's Demands
-
Powder or not:
-
Not Powder
Quick Details
-
Application:
-
cathodic protection, cathodic protection
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HongTai, HT
-
Model Number:
-
sacrificial anodes, sacrificial anode
-
Shape:
-
Custom, as per request
-
Material:
-
Magnesium Alloy
-
Chemical Composition:
-
Magnesium Anode, HP/H1
-
Product name:
-
wholesale cheap cathodic protection cast magnesium alloys anode
-
Color:
-
Silver
-
Type:
-
as required
-
Dimensions:
-
Customer's Demands
-
Powder or not:
-
Not Powder

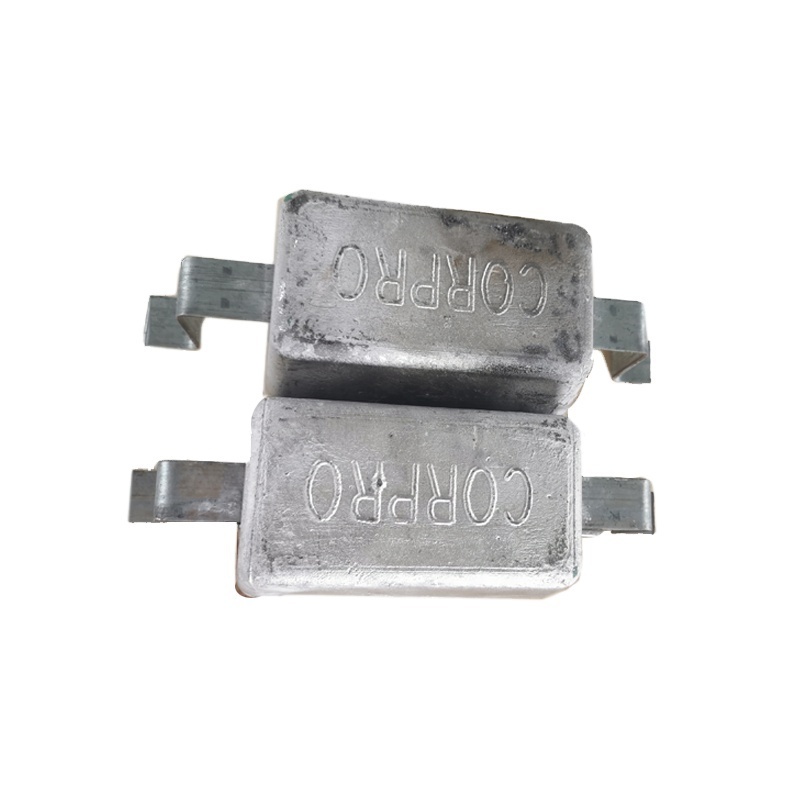

wholesale cheap cathodic protection cast magnesium alloys anode
Sacrificial Magnesium anodes are widely used for cathodic protection in underground steel pipelines, tanks, boilers, condensers, water heaters, ship hulls and marine structures applications, because it has the greatest driving potential of any other metals.
HONGTAI provides a complete serial of both high potential(HP) and normal potential (H1) magnesium anode types and styles for your applicants of CP system. We can also take the specifications as per customers’ requirements.
High Potential Cast Magnesium Anode
High Potential (HP) Cast Magnesium anode is the best choice for CP systems in high resistivity soil since it is made from the high purity magnesium which provides higher electrochemical and efficiency.
Chemical composition of HP Mg anode, %
|
Alloy |
Al
|
Mn |
Si
|
Cu
|
Ni
|
Fe
|
Other impurity(each) (max) |
Total Impurities (max) |
|
Mg-Mn |
0.01 |
0.50-1.30 |
0.05 |
0.005 |
0.001 |
0.01 |
0.05 |
0.30 |
Electrochemical properties of HP Mg anode
|
Open voltage(-V) |
Closed voltage(-V) |
Actual capacity(A.h/kg) |
Efficiency (%) |
|
1.70-1.75 |
1.58-1.62 |
1,150 |
50 min |
Normal Potential (H1) Cast Magnesium Anode
Normal Potential (H1) Magnesium anode is used in low resistivity soil.
Chemical composition of H1 Mg anode, %
|
Alloy |
Al |
Zn |
Mn |
Si
|
Cu
|
Ni
|
Fe
|
Total of Impurities (max) |
|
AZ63B |
5.30-6.70 |
2.50-3.50 |
0.15-0.70 |
0.10 |
0.02 |
0.002 |
0.003 |
0.30 |
Electrochemical properties 1- of H1 Mg anode
|
Open voltage(-V) |
Closed voltage(-V) |
Actual capacity(A.h/kg) |
Efficiency(%) |
|
1.50-1.55 |
1.45-1.50 |
1,230 min |
55 min |
Magnesium anode rod specifications for the "D" type, "R" type, "S" type and special type
* We also take customers’ requirements order.
Application
