Quick Details
-
Brand Name:
-
Zhongyi Smart
-
Accuracy Class:
-
Class 1
-
Output Voltage:
-
220V
-
Operating Temperature:
-
-25~55℃
-
Dimensions:
-
155.5mm x 110mm x 62.5mm
-
Storage and operating humidity:
-
≤85%
-
Reference frequency:
-
50HZ/60HZ
Quick Details
-
Phase:
-
Single Phase
-
Measuring Energy Range:
-
0-999999.99KWh/MWh
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Zhongyi Smart
-
Accuracy Class:
-
Class 1
-
Output Voltage:
-
220V
-
Operating Temperature:
-
-25~55℃
-
Dimensions:
-
155.5mm x 110mm x 62.5mm
-
Storage and operating humidity:
-
≤85%
-
Reference frequency:
-
50HZ/60HZ
Product introduction:
IC card prepaid meter, in addition to the ordinary energy meter measurement functions, especially the user need to buy electricity FIRST, USE second, after run out of power if the user does not continue to buy electricity, the meter will automatically cut off, this meter is best way to solve payment collection problem, it also has function of anti-tampering, over load protection, management of energy consumption and user information.

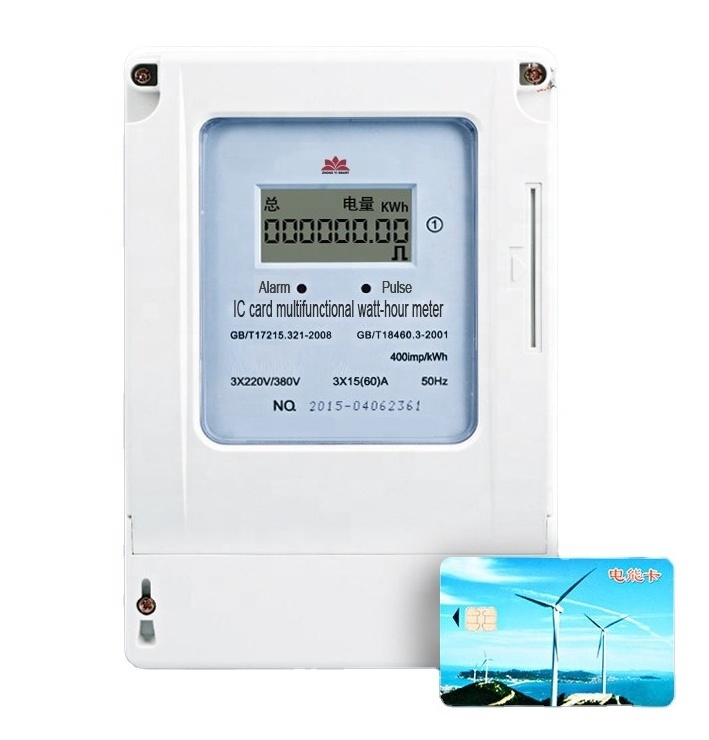

Product appearance:
Technical parameter：
Installation Wall mounted or din rail
Accuracy Class 1
Rated voltage AC 120V
voltage range 0.9~ 1.15Un
Rated current 5(30)A, 15(60)A, 20(80)A 30(100)A
Operation current range 0.05Ib~ Imax
Starting current 0.4%Ib
Rated frequency 50Hz or 60 Hz
Power consumption 2W / 10VA
Relative humidity ≤ 85%
Operation temperature -25°C ~ +55°C
Product features:
♦ ABS anti-flaming Meter case, terminal block is high temperature, moisture resistant
♦ CQC safety proved , Highly reliable special designed IC card entrance
♦ LCD 6+2 digits display, satisfy user demand, maximum 999999.99 kWh.
♦ When the meter balance is reached zero, relay will automatically cut off
♦ The meter can set alarm kWh quantity, indicated by LED flash and secondary notice user the energy is staying Low, it’s in order to remind user to recharge power on time, avoid unnecessary loss.
♦ Load control, over-load automatically switch off, prevent Meter damage
♦ Data can be preserved for more than 10 years without power supply.
♦ Electricity price settable, easy to manage and adjustment, only for new meter or reset the meter before change the price
Wiring Diagram:
Application：
Factory environment
Qualification：
Packing and delivery：
