Quick Details
-
Installation:
-
External
-
Brand Name:
-
RFcard
-
Model Number:
-
MSR90I
-
Place of Origin:
-
Guangdong, China
-
read card type:
-
magnetic card EMV card
-
Read card Rrack:
-
123track
-
Read card format:
-
ISO7811,AMMVA,CADMV
-
Number keys:
-
0
-
Write function:
-
EMV
-
Warranty:
-
1 Year
-
ODM/OEM service:
-
YES
-
Built-in battery:
-
NO
-
One generation:
-
YES
Quick Details
-
Type:
-
Memory Stick Card
-
Interface:
-
usb
-
Card Slots:
-
Single
-
Installation:
-
External
-
Brand Name:
-
RFcard
-
Model Number:
-
MSR90I
-
Place of Origin:
-
Guangdong, China
-
read card type:
-
magnetic card EMV card
-
Read card Rrack:
-
123track
-
Read card format:
-
ISO7811,AMMVA,CADMV
-
Number keys:
-
0
-
Write function:
-
EMV
-
Warranty:
-
1 Year
-
ODM/OEM service:
-
YES
-
Built-in battery:
-
NO
-
One generation:
-
YES

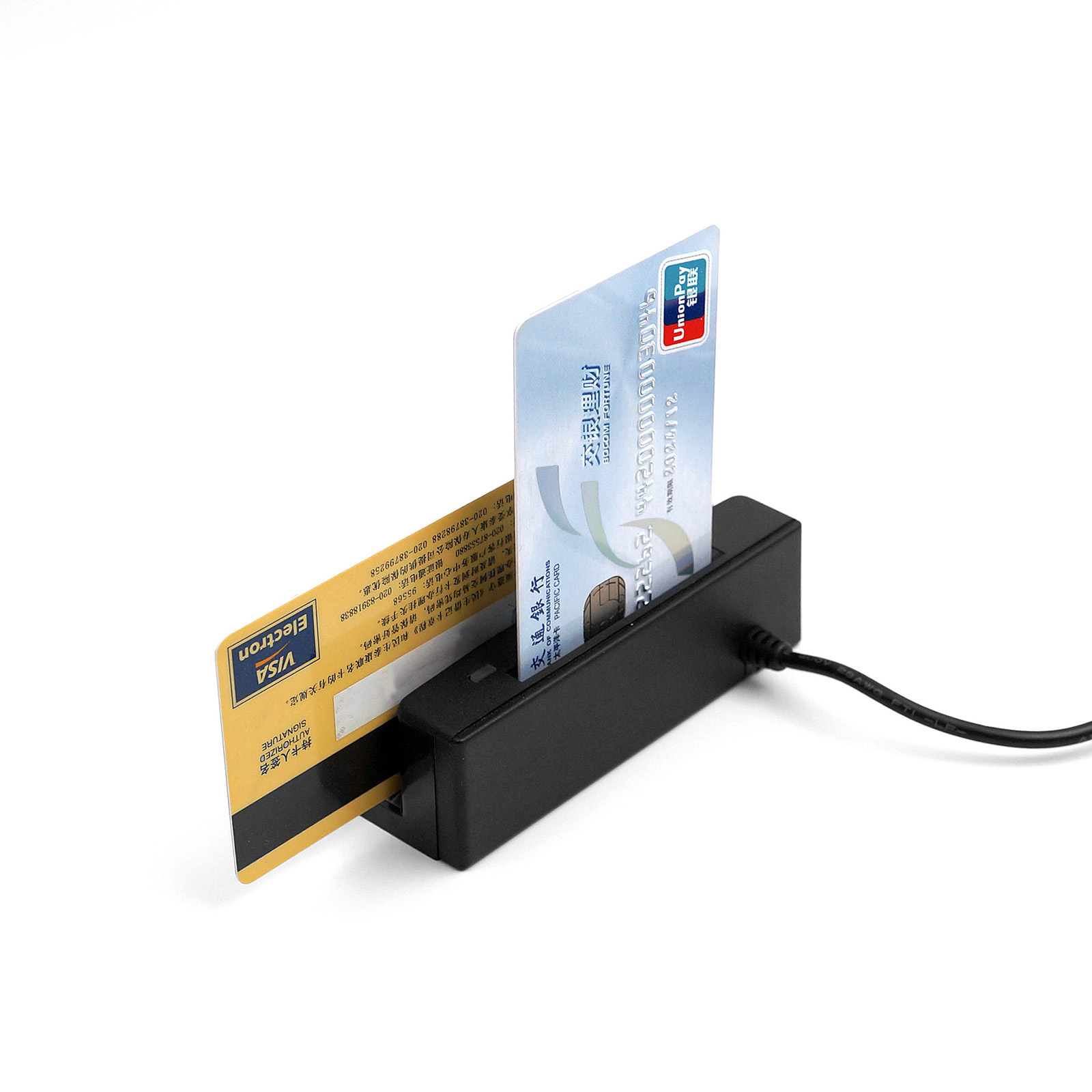

USB Remarkable Quality magnetic card reader smart card reader writer chip card writer and reader
Detailed
programmable magnetic card, IC card reader combo, widely used in industrial, commercial, telecommunications, taxation, banking, insurance, medical and a variety of fees, stored value, query management system. The user can according to actual needs, select the data format and intelligent interface by programming or configuration.
1. Features:
thin, light and beautiful, practical
POST, no additional power supply
can read a variety of memory cards and supports T = 0, T = 1 protocol CPU card
via USB interface to communicate with the computer, support android platform
simple operation, easy connection, plug and play
supports a variety of systems: Windows XP, Windows visa, Windows7, Linux, etc.
variety SDK sample program
2.TECHNICAL SPECIFICATION:
|
Communications |
USB2.0, USB-OTG(Android 3.1 above) |
|
Maximum power consumption |
100 mW |
|
Temperature |
Commercial-grade:-20° ∼ 60 °C Industrial-grade:-20° ∼ 60 °C |
|
Humidity |
90% non- condensing |
|
Anti-static interference |
15KV |
|
Magnetic interference resistance |
19Oersted |
|
Vibration resistance |
Amplitude 0.35mm,Frequency 10-55Hz,Three axis directions sweep vibration |
|
Insulation Resistance |
Hot and humid circumstances(40° , 95%)Insulation resistance should not be less than 5MΩ |
|
Dimensions |
100mm(L) ×34mm(W) × 30mm(H) |
|
Weight |
85g |
|
IC card |
|
|
Reference Standards |
ISO-7816 Class A,B and C |
|
Operating Life |
approx. 100,000 passes |
|
Card thickness |
About 0.75mm |
|
Insert IC card Current |
20mA |
|
Operate IC card |
50mA |
|
Working current |
25mA |
|
IC Card Supported |
AT24C01A/24C02/24C04/24C08/24C16/AT24C64 , SLE4432/4442 , SLE4418/4428 , ISSI 24C01A/16,ISO7816-(1-4) (T=1, T=0) |
|
Magnetic Stripe |
|
|
Reference Standards |
ISO 7811,AMMVA,CADMV and other format |
|
Swipe speed |
3 ~ 60 inches per second |
|
Operating Life |
approx. 300,000 passes |
|
Track position |
3 tracks |
|
Card thickness |
0.76~1.2mm |
|
Working current |
7mA |
