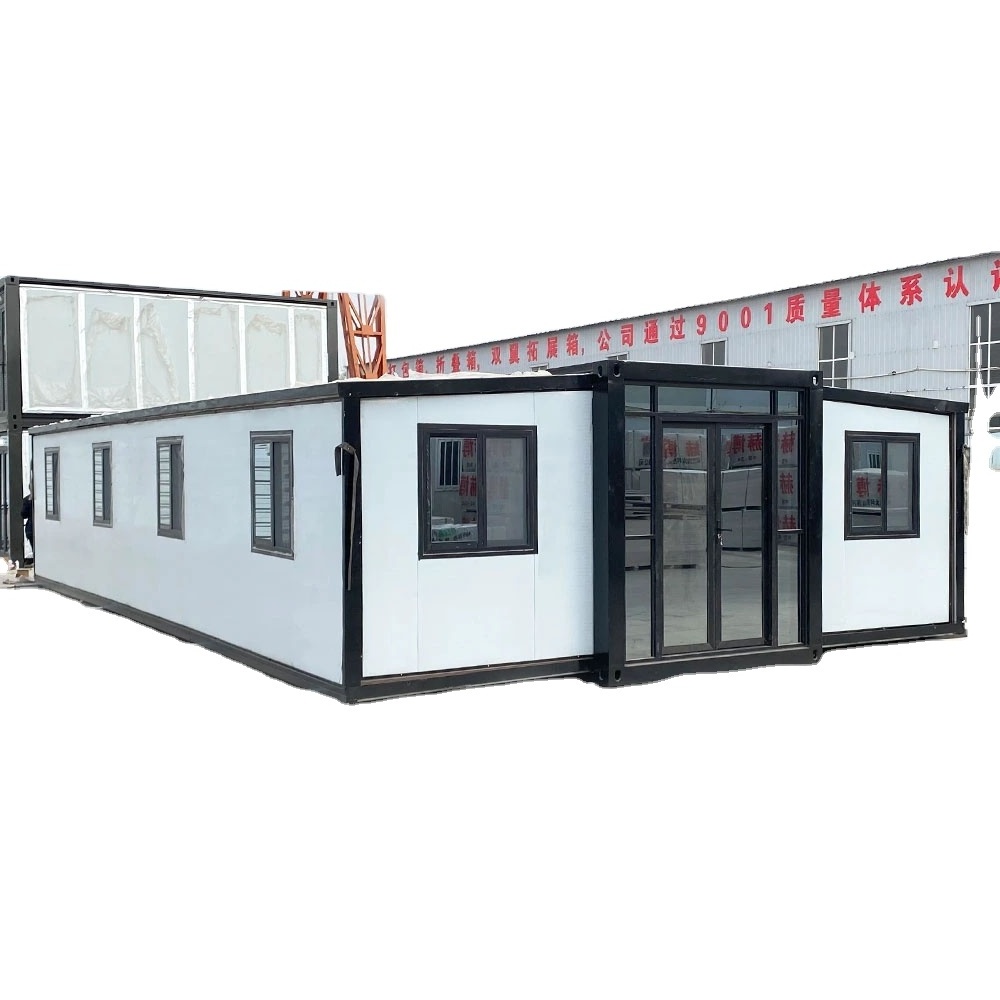

Luxury prefab house ready made economical portable cafe coffee shops expandable house prefabricated house 3 bedrooms and living

Luxury prefab house ready made economical portable cafe coffee shops expandable house prefabricated house 3 bedrooms and living

FOB Reference Price: Get Latest Price

≥1 Sets

US $8700

≥10 Sets

US $6500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Keyword:: Luxury prefab expandable house ready made

Color:: red,blue,white,and others customers can customize

Roof:: 50mm/75mm/100mm/150mm EPS/rockwool/glass fiber

Wall:: 50mm/75mm/100mm/150mm EPS/rockwool/glass fiber

Layout:: can be customized

Life Span:: more than 30 years

Certification:: we can provide the certification you need

Frame:: steel structure

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Ruigang

Product name:: Luxury prefab expandable house ready made

Keyword:: Luxury prefab expandable house ready made

Color:: red,blue,white,and others customers can customize

Roof:: 50mm/75mm/100mm/150mm EPS/rockwool/glass fiber

Wall:: 50mm/75mm/100mm/150mm EPS/rockwool/glass fiber

Layout:: can be customized

Life Span:: more than 30 years

Certification:: we can provide the certification you need

Frame:: steel structure

Project Introduction

Expandable box-type modular house, which includes a box module, foldable roof module; said box module includes a box-type steel structure frame, a base plate set on the steel structure frame, a first hill wall, a second hill wall located on both sides of the steel structure frame and set on opposite sides and corresponding pre-designated doors, windows and pre-built pipelines; the first and second expandable box modules, respectively, are set on both sides of said box module; said foldable roof module includes the first roof panel, the second roof panel; the upper end of the first roof panel, the second roof panel is hingedly connected through the ridge connector; the lower end of the first roof panel, the second roof panel are connected to the longitudinal beams on both sides of the top of the steel structure frame through the hinged connector. The utility model of the box-type movable modular house can be folded during transportation and unfolded during use, which solves the problems of traditional modular buildings with low floor height, limited use area, single roof form and poor user experience.

Product Paramenters

20' Expandable House

Legend Dimensions:

Expanded: L5900*W6470*2540mm Folded:L5900*W2240*H2540mm Indoor net height:2140-2260mm

Interior; can be used as a variety of functional areas, bedroom, living room, bathroom, kitchen, etc.

Application: can be used for office, home, living, flat, etc.
Material: Exterior wall panels available in a variety of colours, patterns and materials!

40' Expandable House

Legend Dimensions:

Expanded: L11800*W6470*H2530mm Folded:L11800*W2290*H2530mm Indoor net height:2140-2260mm

Interior: can be used as a variety of functional areas, bedroom, living room, bathroom, kitchen, etc.

Application: can be used for office, home, living, flat, etc.
Material: Exterior wall panels available in a variety of colours, patterns and materials!

ITEM	SPECIFITIONS
Size	According to your requirement
Frame material	Light steel Q235B,Q345B
Wall material	50-150mm EPS/PU/rock wool/glass wool sandwich pane
Roof material	50-150mm EPS/PU/rock wool/glass wool sandwich pane
Color	Red/blue-sea/off-white or according to your requirement
Window	Aluminum alloy sliding window
Door	Aluminum alloy sliding door/steel door/PVC door/fire door

Factory Strength

Qingdao Ruigang Heavy Industry Co., Ltd. is a high-tech enterprise integrating steel structure design, generation and
installation.

It is located in the beautiful coastal city—Qingdao West Coast New District; it covers an area of over 50,000 square meters and has 115 employees; the factory currently has three A workshop and an office area.

Ruigang Heavy Industry has accumulated rich experience in exporting over the past ten years, with an annual export value of over 20 million U.S. dollars, and its products are sold in more than 70 countries and regions; it has three complete production lines and a professional design and production team, relying on science, Advanced technology highly guarantees the quality of products; at the same time, it has a number of qualification certificates such as quality management, environmental management, occupational health and safety management, etc.
