Quick Details
-
Brand Name:
-
LINO
-
Model Number:
-
LNS-102
-
Max. Working Pressure:
-
150psi
-
Name:
-
pressure switch pneumatic hydraulic refrigeration pressure switch
-
Pressure range:
-
0.5~1,3, 7, 13, 24, 50, 90, 150psi
-
Medium:
-
air, motor oil,water etc
-
Max pressure:
-
150psi, 250psi
-
Proof pressure:
-
500psi
-
Switch:
-
direction action, blade contact
-
Contact:
-
SPST- NO, NC
-
TERMINAL:
-
8-32 screws, 1/4 blade
-
Base material:
-
Brass, stainless steel
-
Thread:
-
1/4NPT, 1/8NPT etc
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
12V, 24V
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
LINO
-
Model Number:
-
LNS-102
-
Max. Working Pressure:
-
150psi
-
Name:
-
pressure switch pneumatic hydraulic refrigeration pressure switch
-
Pressure range:
-
0.5~1,3, 7, 13, 24, 50, 90, 150psi
-
Medium:
-
air, motor oil,water etc
-
Max pressure:
-
150psi, 250psi
-
Proof pressure:
-
500psi
-
Switch:
-
direction action, blade contact
-
Contact:
-
SPST- NO, NC
-
TERMINAL:
-
8-32 screws, 1/4 blade
-
Base material:
-
Brass, stainless steel
-
Thread:
-
1/4NPT, 1/8NPT etc
Product Description

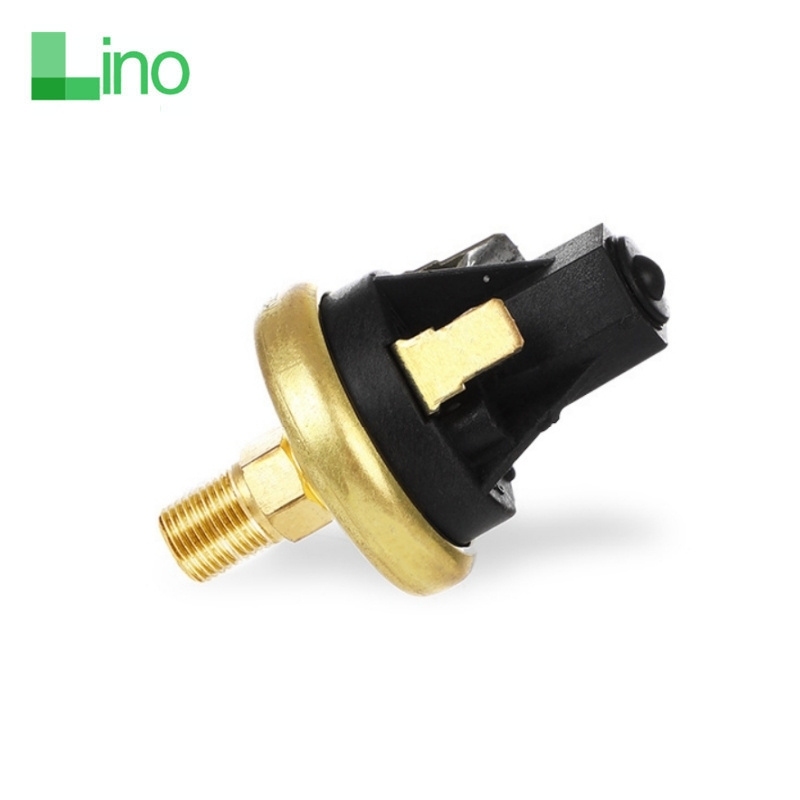

Description of LINO Micro pressure adjustable positive and negative pressure switch pneumatic hydraulic refrigeration pressure switch
LINO Micro pressure adjustable positive and negative pressure switch pneumatic hydraulic refrigeration pressure switch
are specifically designed to withstand long hours of operation in applications. This air compressor pressure switch is set at the factory but can be adjusted in the field. Pressure switches feature different diaphragms for compatibility with a variety of fluids and a variety of terminals, including Metri-Pack connectors that create a tight seal when connected. Outstanding design advantages include durable construction, compact size and enhanced set point integrity.

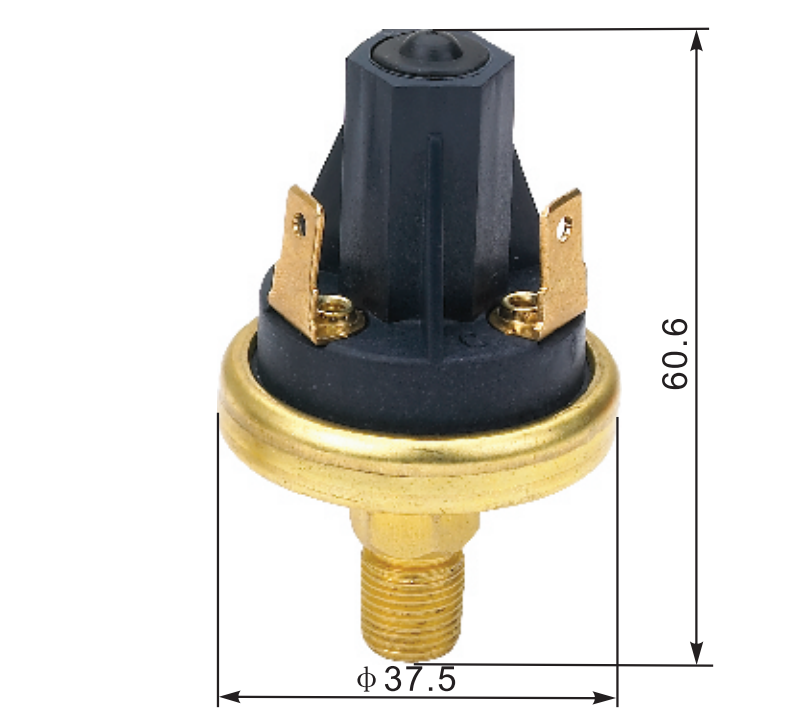

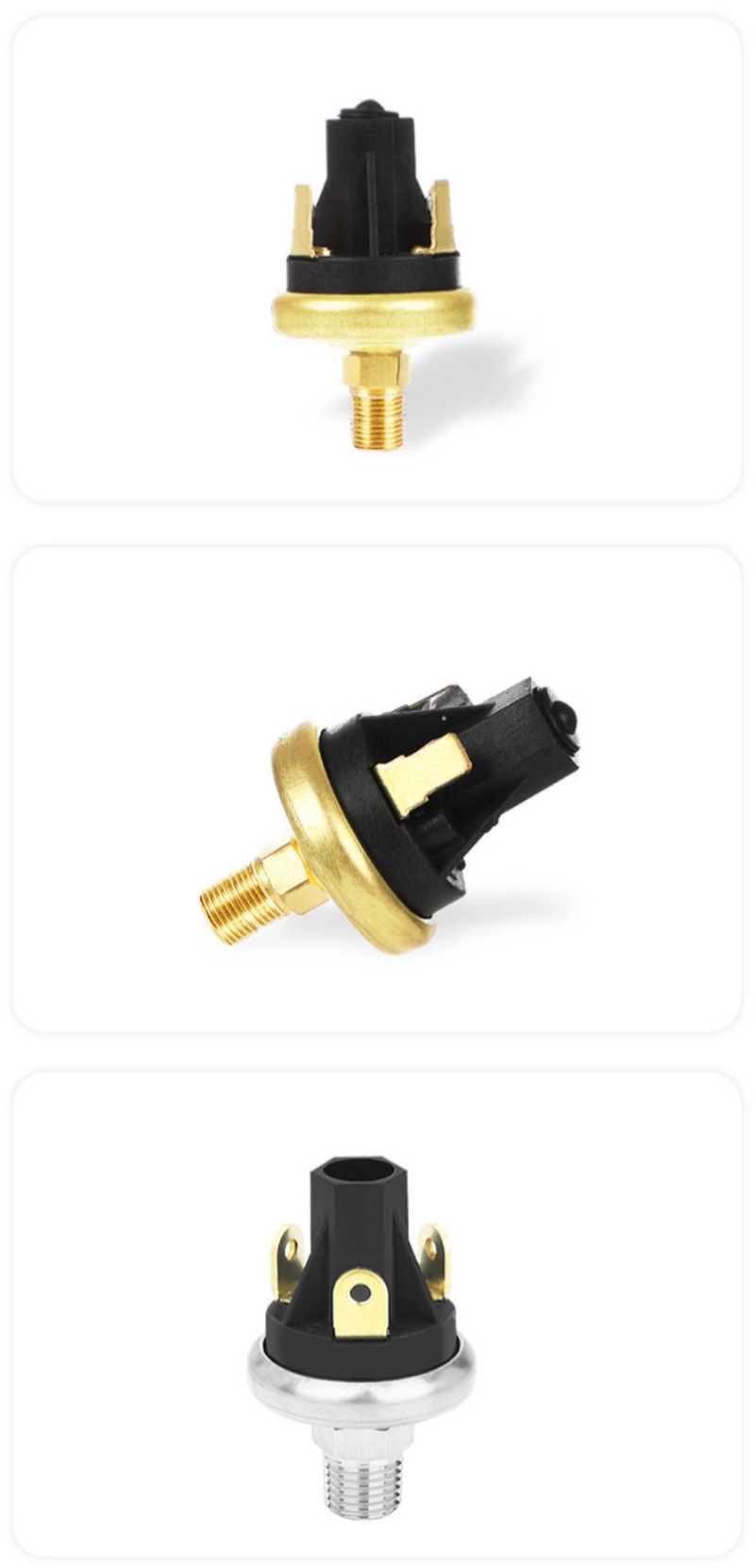

Details Images

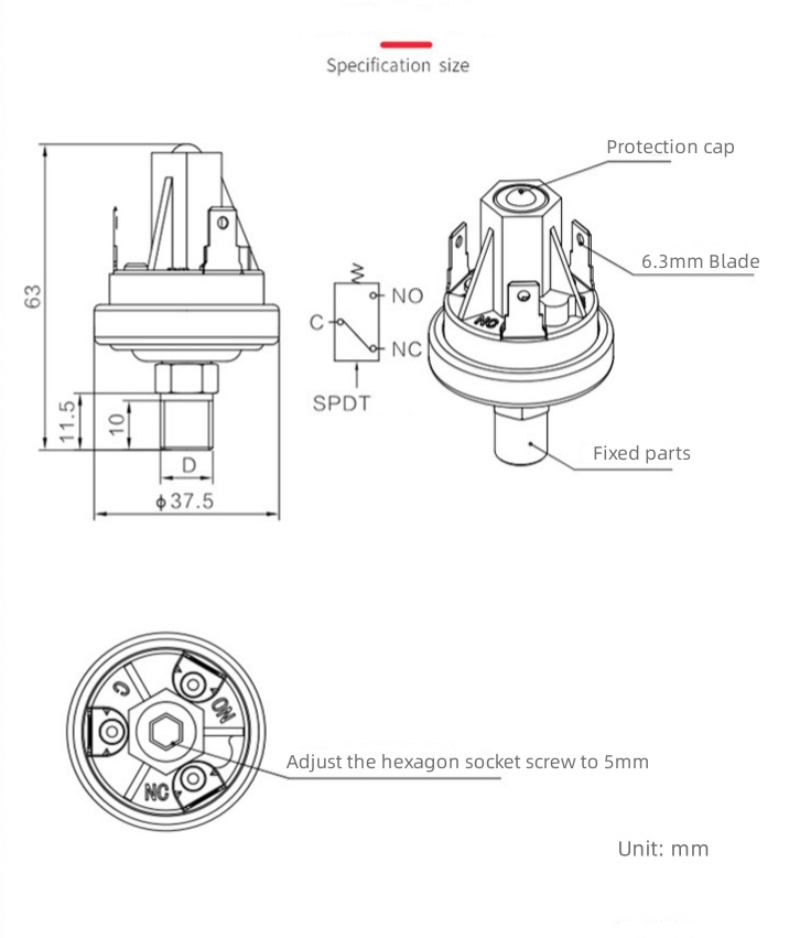

Specification
|
Item
|
LINO Micro pressure adjustable positive and negative pressure switch pneumatic hydraulic refrigeration pressure switch
|
|
|
||
|
Medium
|
air, motor oils, transmission oils, jet fuels and other similar hydrocarbon media: water
|
|
|
||
|
Pressure set point
|
Factory set from 0.5~150PSI
|
|
|
||
|
Max operation pressure
|
150PSI for 0.5~24PSI set point range
250PSI for 25-150PSI set point range
|
|
|
||
|
Proof pressure
|
500PSI
|
|
|
||
|
Burst pressure
|
750PSI for 0.5~24PSI set point range
1250PSI for 25-150PSI set point range
|
|
|
||
|
Operating temperature
|
-40 to 120 ℃
|
|
|
||
|
Switch type
|
Direct action, blade contact
|
|
|
||
|
Electric rating
|
Resistive: 15AMP-6VDC
8AMP-12VDC
4AMP-24VDC
Inductive: 1AMP-120VAC
0.5AMP-240VAC
|
|
|
||
|
Contact Arrangement
|
SPST-NO, NC
1 circuit adjustable dual circuit, or 2 circuits adjustable dual circuit.
Also available are NO/NO dual circuit and NC/NC dual circuit.
|
|
|
||
|
Terminals
|
#8-32 screws, 1/4 Blade
|
|
|
||
|
Connection
|
1/8-27NPT male
|
|
|
||
|
Material
|
Contact: Silver alloy, golad plated
Base: Brass
Cover: Glass reinforced polyester
Diaphragm: Polyimide film
|
|
|
||
|
Option
|
Plated steel, plastic or stainless steel base; various base connector thread sizes; wire leads（potted & sealed）; Teflone or EPDM diaphragm
|
|
|
||
