Quick Details
-
Max. Loading Capacity:
-
4000
-
Weight (KG):
-
4000 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Rumi
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Power (kW):
-
110 kW
-
Marketing Type:
-
hot product 2020
-
Product name:
-
Paint lab pneaumtic lift disperser
-
Function:
-
stirring
Quick Details
-
Barrel Volume (L):
-
4000L
-
Max. Loading Volume (L):
-
4000 L
-
Range of Spindle Speed(r.p.m):
-
100 - 1440 r.p.m
-
Max. Loading Capacity:
-
4000
-
Weight (KG):
-
4000 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Rumi
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Power (kW):
-
110 kW
-
Marketing Type:
-
hot product 2020
-
Product name:
-
Paint lab pneaumtic lift disperser
-
Function:
-
stirring
PRODUCTS DESCRIPTION

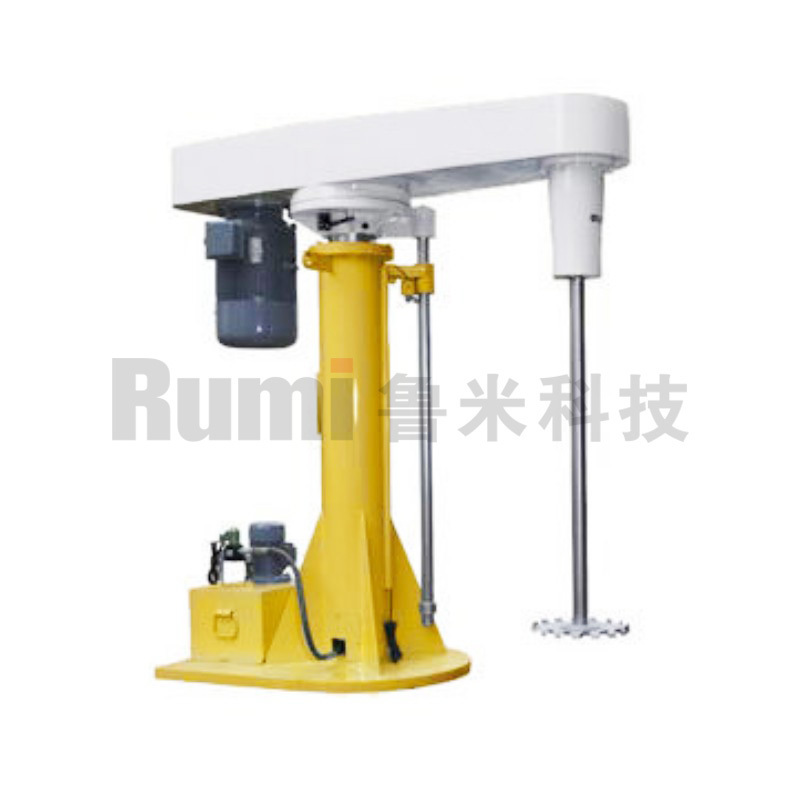

Paint Dispersing Machine
RMFS series machines belongs
high speed dispersers
.
It consist of a driven vertical shaft and a high shear disk type blade.
The blade rotates at a high speed and creates a radial flow pattern within a stationary mix vessel. The blade creates a vortex that pulls in the contents of the vessel to the blade's sharp edges. The blade surfaces then mechanically tear apart solids thereby reducing their size, and at the same time dispersing them among the liquid used as the carrier fluid.
High Speed Dispersers are ideal for dispersions that are up to a maximum of approx. 50,000 centipoise. When used in conjunction with Multi-Shaft Mixers, they can be useful to several hundred thousand centipoise.
High Speed Dispersers are ideal for dispersions that are up to a maximum of approx. 50,000 centipoise. When used in conjunction with Multi-Shaft Mixers, they can be useful to several hundred thousand centipoise.
Characteristic:
1.Stable and Flexible lift
2. Wide range from 2.2kW to 90 kW
3.Installation method: mounted on floor or platform
4.Motor type: Explosion Proof Type or ordinary type
Technical Parameter:
|
Model
|
Power
(kW)
|
Rotation Speed
(rpm)
|
Processing Capacity
(L)
|
Travel
(mm) |
Weight
(kg)
|
Dimensions
(mm)
|
|
RMFS-2.2
|
2.2
|
0-1440
|
50-150
|
600
|
400
|
1150*530*1400
|
|
RMFS-4.0
|
4
|
0-1440
|
50-200
|
700
|
450
|
1450*530*1550
|
|
RMFS-5.5
|
5.5
|
0-1440
|
80-250
|
800
|
600
|
1720*750*1710
|
|
RMFS-7.5
|
7.5
|
0-1440
|
100-300
|
800
|
700
|
1720*750*1710
|
|
RMFS-11
|
11
|
0-1440
|
100-400
|
900
|
750
|
1720*750*1810
|
|
RMFS-15
|
15
|
0-1440
|
100-500
|
900
|
800
|
1720*750*1810
|
|
RMFS-22
|
22
|
0-1440
|
150-1000
|
1100
|
1100
|
2020*900*2110
|
|
RMFS-30
|
30
|
0-1440
|
200-1200
|
1100
|
1200
|
2020*900*2110
|
|
RMFS-37
|
37
|
0-1440
|
300-2000
|
1200
|
1300
|
2400*1000*2400
|
|
RMFS-45
|
45
|
0-1440
|
500-2000
|
1200
|
1400
|
2400*1000*2400
|
|
RMFS-55
|
55
|
0-1440
|
1000-2000
|
1300
|
1500
|
2900*1100*2650
|
|
RMFS-75
|
75
|
0-1440
|
2000-4000
|
1800
|
3000
|
3000*1100*3290
|
|
RMFS-90
|
90
|
0-900
|
4000-6000
|
2300
|
3500
|
3000*1100*3290
|
MORE PRODUCTS
MIXERS and DISPERSERS

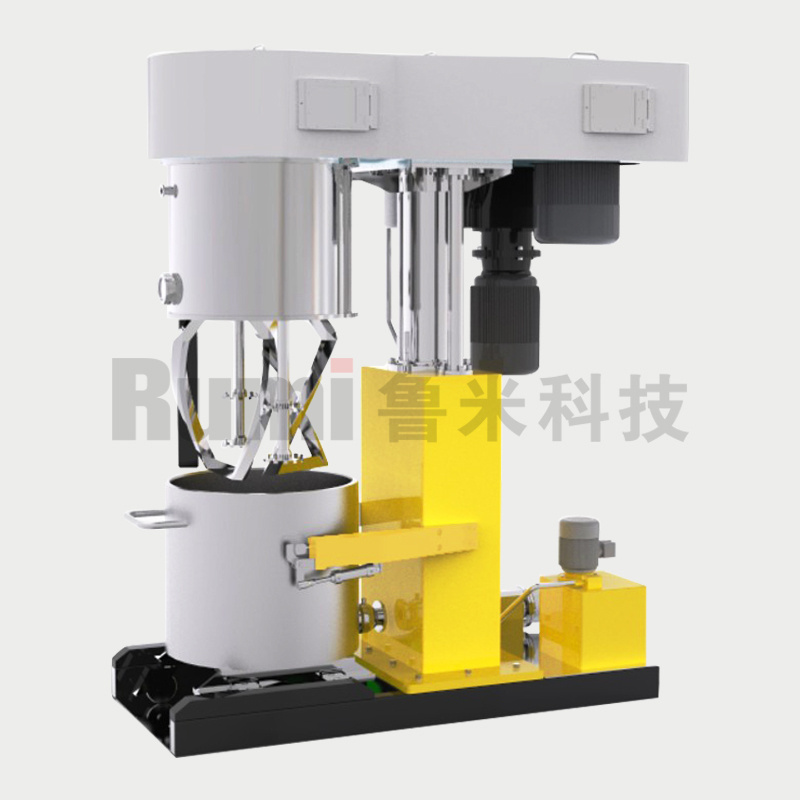

Planetary Mixer

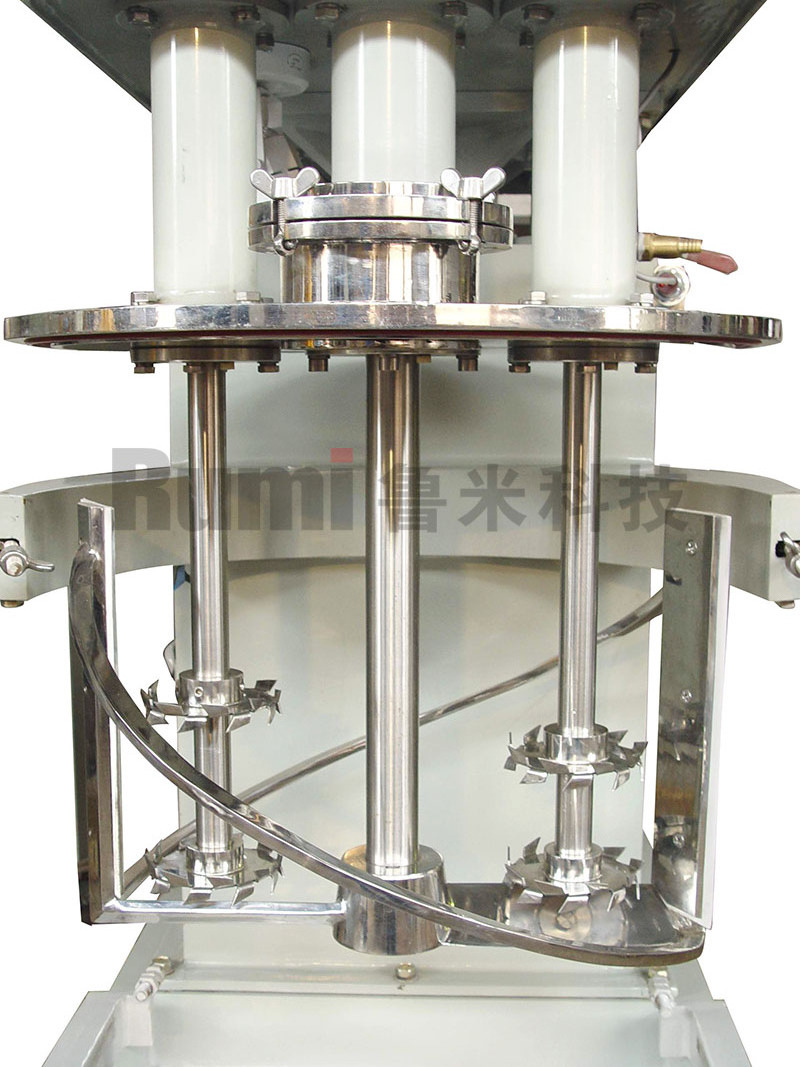

Three-shaft Mixer
