Quick Details
-
Torque output:
-
50 NM- 600NM
-
Working Pressure:
-
0-4.0 Mpa(40bar)
-
Temperature:
-
-25 to 60 Degree Celsius
-
Size Scope:
-
ball valve,15-250(mm); butterfly valve 50-800(mm)
-
Open/Close time:
-
20 -- 30 sec
-
Type:
-
Butterfly/Screw/flange
-
Body material:
-
SS304/PVC/Cast Iron
-
Other:
-
4-20mA 0-10V modulating optional
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Product name:
-

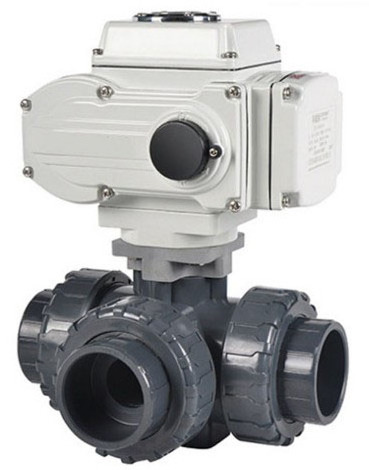

3 three way motorized pvc ball valve
-
voltage:
-
220V 380V 24V 12V
-
Torque output:
-
50 NM- 600NM
-
Working Pressure:
-
0-4.0 Mpa(40bar)
-
Temperature:
-
-25 to 60 Degree Celsius
-
Size Scope:
-
ball valve,15-250(mm); butterfly valve 50-800(mm)
-
Open/Close time:
-
20 -- 30 sec
-
Type:
-
Butterfly/Screw/flange
-
Body material:
-
SS304/PVC/Cast Iron
-
Other:
-
4-20mA 0-10V modulating optional
CTB two way motorized pvc ball valve with electric actuator 220V 380V 24V 12V three way motorized pvc ball valve with electric actuator 220V 380V 24V valve pvc 3 way pvc valvelve
50mm electric actuated ball valve
Valve electric appliance owns characteristics of special design, beautiful appearance,
strong function, operation endurance exceeding ten times of standard of same kind of
product, it may be called to be endurable as diamond. The rotation valve electric
appliance series product has a completely new appraisal from customers with its super
performance and peerless advantage.
1.Powerful function: intelligently, proportionally type, switch type, it has all kinds of
signal output type you wish for;
2.Small volume: the volume is just about thirty percent of product of same kind;
3.Be portable: its weight is just about thirty percent of product of same king;
4.Beautiful appearance: outer casing is pressure-cast with Al alloy, fine and evenly,
reducing electromag-netic disturbance;
5.Wear-rseistance: the worm-wheel output axle integration design avoids the stitch
closure in connection place of key, the transmission precision high, forged with special
copper alloy, with features of high strength and super wear-resistance;
6.Safety quarantee: has passed AC1500v pressure-withstand test, F grade of
insulated electric machine, which guarantees the operation safety;
7.Easily forming complete set: adopting single-phase power, simplifying wire
connection from outside also can be 380V DC power;
8.Using simply: don’t need add-oil, point-check, and owns performance of waterproof
and antirust, could be installed at any angle;
9.Protection appliance: double position-limiting, over-hot protection, overload
protection(optionally);
10.Many kinds of speed: whole stroke time has many kinds as
9s,13s,15s,30s,100s(before dispatching from the factory in order to establish);
11.Antirust and anticorrosion: complete-machine support, both coupling and screw are
made of stainless steel;
12.Intelligently numerically-control: the function of intelligently controlling module
height is integrated into electric appliance body, the externally-connected localizer is not
required. Numerically setting, numerically regulating, highly accurate, self-diagnosis,
many functions on one machine.
50mm electric actuated ball valve
50mm electric actuated ball valve
1. Domestic sewage treatment .
2. industrial wastewater treatment .
3. industrial irrigation treatment .
| CTB | CTB005 | CTB010 | CTB016 | CTB025 | CTB050 | CTB100 | CTB200 |
| Power | AC380 AC220 DC24V DC12V | ||||||
| Torque | 20NM | 100NM | 160NM | 250NM | 500NM | 1000NM | 2000NM |
| Opening Time | 20S | 30,60S | 100S | ||||
| Motor Watt | 15W | 23W | 23W | 50W | 90W | 100W | 100W |
| Protection | Overheat protection (automatic restorer) | ||||||
| Input Signal | 4-20mA 1-5V.DC Other options available before delivery | ||||||
| Output Signal | 4-20mA 1-5V.DC Other options available before delivery. | ||||||
| Turning Angel | 0-360° | 0-90° | |||||
| Environmental temperature | -25°~ 60° | ||||||
| Pressure-withstanding value | 1500VAC/Min | ||||||
| Weight | 2.5KG | 3.7KG | 3.7KG | 6.8KG | 8.0KG | 12KG | 12KG |
| Mounting Angle | Any Angle | ||||||
| Waterproof | IP65 | ||||||
| Cabinet Material | Aluminium alloy die-castings | ||||||
| Manual Operation | With Handle | ||||||
| Limit Switch | Electric operation,full open closed limit switch,Manual operation,mechanical block | ||||||
