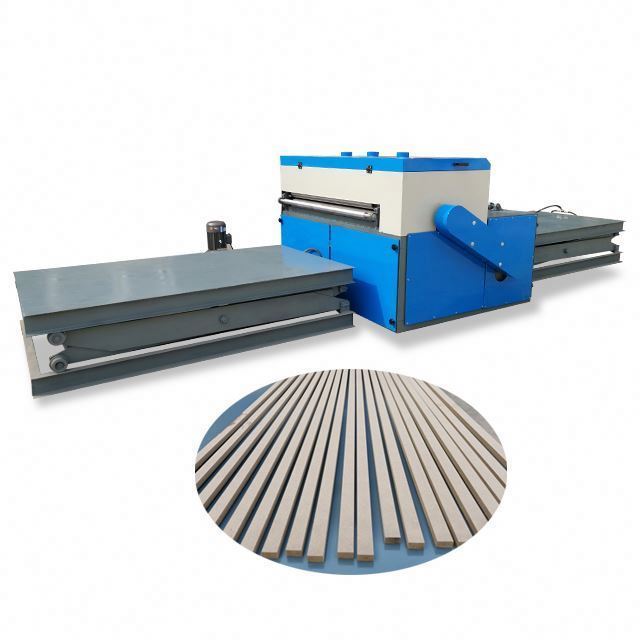

1220mm Log Multi Rip Saw/wood Saw Machines
1220mm Log Multi Rip Saw/wood Saw Machines
1220mm Log Multi Rip Saw/wood Saw Machines
1220mm Log Multi Rip Saw/wood Saw Machines
1220mm Log Multi Rip Saw/wood Saw Machines
1220mm Log Multi Rip Saw/wood Saw Machines
1220mm Log Multi Rip Saw/wood Saw Machines
1220mm Log Multi Rip Saw/wood Saw Machines

1220mm Log Multi Rip Saw/wood Saw Machines

FOB Reference Price: Get Latest Price
≥1 Sets
US $5100
≥3 Sets
US $5000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
380V (can be customized)
Dimension(L*W*H):
2300*2000*1300mm
Application:
wood factory, furniture facotry
Weight (KG):
1800 KG
Power (kW):
18.5
Max.Working Width(mm):
2800mm
Marketing Type:
New Product 2022
Name:
Panel Multi-Blade Saw
Process width:
1220mm, 2440mm, 2800mm
Process thickness:
35mm (can be customized)
Process length:
Not limited
Main power:
18.5kw
Dust removing motor:
2.2kw*2
Feeding motor:
1.5kw
Feeding speed:
adjutable
Saw diameter:
180mm
Saw material:
alloy

Quick Details

Place of Origin:
Henan, China
Brand Name:
BOYE
Usage:
sawing and cutting of wood
Voltage:
380V (can be customized)
Dimension(L*W*H):
2300*2000*1300mm
Application:
wood factory, furniture facotry
Weight (KG):
1800 KG
Power (kW):
18.5
Max.Working Width(mm):
2800mm
Marketing Type:
New Product 2022
Name:
Panel Multi-Blade Saw
Process width:
1220mm, 2440mm, 2800mm
Process thickness:
35mm (can be customized)
Process length:
Not limited
Main power:
18.5kw
Dust removing motor:
2.2kw*2
Feeding motor:
1.5kw
Feeding speed:
adjutable
Saw diameter:
180mm
Saw material:
alloy

$name$

Product Description

1.Brief introduction of wood board cutting machine :

This machine is suitable for wood processing plant , furniture factory, packaging  factory, decoration materials factory, photo frame factory, etc. It maimly processes whole building templates, Joinery boards, wooden floors, ecological boards, multi-layer boards, insulation boards, plywood, etc. It eats wide material, The wider plate can be processed multiple times at once, with a fast speed, saving labor tha 3times ,saving electricity by 70%, greatly improving the production effciency, expanding the profits spaces, producing products that are clean and tidy, without indentation , and without injury materual. Improve market competitiveness.

2.Technical parameters:

Model Process width Process thickeness Process length Main power Dust removing power Feeding power
BY-1300 Max 1220mm

Max 35mm

(can be customized)

Not limited 18.5kw 2.2kw*2

1.5kw

(Adjustable)

BY-2500 Max 2440mm

Max35mm

(can be customized)

Not limited 18.5kw *2 2.2kw*4

1.5kw

(Adjustable)

BY-2800 Max 2800mm

Max 35mm

(can be customized)

Not limited 18.5kw *2 2.2kw*4

1.5kw

(Adjustable)

Note : Can customize the cutting blade and sleeve to get different cutting size according customer' requirement

Packaging & Shipping

1. Packing: PP film wrapped around the machine and carefully packed in wooden case to focus on protecting damageable parts.

2. Shipping: From port of Shenzhen, Shanghai, Qingdao, Guangzhou,etc. We also accept land, air, sea transport and international multimodal transport.

3. Clearance: Our long history makes us the one of the first and most knowledgeable providers of the equipment, our main customers hail from; Canada, the United States, Brazil, Argentina, Japan, Philippines, Australia, Russia, Thailand, the UAE, Poland, Spain, Germany, India, etc.

Our Services

1. We always welcome customers to visit our manufacturing factory and get to know more about us.

2. Customers can see all the manufacturing workflows when they visit our factory.

3. We also send engineers to the customer's place to help with the installation!

FAQ

1.When will you ship the machine?

Normally 10-15 working days .

2.How can I buy this machine?

First talk all machines details with our sales person, then talked about the price, after confirming the prices.

You can choose the payment terms Trade assurance/TT/Escrow/Western Unionetc.

then you arrange deposit, after gettting the deposit, we produce the machine.

last, packing and shipping the machine for you.

3.How do you guarantee that we can receive the goods ordered?

we are a legal company supervised by the goverment and also the Alibaba company as well as the third parties, what is more important,honesty and trustworthiness are our basic principle. Please trust us that we will offer the best to our client you.
