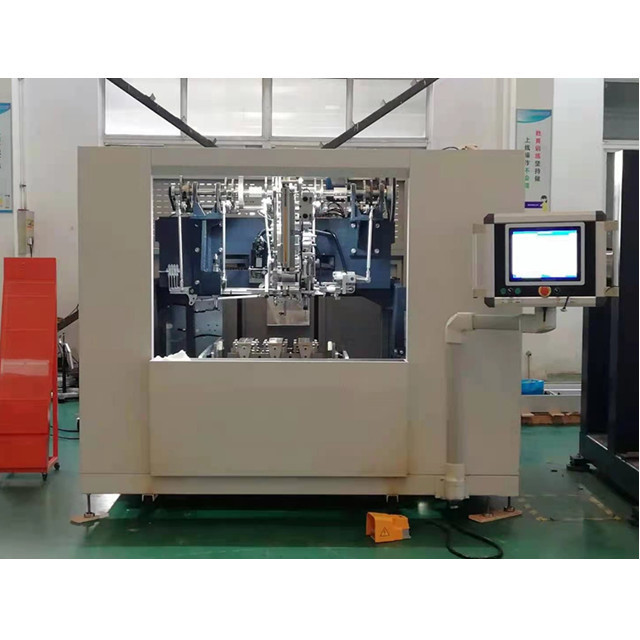

High Speed 5 Axis 3 heads CNC Drilling and Tufting Brush Making Machine/Broom Making Machine (2 drilling and 1 tufting)

Technical characteristics:

1, Equipped with two drilling heads and one tufting head;

2, Equipped with two high speed drilling heads: hole diameter from Φ3.0mm up toΦ6.0mm, and tufting tools from min.Φ3.0mm up to Φ6.0mm;

3, Hair by: round nails or flat nails;

4, three types of platform can be chosen as follows:

●Platform for radial, parallel and radial/parallel tufted brushes

●Platform for bowl brushes and semi-spherical brushes

●Platform for rollers and hair brushes

5, PLC and Touch Panel Control System, displays in either Chinese or English;

6, Allow saving as 2000 procedure and easy for the creation of new models;

7, our machine can produce either one color or two color brush, and also drilling or tufting separately.

8, setting of worktable: high-precision straight-line rail and ball screw, steady and durable.

9, Material of Brush Handle: Poly styrene, return materials, wood

10, Material of filaments: PP, PET, PVC, and STEEL WIRE

11, Application: To make varieties of toilet brush and radial brushes

12, High Speed Motor: Delta High-Speed Motor

13, AC motor: Delta Brake Motor

14, Type & Brand of Drive/Motor: Delta servo motor by default, can adopt some brand motor & driver requested by users.

15, Adjust Speed: Frequency-conversion stepless-adjustable speed

16, Replaceable Fixture: FMS type. It can be easily changed to make other kinds of brushes.

17, Head mode: Anchor or Staple

18, Program System: CNC system, high precision, stability and efficiency
