Quick Details
-
Filling Accuracy:
-
2%
-
Voltage:
-
220/380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HL
-
Dimension(L*W*H):
-
2000*970*2030
-
Weight:
-
300 KG
-
Product name:
-
Automatic powder filling machine
-
Function:
-
powder pack machine
-
Certification:
-
CE
-
Usage:
-
Filling Capping Labeling Packaging
-
Suitable for:
-
powder
-
Marketing Type:
-
New Product 2023
Quick Details
-
Machinery Capacity:
-
500BPH, 2000BPH
-
Packaging Material:
-
Metal, Glass
-
Filling Material:
-
Milk, Powder
-
Filling Accuracy:
-
2%
-
Voltage:
-
220/380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HL
-
Dimension(L*W*H):
-
2000*970*2030
-
Weight:
-
300 KG
-
Product name:
-
Automatic powder filling machine
-
Function:
-
powder pack machine
-
Certification:
-
CE
-
Usage:
-
Filling Capping Labeling Packaging
-
Suitable for:
-
powder
-
Marketing Type:
-
New Product 2023
Products Description

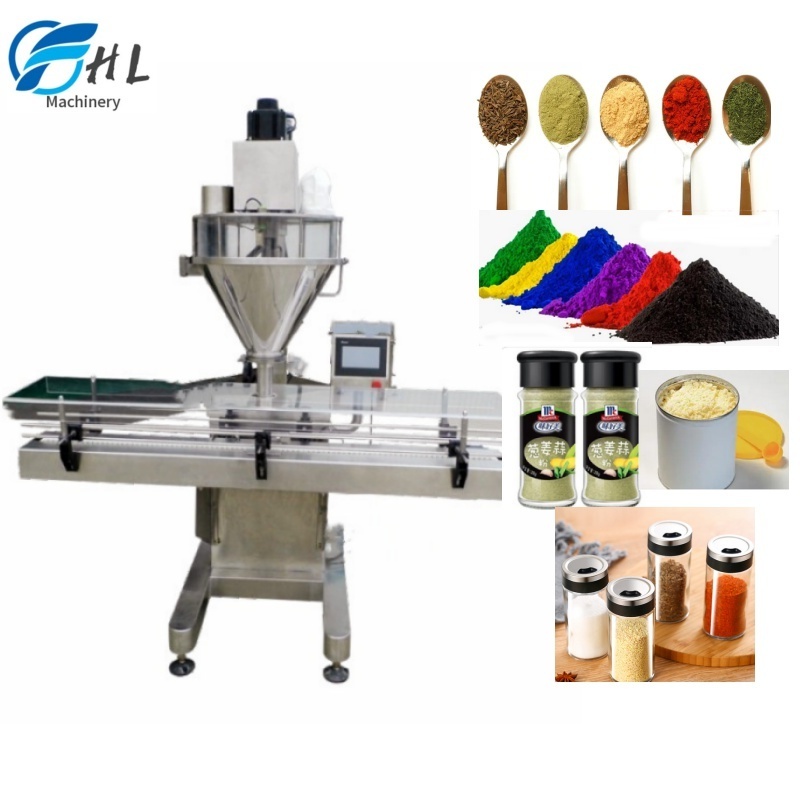

Automatic powder filling machine
This Machine is a complete, economical solution to your filling granular.It consists of the filling head, an independent motorized chain conveyor mounted on a sturdy, stable frame base, and all necessary accessories to reliably move and position containers for filling, dispense the required amount of product, then quickly move the filled containers away to other equipment in your line (e.g., cappers, labelers, etc.). it fits more to the fluidic or low-fluidity materials, like milk powder, albumen powder, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on .
Products Details
Main Features
* Stainless steel structure; The quick disconnecting hopper could be washed easily without tools.
* Servo motor drive screw.
* PLC, Touch screen and weighing module control.
* To save all product' s parameter formula for later use, save 10 sets at most.
* Replacing the auger parts, it is suitable for material from super fine powder to granule.
* Include handwheel of adjustable height
* Servo motor drive screw.
* PLC, Touch screen and weighing module control.
* To save all product' s parameter formula for later use, save 10 sets at most.
* Replacing the auger parts, it is suitable for material from super fine powder to granule.
* Include handwheel of adjustable height
Product Paramenters
|
Mode
|
HL-APF-A25
|
TP-APF-A50
|
TP-APF-A75
|
|
Hopper Volume
|
25L
|
50L
|
75L
|
|
Dosing Mode
|
Directly dosing by auger and With online weighing fill
|
Directly dosing by auger and With online weighing fill
|
With online weighing and container lift-fall function
|
|
Packing Weight
|
1~500g
|
10~5000g
|
100g~10kg
|
|
Filling Accuracy
|
≦100,≦±2％;100~500g,≦±1％
|
≦500g,≦±1％;>500g,≦±0.5％
|
100-1000g,≦±2g;≧1000g,±0.2％
|
|
Filling Speed
|
15~40bottlesper min
|
15~40 bottles per min
|
5-20 bottles per min |
|
Power Supply
|
3P AC208-415V 50/60Hz
|
3P AC208-415V 50/60Hz
|
3P AC208~415V 50/60Hz
|
|
Air Supply
|
6 kg/cm2 0.05m³/min
|
6 kg/c 0.05m3/min
|
6 kg/c 0.05m3/min
|
|
Total Power
|
1.2Kw
|
1.6Kw
|
3.2Kw
|
|
Total Weight
|
160kg
|
300kg
|
450kg
|
|
Overall Dimensions
|
1800*760*1850mm
|
2000*970*2030mm
|
3000*970*2300mm
|
