LZJ-02 aluminium window corner crimping automatic hydraulic aluminum workshop machinery

LZJ-02 aluminium window corner crimping automatic hydraulic aluminum workshop machinery

FOB Reference Price: Get Latest Price

≥1 Sets

US $2100

≥5 Sets

US $1900

≥10 Sets

US $1650

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Production Capacity:: 50sets/month

Power:: 1.5kw

Dimension(L*W*H):: 1300*1200*1300mm

Machine Type:: Aluminium Door-Window Processing machine

Power supply:: AC 380V 50HZ

Input Power:: 1.5KW

Air Pressure:: 0.5-0.8 MPa

Air consumption:: 2L/min

Combining angle:: 90 Degree

Main motor rotation speed:: 140r/min

Size:: 1300*1200*1300mm

Suitable material:: aluminium alloy profile

Usage:: aluminum window Corner combining

Quick Details

Brand Name:: Hisena

Voltage:: AC 380V 50HZ

Weight:: 400 kg

Production Capacity:: 50sets/month

Power:: 1.5kw

Dimension(L*W*H):: 1300*1200*1300mm

Machine Type:: Aluminium Door-Window Processing machine

Power supply:: AC 380V 50HZ

Input Power:: 1.5KW

Air Pressure:: 0.5-0.8 MPa

Air consumption:: 2L/min

Combining angle:: 90 Degree

Main motor rotation speed:: 140r/min

Size:: 1300*1200*1300mm

Suitable material:: aluminium alloy profile

Usage:: aluminum window Corner combining

Product Image

Products Description

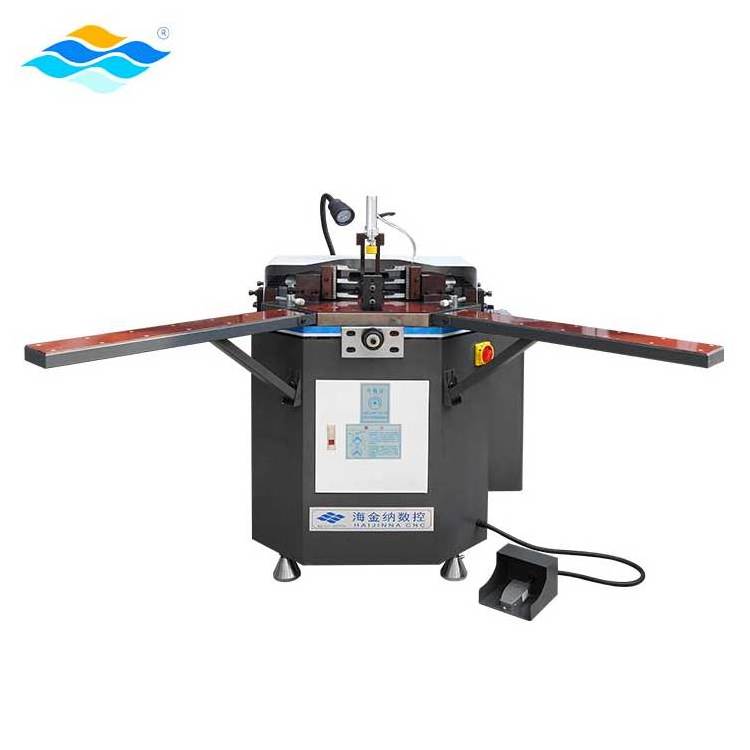

Corner crimping machine

Our 120 corner crimping machine is suitable for connecting corner cleat with aluminum window door frame to 90 degrees.

Machine adopts positioning unit with adjustable up and down, front and back distances, which is convenient for processing profiles with different shapes and sizes. The main positioning block can be lifted and lowered, which saves the time of putting and taking profile, and is especially obvious when crimping large-sized window frames.

Machine mechanical structure is simple and easy to operate, which greatly shortens production cycle and significantly reduces window door manufacturing cost . This corner crimping machine is an indispensable basic equipment in aluminum window door production and processing.

Specification
Air pressure			05--0.8 MPa
Combining angle			90°
Motor speed			140r/min
Rated oil pump pressure			12 MPa
Fuel tank capacity			20L
Group angle cylinder motion stroke			98mm
Main positioning block adjustment range			70mm
Machining profile height			Max 120mm

The equipment and process required for aluminum window door making

Hisena CNC，since 2008

Our Team

Our Customers

FAQ

• Are you factory or trading company?

We are a factory with more than 10 years experience in manufacturing door and window equipmen

• What kind of payment methods do you have?

We support T/T and L/C payment.

• Do you have customized service?

Yes, we can do customized order.

• How about shipping time and method?

The delivery time of our regular stock machines is 10-15 days, and the shipping method is mainly by sea. Small machines, tools and accessories can be shipped by air.

• How long is the service life and warranty?

The designed service life of our machines can be more than ten years, and all machines have one year warranty except consumables.

• How to install and use the machine after arrival?

Our equipment has been debugged before leaving factory to meet production standard requirements.

We can provide engineers on-site installation training, remote videophone installation guidance, installation and commissioning videos, user manuals and variety methods.

• How to do the maintenance for machine?

Please carry out daily maintenance, monthly and annual maintenance and inspection for the machine according to the requirements in product instruction manual.
