Quick Details
-
Weight:
-
1000kg
-
Size:
-
1.7*1.1*1.3m
-
Power:
-
0.5~5.5
-
Weight (KG):
-
1000 kg
-
Usage:
-
solid-liquid separation
-
Application:
-
hospital,restaurant sewage treatment
-
Color:
-
Customers Demands
-
Certification:
-
ISO9001
-
Capacity:
-
250L~10000L
-
Voltage:
-
Customers Demands
-
Advantage:
-
High Filtration Efficiency
-
Raw material:
-
carbon steel
-
Operation:
-
Automatic Running
-
Feature:
-
Eco-Friendly Easy Operation
Quick Details
-
Place of Origin:
-
CN qingdao
-
Brand Name:
-
xiaqing
-
Material:
-
Standard package material
-
Weight:
-
1000kg
-
Size:
-
1.7*1.1*1.3m
-
Power:
-
0.5~5.5
-
Weight (KG):
-
1000 kg
-
Usage:
-
solid-liquid separation
-
Application:
-
hospital,restaurant sewage treatment
-
Color:
-
Customers Demands
-
Certification:
-
ISO9001
-
Capacity:
-
250L~10000L
-
Voltage:
-
Customers Demands
-
Advantage:
-
High Filtration Efficiency
-
Raw material:
-
carbon steel
-
Operation:
-
Automatic Running
-
Feature:
-
Eco-Friendly Easy Operation
Products Description

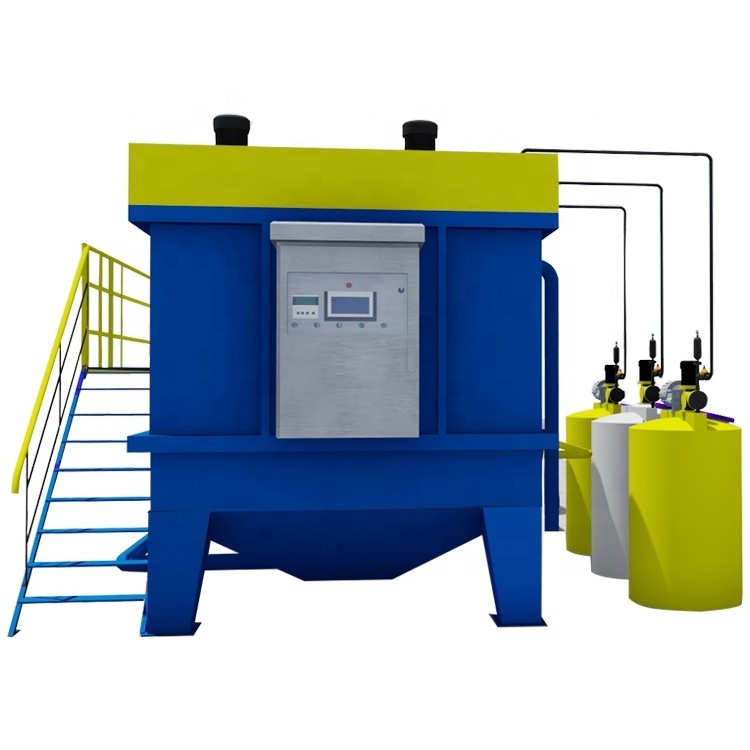

Dissolved air flotation machine
Dissolved air flotation machine is manufactured by our factory and mainly used for solid-liquid separation and liquid-liquid
separation. Flotation device will produce large amounts of tiny bubbles by dissolved gas and release system in the water, to make
the adhesion in the waste water and water close to the density of solid or liquid particles, causing the whole condition of
density smaller than water, and depend on the ascend to the surface flotage, so as to achieve the purpose of the liquid-solid
separation, liquid-liquid separation.
separation. Flotation device will produce large amounts of tiny bubbles by dissolved gas and release system in the water, to make
the adhesion in the waste water and water close to the density of solid or liquid particles, causing the whole condition of
density smaller than water, and depend on the ascend to the surface flotage, so as to achieve the purpose of the liquid-solid
separation, liquid-liquid separation.
Work Principle
The air will be send by air compressor into air tank, then take in air dissolved tank by jet flow device, the air will be force to
dissolve into water under 0.35Mpa pressure and forming dissolved air water, then send to air flotation tank. Under the
circumstance of sudden release, the air dissolved in water will be dissolve out and form vast microbubble group, which will be
fully contact the flocculating suspended matter in sewage, the suspended matter was sent by pump and flocculation after adding
medicine, the ascending microbubble group will adsorb in the flocculated suspended matter, made its density reduce and floated to
water surface, thus reach the purpose of removing SS and CODcr etc.
dissolve into water under 0.35Mpa pressure and forming dissolved air water, then send to air flotation tank. Under the
circumstance of sudden release, the air dissolved in water will be dissolve out and form vast microbubble group, which will be
fully contact the flocculating suspended matter in sewage, the suspended matter was sent by pump and flocculation after adding
medicine, the ascending microbubble group will adsorb in the flocculated suspended matter, made its density reduce and floated to
water surface, thus reach the purpose of removing SS and CODcr etc.
Product Paramenters
|
Model
|
YMXQ-1
|
YMXQ-5
|
YMXQ-10
|
YMXQ-20
|
YMXQ-30
|
YMXQ-50
|
YMXQ-60
|
YMXQ-90
|
|
flow rate
|
1m3/h
|
5m3/h
|
10m3/h
|
20m3/h
|
30m3/h
|
50m3/h
|
60m3/h
|
90m3/h
|
Details Images
Product Install Picture
Package and Shipping
Why Choose Us
We are a factory since 1988 years established, located in West coast new District Qingdao City, with a workshop building area of 6000 m2 and more than 30 kinds of treating machinery. The company has 60 staff member workers, including 6 engineers and technicians. Since the establishment, we are always committed to environmental protection which includes environmental protection equipment design and fabrication, water treatment technological development, engineering construction and technical service, etc
