Quick Details
-
Function:
-
CC-CV
-
Brand Name:
-
YILEIDE
-
Model Number:
-
E15
-
Input voltage and current:
-
100-240Vac/10A
-
output voltage and current:
-
24V/30A, 36V/30A, 48V/25A, 60V/20A, 72V/15A, 84V/12A, 96V/10A
-
Maximum Output Power:
-
1500W
-
Place of Origin:
-
Guangdong, China
-
Shell material::
-
Aluminium Casting
-
Protection Level::
-
IP66
-
AC Input::
-
100-240Vac
-
Max Eficiency::
-
≥93%
-
Operating Temperature::
-
-20~+65℃
-
Storage Temperature::
-
-40 ~ +95℃
-
Noise::
-
≤40dB
-
Overall Size::
-
282*124*72mm
-
Net Weight::
-
3kg
-
Certification:
-
FCC CE ROHS
Quick Details
-
Type:
-
Electric, Smart Battery Charger
-
Port:
-
DC, AC
-
Material:
-
Aluminium Casting
-
Function:
-
CC-CV
-
Brand Name:
-
YILEIDE
-
Model Number:
-
E15
-
Input voltage and current:
-
100-240Vac/10A
-
output voltage and current:
-
24V/30A, 36V/30A, 48V/25A, 60V/20A, 72V/15A, 84V/12A, 96V/10A
-
Maximum Output Power:
-
1500W
-
Place of Origin:
-
Guangdong, China
-
Shell material::
-
Aluminium Casting
-
Protection Level::
-
IP66
-
AC Input::
-
100-240Vac
-
Max Eficiency::
-
≥93%
-
Operating Temperature::
-
-20~+65℃
-
Storage Temperature::
-
-40 ~ +95℃
-
Noise::
-
≤40dB
-
Overall Size::
-
282*124*72mm
-
Net Weight::
-
3kg
-
Certification:
-
FCC CE ROHS
Shenzhen Yileide Technology Co.,ltd
Professional Smart Battery Charger Manufacturer
"National Hi-Tech Enterprise"
Products Description

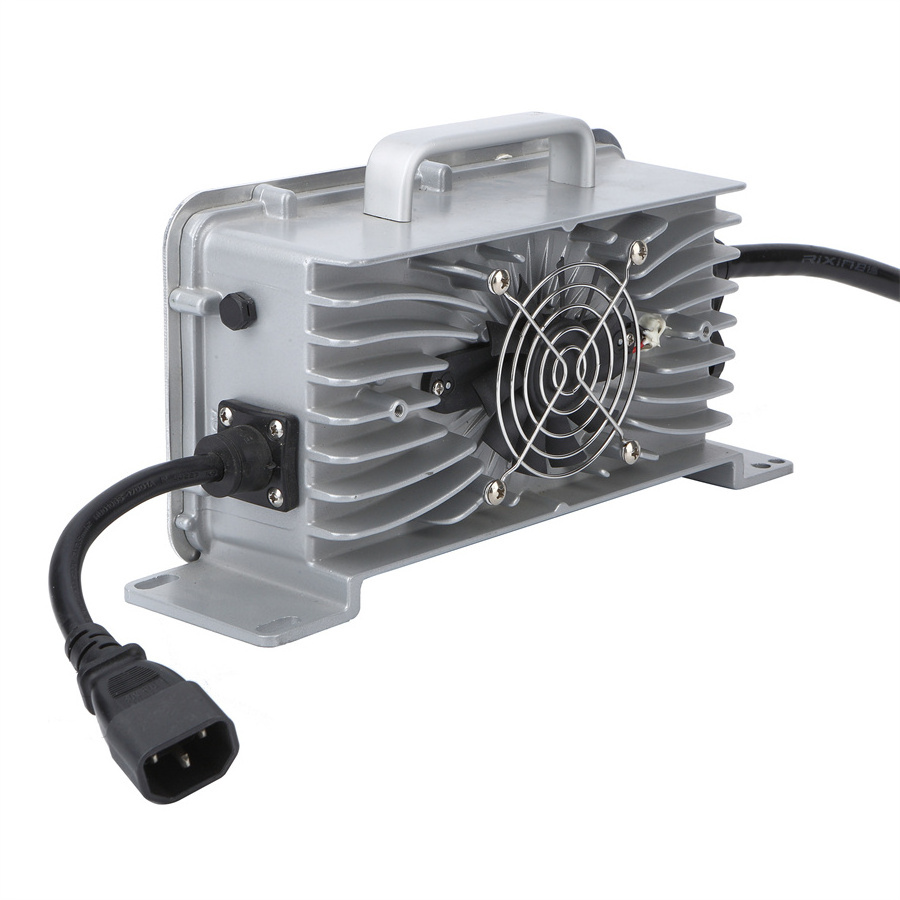

E15 Series Smart Battery Charger
This Charger adopt MCU and PWM,able to set the optimal charging curve according to battery information.With active PFC and LLC
half-bridge circuit ,the charger is high-efficiency, more stable and more safer.Fully sealed aluminum die-cast enclosure and
internal padding , to be waterproof, dustproof and shockproof.
Three-color LED indicator can be programmed for different charging states.The fan can adjust speed automatically.
Color
Silver
Green
|
Model:
|
E15
|
Max Input Power:
|
1500W
|
||
|
Shell:
|
Aluminium casting
|
Size:
|
282*128*78mm
|
||
|
AC Input:
|
85V-265V/40-70Hz
|
Waterproof:
|
IP66
|
||
|
Max Efficiency:
|
>=93%
|
Operating Temperature:
|
-20 to 65℃
|
||
|
Storage Temperature:
|
-40 to 95℃
|
Noise:
|
<=40dB
|
||
|
Cooling:
|
Active cooling with fan
|
|
|
||
|
Protection:
|
1,Input low-voltage&over-voltage protection.2,Overheat protection.3,Output empty-load protection.4,Output short&reverse protection.5,Output over-current&over-voltage protection.
|
|
|
||
|
Common Output
|
|
|
|
|
|
|||||
|
Nominal Voltage
|
Charging Voltage
|
|
|
Charging Current
|
|
|||||
|
Nominal Voltage
|
Lead Acid
|
LiFePO4
|
Li-ion
|
@110Vac
|
@220Vac
|
|||||
|
12V
|
14.7V
|
14.6V
|
16.8V
|
30A
|
30A
|
|||||
|
24V
|
29.4V
|
29.2V
|
29.4V
|
30A
|
30A
|
|||||
|
36V
|
44.1V
|
43.8V
|
42V
|
25A
|
30A
|
|||||
|
48V
|
58.8V
|
58.4V
|
58.8V
|
18A
|
25A
|
|||||
|
60V
|
73.5V
|
73V
|
67.2V
|
15A
|
20A
|
|||||
|
72V
|
88.2V
|
87.6V
|
84V
|
12A
|
15A
|
|||||
|
84V
|
102.9V
|
102.2V
|
100.8V
|
10A
|
13A
|
|||||
|
96V
|
117.6V
|
116.8V
|
117.6V
|
9A
|
12A
|
|||||
|
Remark:We are manufacturer!We can customize the charging profile according to your battery information or your requests.
|
|
|
|
|
|
|||||
Optional Functions
1, CAN or RS485 Communication
2, Additional Power supply (12V or other)
3, Interlock Wires
4, Enable Wires
5, External LED Indicator
6, Temperature sensors to other parts
7, Re-programme the charger
8, Analog Wires
9,Shut-down automatically after fully charged
10,Restart in some conditions (such as after 15 days,or while battery voltage is below one value)
11,Others
Install Method
Some people would like to remove their charger, but others prefer to building the charger in electric vehicle.So there are 2 options for you.
With Handle
On board
AC & DC Cable and Connector
First of all, you can customize the AC or DC cable.There are so many solutions for different projects.Tell us what exactly you will need.
For example:
Standard Length of AC cable: 1m/1.2m/1.5m/2.8m...,
For example:
Standard Length of AC cable: 1m/1.2m/1.5m/2.8m...,
Gauge of AC wires: 3*1mm²/3*1.31mm²/3*1.5mm²....
AC plugs (More than those below):
Independent AC cable
Built-in AC cable
Standard Length of DC cable: 1.5m/2m...
Gauge of DC wire: 2*2.5mm² / 2*3.5mm² ... (More wires if you have chosen some functions)
DC connectors (More than those below):
Marking and Label
Charger information will be engraved.We can laser those details what you want to show.There is also one yellow warning sticker.Of course,you also can customize other stickers.
Applications
They are widely used for Golf cart, Scooters,Electric tricycles, E motorcycles, Electric lawn mower, Electric cleaning scrubber, E-forklifts, Sightseeing vehicles, E-boats, Industrial vehicles, Aerial work platform , AGV ,Energy storage system and so on.
