Quick Details
-
Length:
-
164.86mm
-
Application:
-
Industrial Application
-
Interface:
-
TN / Transmissive / Normally white, 24-bit Parallel RGB Interface
-
Width:
-
99.96mm
-
Features:
-
Resistive/capacitive
-
MOQ:
-
1 piece
-
Size:
-
7 inch
-
Resolution:
-
800*480
-
Britness:
-
400 nits/1000 nits
-
Viewing Angle:
-
12 O'clock
-
Touchscreen:
-
Resistive / capacitive touchscreen
-
LED Numbers:
-
27LEDs
-
Display Mode:
-
TN / Transmissive / Normally white
-
Warranty:
-
1 Year
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Detone
-
Model Number:
-
DT
-
Length:
-
164.86mm
-
Application:
-
Industrial Application
-
Interface:
-
TN / Transmissive / Normally white, 24-bit Parallel RGB Interface
-
Width:
-
99.96mm
-
Features:
-
Resistive/capacitive
-
MOQ:
-
1 piece
-
Size:
-
7 inch
-
Resolution:
-
800*480
-
Britness:
-
400 nits/1000 nits
-
Viewing Angle:
-
12 O'clock
-
Touchscreen:
-
Resistive / capacitive touchscreen
-
LED Numbers:
-
27LEDs
-
Display Mode:
-
TN / Transmissive / Normally white
-
Warranty:
-
1 Year
Products Description
More choices
We have more 7 inch display modules, if you do not find what you need, please contact us
1024*600，500 nit, LVDS interface
800*1280,400nit,24-bit Parallel RGB Interface
800*480,300 nit,24-bit Parallel RGB Interface
1024*600，450 nit, TTL(RGB interface)
800*480,500nit, MIPI-4 Lanes Interface
800*480,1000 nit,24-bit Parallel RGB Interface
800*480，1000nit, 24-bit Parallel RGB Interface
1024*600,1000nit, 24-bit Parallel RGB Interface
800*480,500 nit,RGB 18 BITS
800*480，600nit, LVDS
1024*600,430nit, 18-BIT RGB
1280*800,400 nit,RGB 24 bits
Product parameters
|
Item
|

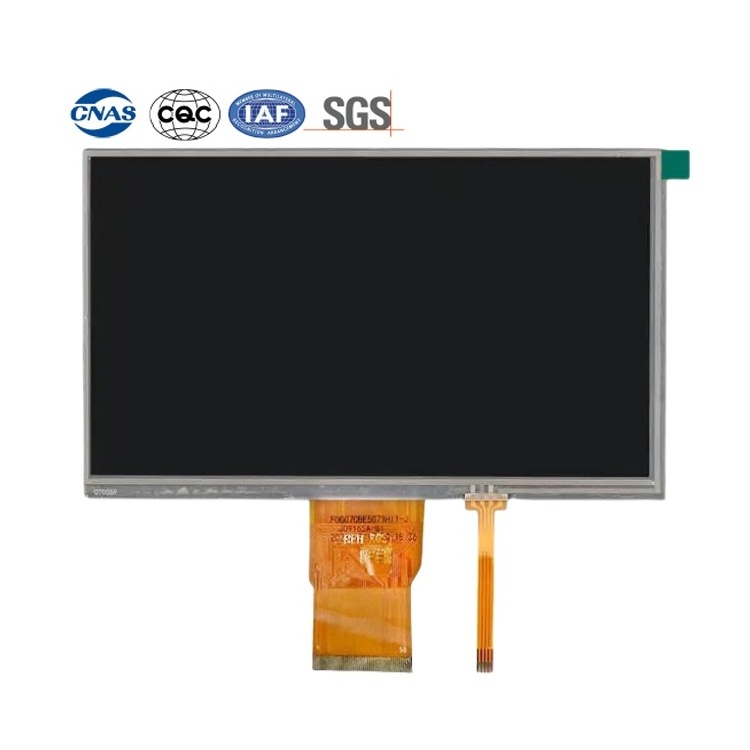

7 inch 800x480 TFT module display
|
|
Resolution
|
800x480
|
|
Outline Dimension
|
164.9(W)*100(H)*5.7(T)
|
|
Active Area(mm)
|
154.08(W)*85.92(H)
|
|
Interface
|
24-bit Parallel RGB Interface
|
|
Viewing Angle
|
12 O'clock
|
|
LED life
|
50000h
|
|
Display Mode
|
TN / Transmissive / Normally white
|
|
PIN
|
50
|
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|
|
Brightness
|
400nits / 1000nits
|
|
Touchscreen
|
Resistive / capacitive touchscreen
|
|
Board
|
HDMI board
|
(1)High-quality raw material supplier ：
after-sales guarantee and long-term stable supplier, LCD panel and Driver IC made of A-regulated raw materials.
(2)Other materials：
such as polarizers, backlight film materials, etc. We also use brand new A-regulated raw materials
(3)Strict quality control:
Through rate up to 98.5%,Customer online defect rate as low as 0.3%.
Inspection is done in FOG==>LCM==>LCM+RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC.
A product must pass 5 tests before shipment: incoming inspection, 100% online inspection, QC on-site inspection, aging test and OQC inspection, etc.
