Quick Details
-
Brand Name:
-
TIANYI SUNS
-
Model Number:
-
Single Jet Water Meter
-
Standard:
-
ISO-4064
-
Color:
-
Blue
-
Temperature:
-
Cold Water:0.1-50 /hot Water:50-90
-
Feature:
-
High Performance
-
Installation:
-
Horizonal Prepaid Water Meter
-
Application:
-
Water Resource Management
-
Work Environment:
-
Dry Water Meter
-
Size:
-
Dn15,Dn20
Quick Details
-
Warranty:
-
3 years
-
Type:
-
Ultrasonic meters
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
TIANYI SUNS
-
Model Number:
-
Single Jet Water Meter
-
Standard:
-
ISO-4064
-
Color:
-
Blue
-
Temperature:
-
Cold Water:0.1-50 /hot Water:50-90
-
Feature:
-
High Performance
-
Installation:
-
Horizonal Prepaid Water Meter
-
Application:
-
Water Resource Management
-
Work Environment:
-
Dry Water Meter
-
Size:
-
Dn15,Dn20

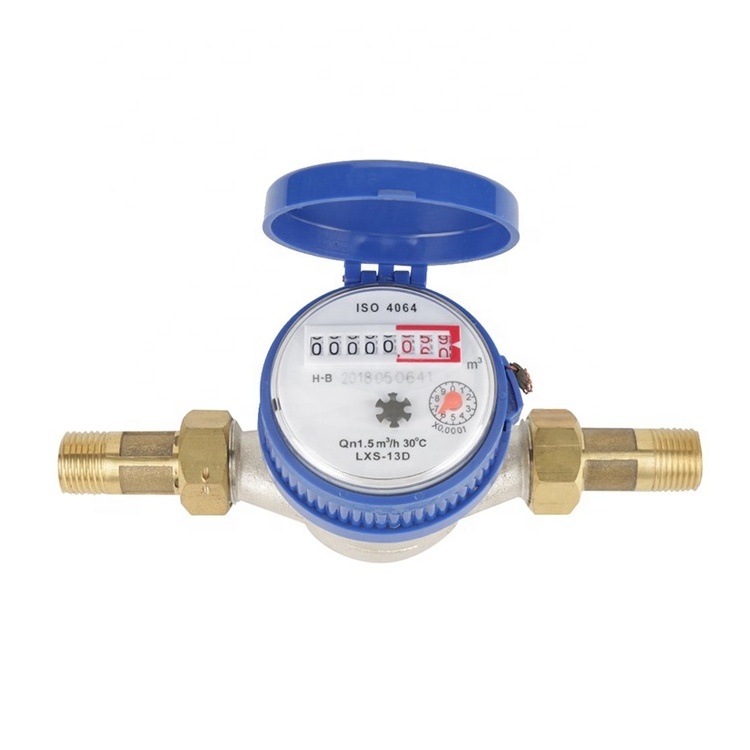

1/2 Inch Intelligent Water Meter Household Mechanical Rotor Type Cold Single Jet Water Meter
Products Description
Operation
The water enters the meter from the inlet of the meter body and impacts the vane wheel at the tip of the vane blades to make it rotate. The rotation of the vane wheel (proportional to the velocity of water flow) is transmitted directly to the central gear in the vacuum-sealed register by the magnetic coupling. The sealed register totalizes and indicates the water volume passing through the meter.
The water enters the meter from the inlet of the meter body and impacts the vane wheel at the tip of the vane blades to make it rotate. The rotation of the vane wheel (proportional to the velocity of water flow) is transmitted directly to the central gear in the vacuum-sealed register by the magnetic coupling. The sealed register totalizes and indicates the water volume passing through the meter.
Features
* Wet, dry or liquid sealed register optional
* For hot or cold water
* Small, light
* Brass body or plastic body, optional
* Brass body can be painted or nickel coated
* High accuracy
* Pulse Unit (Reed switch) for remote readout systems
* Standard 1 pulse per 10 litres
* For measuring consumption of individual apartments
* For horizontal and vertical installation
* ISO4064:1993 Class B/Class C
* ISO4064:2005 R80/R160
* For hot or cold water
* Small, light
* Brass body or plastic body, optional
* Brass body can be painted or nickel coated
* High accuracy
* Pulse Unit (Reed switch) for remote readout systems
* Standard 1 pulse per 10 litres
* For measuring consumption of individual apartments
* For horizontal and vertical installation
* ISO4064:1993 Class B/Class C
* ISO4064:2005 R80/R160
Working Conditions
Water temperature<50ºC (Hot water meter<90°C)
Water pressure <1MPa(PN: 1.6Pa/16bar)
<0.1 MPa
<0.063MPa(R80/R100)
<0.063MPa(R80/R100)
Accuracy
From minimum flow-rate (Qmin) inclusive, to transitional flow-rate (Qt) Exclusive +-5%
From transitional flow-rate (Qt) Inclusive,to overload flow rate (Qs) Exclusive +- 2%
Technical Details
|
Nominal
Size DN (mm) |
Class of
measurement |
Overload
flow-rate qs(m3/h) |
Permanent
flow-rate qp(m3/h) |
Transitional
flow-rate qt(l/h) |
Minimum
flow-rate qmin(l/h) |
|
15
|
B
|
3
|
1.5
|
120
|
30
|
|
20
|
B
|
5
|
2.5
|
200
|
50
|
Dimensions
|
Size
(mm)
|
Length (mm)
L
|
Width (mm)
W
|
Height (mm)
H
|
Connecting Thread
D
|
Weight
(Kg)
|
|
15
|
110
|
77
|
73
|
G 3/4 B
|
0.57
|
|
20
|
165
|
77
|
80
|
G 1 B
|
0.67
|
Installation
Installation requirements:
Meter should be installed in horizontal position with the register face upwards
Pipe line must be flushed before installation
The meter should be constantly full of water during operation
