Quick Details
-
Material:
-
Pallet or Crate
-
Weight:
-
0.9g/cm3
-
Size:
-
1000x1000mm
-
Power:
-
Industrial standard
-
Weight (KG):
-
0.9 kg
-
Name:
-
Lamella Clarifier Tube Settler
-
Bore size:
-
35/50/80mm, etc
-
Tube Settler Sheet size:
-
1*1m; 1*1.2m; 1*1.5m
-
Tube Settler Sheet Thickness:
-
0.4-1mm
-
Tube Settler Media Material:
-
PVC or PP
-
Use:
-
square or round waste water treatment pond
-
Application:
-
waste water treatment
-
Assembled Type:
-
Inclined and Straight Type
-
Delivery Time:
-
5 to 10 days
-
Country of Origin:
-
China
Quick Details
-
Core Components:
-
tube settler
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
Long Zhuo
-
Material:
-
Pallet or Crate
-
Weight:
-
0.9g/cm3
-
Size:
-
1000x1000mm
-
Power:
-
Industrial standard
-
Weight (KG):
-
0.9 kg
-
Name:
-
Lamella Clarifier Tube Settler
-
Bore size:
-
35/50/80mm, etc
-
Tube Settler Sheet size:
-
1*1m; 1*1.2m; 1*1.5m
-
Tube Settler Sheet Thickness:
-
0.4-1mm
-
Tube Settler Media Material:
-
PVC or PP
-
Use:
-
square or round waste water treatment pond
-
Application:
-
waste water treatment
-
Assembled Type:
-
Inclined and Straight Type
-
Delivery Time:
-
5 to 10 days
-
Country of Origin:
-
China

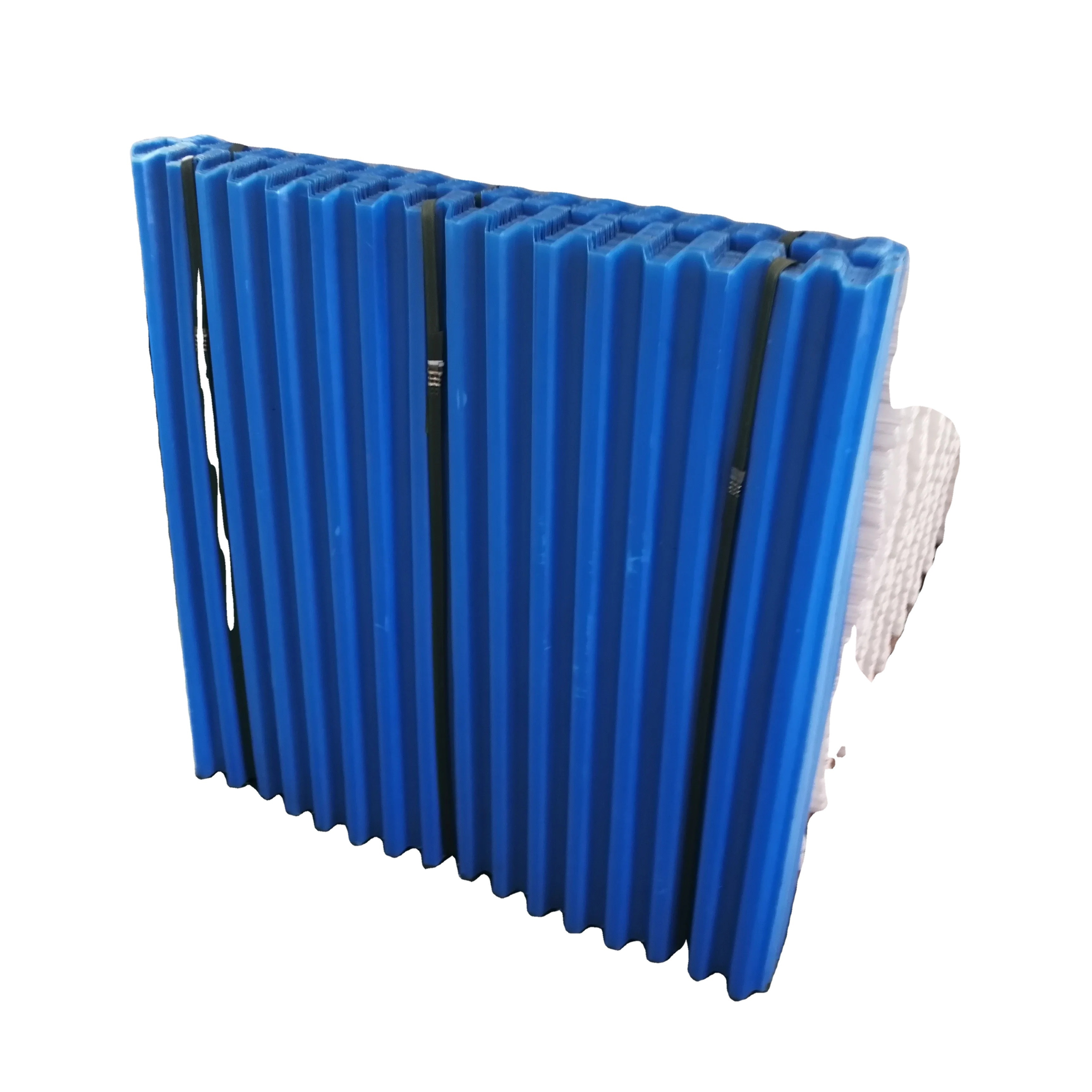

Tube settler media
What's tube settler/pvc lamella media?
Tube settler produced by our company uses PP, PVC or FRP as its raw material. It was hot-drawn into a hexagonal tube shape by infared thermal machine and then welded into the using shape with patented technology and high frequency. This kind of tube settler can be applied into many kinds of water and waste water treatment pond like precipitation pond, sedimentation tank and sand removing pond...etc. In recent years it has developed into the most mature water treatment device that widely applied in various kinds of projects.
|
Bore Size(mm)
|
Thickness(mm)
|
Quantity(pcs/m
2
)
|
Weight(kgs/m
2
)
|
Specific Surface Area(m
2
/m
3
)
|
|
φ 25
|
0.4
|
62
|
30
|
139
|
|
|
0.45
|
62
|
35
|
139
|
|
φ 35
|
0.4
|
42
|
22
|
109
|
|
|
0.45
|
42
|
25
|
109
|
|
|
0.5
|
42
|
28
|
109
|
|
φ 50
|
0.4
|
30
|
16.5-17
|
87
|
|
|
0.45
|
30
|
17.5-18
|
87
|
|
|
0.5
|
30
|
18.5-19
|
87
|
|
|
0.6
|
30
|
22
|
87
|
|
φ 80
|
0.7
|
20
|
19.5
|
50
|
|
|
0.8
|
20
|
22
|
50
|
Lamella tube settler media is mainly application industry: water supply engineering and waste water drainage engineering.
The shape of tube settler block can be tailored to fit different projects.
If you want to know more, welcome to SEND an inquiry to us.
According to working temperature, you can addopt different materials:
PP material working temperature is up to 80℃
PVC material working temperature is up to 60℃
Assembling tool is welding iron:
Tube settler media features:
1.Large wetted perimeter, hydraulic radius is small.
2. The laminar good condition, particles falling from flocculent flow interference.
3. When the tube for 1m long, effective load by 3-5tons/square meter design. And control in 2.5-3.0mm/SEC effluent water, within the scope of the best.
4. In the water inlet place inclined pipe length, the honeycomb 2.0-3.0meters, may in the 50-100kg/m3 clay sand content of high turbidity safe operation of processing.
5. The plastic inclined packing, which the processing ability is to destabilize the flat streaming traps 3-5 times, accelerate the clear pool and pulse clarify 2-3 times.
6. The material is with UV radiation protection.
|
1. Polypropylene material
|
4. Process plain sheet into tube settler plate
|
|
2. PP material procession
|
5. Cut tube settler plate into 60° angle
|
|
3. Process pp material into plain sheet
|
6. Packing or assmeble into block
|
If you want to know more, welcome to SEND an inquiry to us.
Hebei Long Zhuo Trade Co.,Ltd, was established in 2013 and is located in Hebei Province, the north of China, for the past few years, we have devoted ourselves to provide top quality products to the global markets.
Our mainly product is about water treatment products, tube settler is one of our self invented and hot selling product.
Ethics to a business is what morality to a man. It is our eternal pursuit to stick to the principle of “integrity and quality first, strenuously developing highly advanced and sophisticated technology”. we hope to achieve common development on the basis of trust and mutual benefit. With highly educated and experienced stuff and top quality products, we strive to create a bright future.
FAQ
1. What is the MOQ of Lamella Clarifier Tube Settler?
The MOQ is 20 square meters.
2.What is the lead time?
The lead time is around 10 days to 15 days, based on your quantity.
3. Can you offer the free samples,how can we get ?
Yes,we can offer free samples for you evaluation, while you need to bear the transportation costs.
4. Can you offer the welding tools?
Yes, we can export the welding tools along with the goods.
5. How can we choose the shipping way?
For the small order,we suggest to ship by DHL,FEDEX,UPS door to door service. It will take 3-5days.
For the larger order,we suggest to ship by sea.If urgent, you can choose to transport by air.
