Quick Details
-
Brand Name:
-
LS
-
Model Number:
-
LS-AN-112A1
-
Product Name:
-
Shielding Conductive Foam Sheet Thermal Conductive Foam Gasket
-
Fabric:
-
Nickel/Copper Plated
-
Adhesive:
-
No/Conductive Adhesive
-
Custom Service:
-
Size/Shape/Material/Adhesive
-
Foam Color:
-
Black/Sliver
-
Thickness:
-
0.5MM~20MM/Custom
-
Sample Time:
-
5 Days
-
Surface Resistivity:
-
>0.2Ω/Sq
-
Shielding Effectiveness:
-
85Mhz
-
Fire prevention level:
-
94HB-VO
Quick Details
-
Material:
-
PU
-
Type:
-
Foam
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LS
-
Model Number:
-
LS-AN-112A1
-
Product Name:
-
Shielding Conductive Foam Sheet Thermal Conductive Foam Gasket
-
Fabric:
-
Nickel/Copper Plated
-
Adhesive:
-
No/Conductive Adhesive
-
Custom Service:
-
Size/Shape/Material/Adhesive
-
Foam Color:
-
Black/Sliver
-
Thickness:
-
0.5MM~20MM/Custom
-
Sample Time:
-
5 Days
-
Surface Resistivity:
-
>0.2Ω/Sq
-
Shielding Effectiveness:
-
85Mhz
-
Fire prevention level:
-
94HB-VO
*

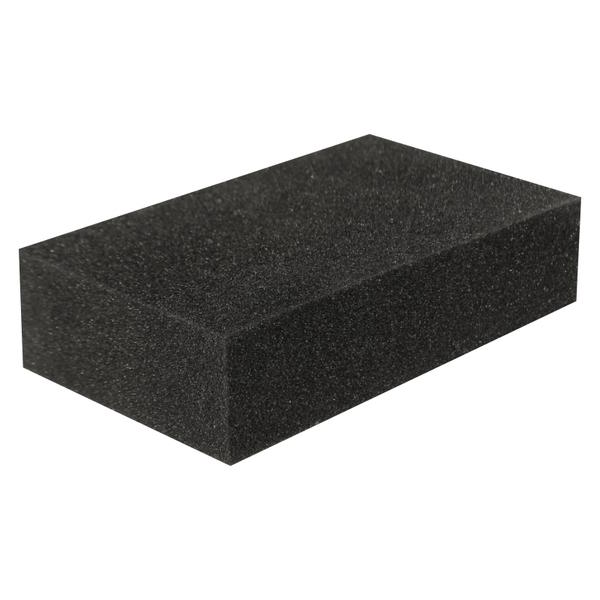

C
onductive
F
oam
It is a cost-effective gap shielding material, which is made of conductive cloth with high conductivity and corrosion resistance and coated with low-pressure foam. It is made of precision machining, widely used in gaps of chassis and other equipment as well as EMI/EMC prevention of various electronic products.
It provides impedance conductive connection and has good electromagnetic wave shielding effect.
#
Please check the structure diagram of conductive foam picture
#
|
Product Type 1
|
Conductive naked foam
|
|
Product Type 2
|
Conductive foam with conductive adhesive
|
|
||
|
Product Type 3
|
Conductive copper foam
|
|
Product Type 4
|
Nickel plated copper conductive foam
|
|
||
|
Product Type 5
|
Tinned conductive foam
|
|
Product Type 6
|
Omnidirectional conductive foam
|
|
||
|
Product Type 7
|
SMT conductive foam
|
|
Product Type 8
|
Carbon-plated conductive foam
|
|
||
|
Product Type 9
|
EMI conductive foam
|
|
Product Type 10
|
Gold-plated conductive foam
|
|
||
|
EMI Conductive Foam Gasket
|
|
|
|
|||
|
Item
|
Unit
|
Value
|
Test Method
|
|||
|
Shielding Effectiveness
|
dB
|
≥75
|
ASTM D4935-99
|
|||
|
Salt Spray
(5%, 24H, 35Degree C)
|
Grade
|
≥4
|
ASTM F390
|
|||
|
Abrasion Test
|
Time
|
≥1,000,000
|
ASTM B117-03
|
|||
|
Surface Resistivity
|
Ω/sq
|
≤0.05
|
ASTM F390
|
|||
|
Metal Adhesion
|
Grade
|
≥4
|
AATCC TM8-2001
|
|||
|
Conductivity in-Z Directions resistance
|
Ω
|
≤0.05
|
/
|
|||
|
Tensile Strength
|
1bf
|
≥67
|
|
|||
|
Tensile MPa
|
1bf
|
≥52
|
|
|||
|
LS Conductive Foam Gasket
|
|
|
|
|
|
|
|
|||||||
|
P/N
|
LS1
|
LS2
|
LS3
|
LS4
|
LS5
|
LS6
|
Test
|
|||||||
|
Color
|
Grey/Black
|
Grey/Black
|
Grey
|
Grey/Black
|
Grey
|
Grey/Black
|
Visual
|
|||||||
|
T(mm)
|
0.3
|
0.5
|
0.8
|
1.0
|
1.5/2.0/2.5/3.0/3.5
|
4.0
|
Standards
|
|||||||
|
Tolerance
|
±0.15mm
|
|
|
|
±0.3mm (T≥5mm,±0.5mm)
|
|
Standards
|
|||||||
|
Peel
Strength
|
≥800
|
|
|
|
≥1200
|
|
ASTMD
1000
|
|||||||
|
Contact Resistance
|
0.3-2.5mm ≤0.2Ω | 3.0-4.0mm≤0.5Ω
|
|
|
|
|
|
Standards
|
|||||||
|
Surface Resistivity
|
0.3-2.5mm ≤0.3Ω | 3.0-4.0mm≤0.5Ω
|
|
|
|
|
|
ASTM
F390
|
|||||||
|
Shielding Effectiveness
|
50-80dB(10MHz-3GHz)
|
|
|
|
|
|
ASTM
D4935
|
|||||||
|
Tensile
MPa
|
≥9.0
|
|
|
|
|
|
ASTMD
1000
|
|||||||
|
Suitable temperature
|
-20-100℃
|
|
|
|
|
|
Standards
|
|||||||
Black Thermal Conductive Foam EMI Conductive Foam Sheet
* Non-loose conductive fiber , no sharp edges, high elasticity and good consistency, conductive fixing adhesive, low surface contact resistance, no loss of shielding performance after 10,000 frictions, thin cross section suitable for base plate I/O and D-subminiature linings, can be used as grounding.
* It is widely used in PDP TV, LCD monitor, LCD TV, mobile phone, laptop computer, MP3, communication cabinet, medical instrument and other electronic products, as well as military and aerospace fields.
