Quick Details
-
Bottle Volume(ml):
-
500 ml
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OHFU
-
Voltage:
-
380V/3PH/50HZ
-
Dimension(L*W*H):
-
2400*820*1900mm
-
Hollow part volume:
-
500ML /2L/5L/7L/20L
-
Power (kW):
-
10-15KW
-
Weight (KG):
-
950 KG
-
Product name:
-
Bottle Blower
-
Suitable bottle:
-
Drink Bottle
-
Key words:
-
Bottle Blow Making Machine
-
Machine type:
-
Stretch Bottle Blowing
-
Bottle material:
-
Pet Plastic
-
Advantages:
-
Low Energy Consumption
-
Delivery time:
-
Within 20 Working Days
-
Feature:
-
High Stability
-
Customer's requipment:
-
Drawing
-
Blow Moulding Type:
-
Stretch Blow Moulding
Quick Details
-
Neck Diameter(mm):
-
100 mm
-
Max.Bottle Diameter(mm):
-
270 mm
-
Max.Bottle Height(mm):
-
490 mm
-
Bottle Volume(ml):
-
500 ml
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OHFU
-
Voltage:
-
380V/3PH/50HZ
-
Dimension(L*W*H):
-
2400*820*1900mm
-
Hollow part volume:
-
500ML /2L/5L/7L/20L
-
Power (kW):
-
10-15KW
-
Weight (KG):
-
950 KG
-
Product name:
-
Bottle Blower
-
Suitable bottle:
-
Drink Bottle
-
Key words:
-
Bottle Blow Making Machine
-
Machine type:
-
Stretch Bottle Blowing
-
Bottle material:
-
Pet Plastic
-
Advantages:
-
Low Energy Consumption
-
Delivery time:
-
Within 20 Working Days
-
Feature:
-
High Stability
-
Customer's requipment:
-
Drawing
-
Blow Moulding Type:
-
Stretch Blow Moulding

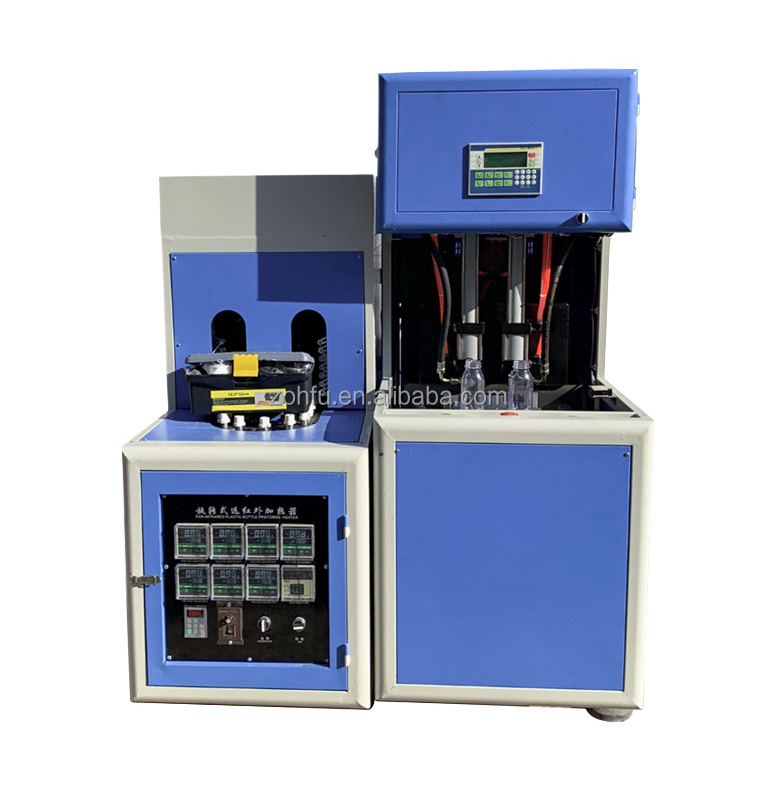

5 Gallon 20 Lts PC Water Bottle Making Machine / Blowing Molding Machine With Simple Head For Big Bottles
This machine can blow pure water mineral water bottle and fruit juice drink bottle of PET material within 10-20 liters. The theoretical output is 100-200 bottles per hour, which decreases slightly with the increase of bottle type.
Machine features:.
1. This machine has low energy consumption, small volume and convenient maintenance.
2. Easy to operate
The function of auxiliary machine: 1. air compressor is the source of air supply to the bottle blowing machine (used for bottle blowing and equipment action); 2. the cold dryer is the air source and oil content on the cooling air compressor; 3. the filter is used to filter the air of the air compressor to avoid impurities and dirt entering the internal valve of the equipment, which will cause the equipment to fail to operate normally. 4. The cold water machine is used for cooling the mold. The parts of the mould must be cooled by the chiller or cooled with tap water.
Bottle blower Data sheet
|
Output |
Bottle shape |
100-200 PCS/H |
|
SIZE |
Bottle diameter |
160 mm- 270 mm |
|
Bottle height |
320 mm-4 9 0mm |
|
|
Bottle cap diameter |
15mm-100mm |
|
|
Mould |
Cavity |
1 cavities |
|
Mould thickness |
200 ~ 36 0mm |
|
|
Effective area of mould |
480*340mm |
|
|
Power |
Voltage |
380v 3Phase /220v 3Phase 50/60HZ |
|
Max power |
34 kw/ 10-15 kw |
|
|
High pressure air compressor |
1. 6 m3/min 3.0MPa |
|
|
Cold dryer |
2.0m3/min 3.0MPa |
|
|
Chiller water |
Cold water quantity |
15L/min |
|
Dimension |
Long width height / weight |
2400 * 820 *1 900 mm/ 9 50kg |
|
Oven size |
Long width height / weight |
2800 * 700 *1 700 mm/350kg |
Semi automatic bottle blowing machine hq-100 semi-automatic bottle blowing machine is specialized in cooking mineral water bottles, beverage bottles, oil, cosmetics, pesticides, civil medicine bottles, pet as raw material and other plastic containers within 10-20 liters. It has the characteristics of small volume, low power consumption, convenient operation and maintenance.
