Quick Details
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
3250*3450*900mm
-
Application:
-
Furniture Factory, Wood Board Factory
-
Weight (KG):
-
800 KG
-
Power (kW):
-
5.5KW
-
Max.Cutting Height at 90°(mm):
-
100mm
-
Max.Cutting Height at 45°(mm):
-
70mm
-
Max. Length of Workpiece (mm):
-
3200mm
-
Marketing Type:
-
New Product 2023
-
Support Table Dimension:
-
910*620*80mm
-
Extension Table:
-
905*680*70mm
-
Cutting Extension Table:
-
640*680*70mm
-
Main saw blade diameter:
-
300mm
-
Main Saw Blade Diameter Maximum:
-
350mm
-
Main Saw Bore Diameter:
-
30mm
-
Scorning Saw Blade Diameter:
-
120mm
-
Scorning Saw Bore Diameter:
-
20mm
-
Scorning Saw Motor Power:
-
1.1KW
-
Blade Tilting Adjustment:
-
0-45°
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OSETMAC
-
Usage:
-
Wood Cutting
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
3250*3450*900mm
-
Application:
-
Furniture Factory, Wood Board Factory
-
Weight (KG):
-
800 KG
-
Power (kW):
-
5.5KW
-
Max.Cutting Height at 90°(mm):
-
100mm
-
Max.Cutting Height at 45°(mm):
-
70mm
-
Max. Length of Workpiece (mm):
-
3200mm
-
Marketing Type:
-
New Product 2023
-
Support Table Dimension:
-
910*620*80mm
-
Extension Table:
-
905*680*70mm
-
Cutting Extension Table:
-
640*680*70mm
-
Main saw blade diameter:
-
300mm
-
Main Saw Blade Diameter Maximum:
-
350mm
-
Main Saw Bore Diameter:
-
30mm
-
Scorning Saw Blade Diameter:
-
120mm
-
Scorning Saw Bore Diameter:
-
20mm
-
Scorning Saw Motor Power:
-
1.1KW
-
Blade Tilting Adjustment:
-
0-45°

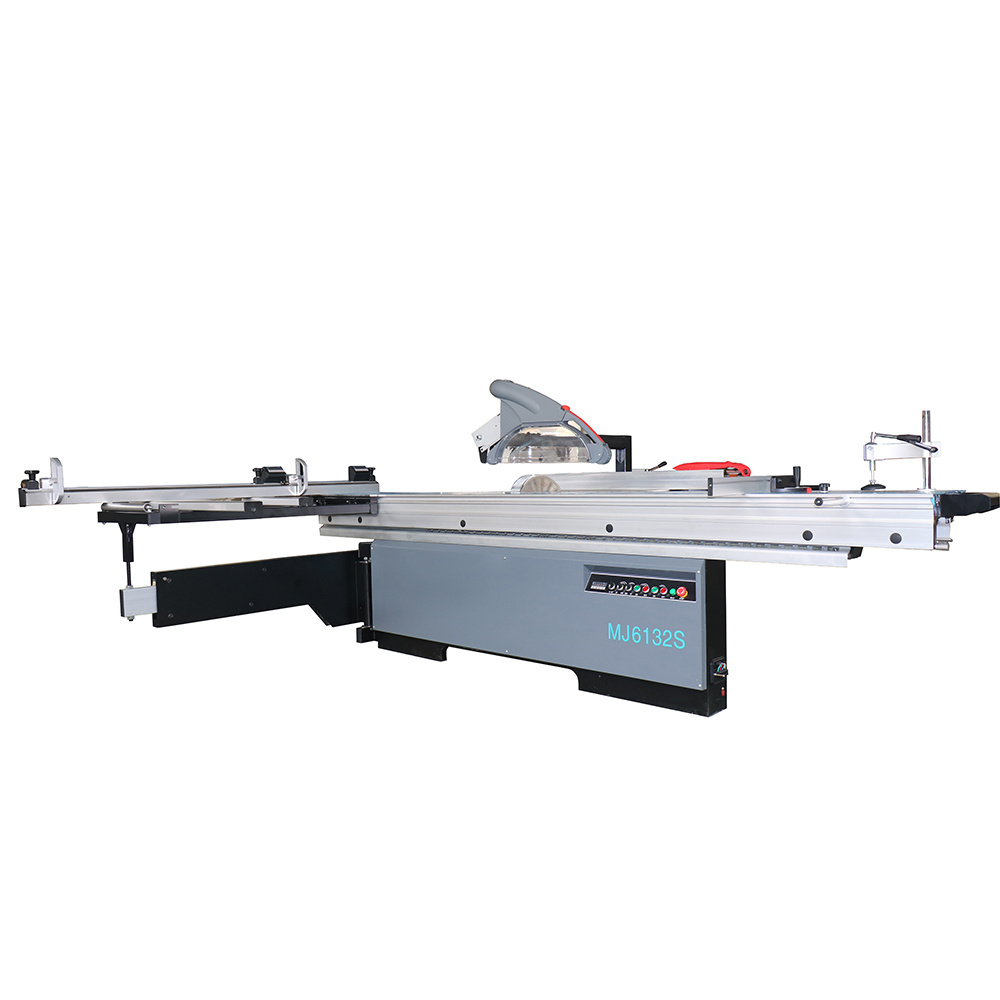

Precision Woodworking Machinery Sliding Table Saw Sliding Table Saw For Picture Frame
* This machine uses linear guideway to lift the saw blade.
* All bearings in this machine are all imported SKF brand.
* The table is made of fully-extruded, anodized aluminum.
* With cast-iron main table and broaden extension table.
* The main saw blade lifting is electric control.
* The hand wheel for saw blade tilting is very light.
* Fine adjustment range is between 0-10mm.
* Digital Readout is available according to your requirement.
* There are comb lock on the table.
| Parameters | |||
| Sliding Table Dimension | 3200*390mm | ||
| Cast Iron Table Dimension | 910*620*80mm | ||
| length extension table | 905*680*70mm | ||
| width cutting extension table | 640*680*70mm | ||
| Main Saw Diameter | 300mm | ||
| Main Saw Blade Diameter Maximum | 350mm | ||
| Main Saw Bore Diameter | 30mm | ||
| Max. Cutting Height With Bade at 90 | 80/100mm(φ300/350) | ||
| Max. Cutting Height With Bade at 45 | 50/70mm(φ300/350) | ||
| Main Motor Power | 5.5KW | ||
| Main Blade Speed | 4000/6000RPM | ||
| Scorning Saw Blade Diameter | 120mm | ||
| Scorning Saw Bore Diameter | 20mm | ||
| Scorning Saw Motor Power | 1.1KW | ||
| Scorning Blade Speed | 8000RPM | ||
| Max. Cutting Width | 1250mm | ||
| Max. Cutting Length | 3100mm | ||
| Blade Tilting Adjustment | 0-45° | ||
| Main Saw Height Adjustment | Electric | ||
| Scorning Saw Height Adjustment | Manual | ||
| Dust Guard Outlet Diameter | 80mm | ||
| Dust System Outlet Diameter | 100mm | ||
| Dimension of Wood Packing Carton | 2250*1200*1100mm(Main Crate ) | ||
| 3400*450*290mm(Sliding Table) | |||
| Dimension | 3250*3450*900mm | ||
| G. W. | 800KG | ||
