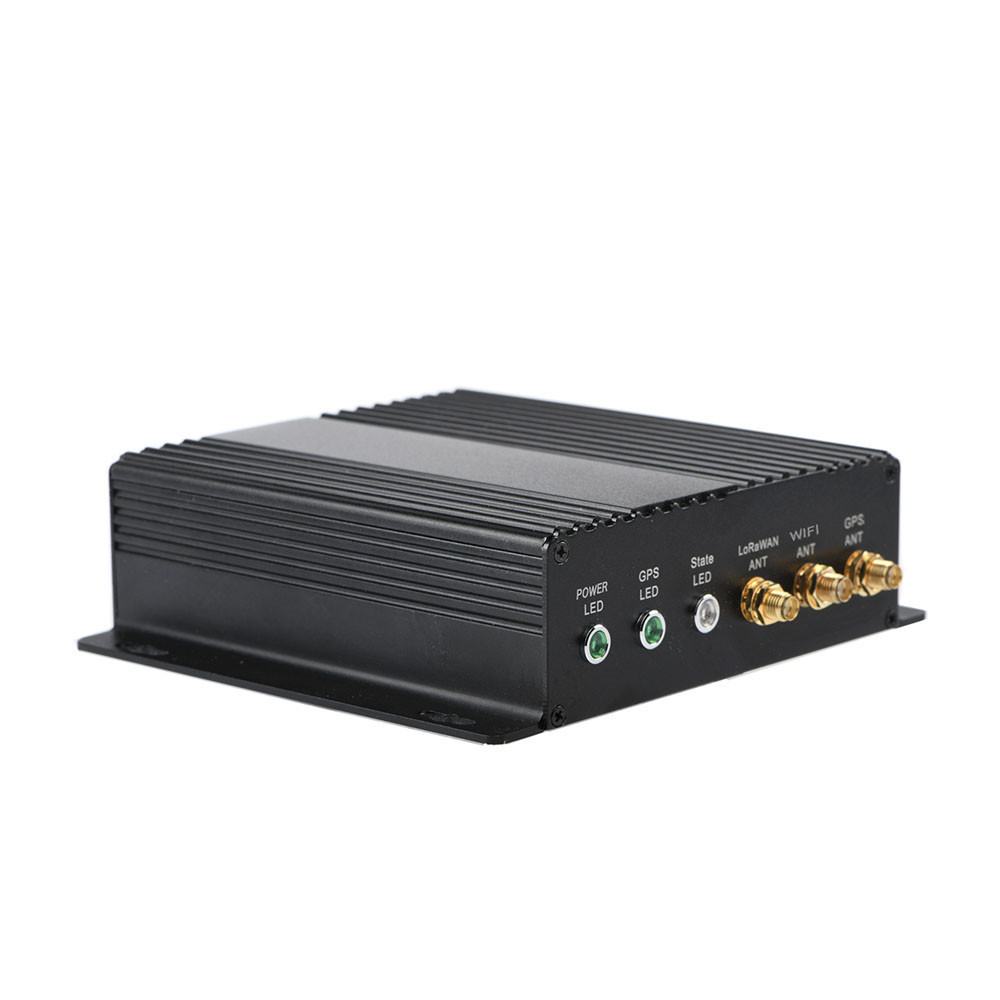

G-NiceRF LoRaWAN Gateway Transmitter And Receiver RF Module LG1301-PF lorawan gateway Module
LG1301-PF is the LoRaWAN gateway. It can work with any LoRaWAN node which comply Standard LoRaWAN protocol V1.0.
The gateway use linux platform as host.It mainly consists of concentrator ,GPS module ,WIFI and Ethernet. The GPS module send NMEA frames containing time and geographical coordinates data to the host. The GPS module also output one pulse to the sx1301 per second.
The gateway receives the RF data from nodes and sends to the server. It also receive data from the server and transmit to the nodes. The gateway connects to the server via Ethernet or WiFi.
Features of LoRaWAN Gateway LG1301-PF
- LoRaWAN protocol supported
- Uart interface
- AES128 encryption
- 8 channel communication simultaneously
- Configurable parameters
- GPS support
- Long range
- EU433M / EU868M / KR920M / AS923M / CN780M/ CN470M / US915M / AS915M
,
Application of LoRaWAN Gateway LG1301-PF
- Smart city
- Smart Metering ( Water, Electric, Gas meter )
- Agricultural Monitoring
- Irrigation control
- Internet of Things (IoT)
- M2M
- Wireless Sensors
- Wireless Alarm and Security Systems
Block Diagram
Electrical Characteristics
Pin definition
|
No. |
Definition |
Description |
|
1 |
SET |
Press to enter/exit setting mode |
|
2 |
Power input |
9~30V |
|
3 |
RJ45 |
Connect to the internet |
|
4 |
Micro USB |
Connect to PC for configuration |
|
5 |
Power LED |
Green LED, indication of powered on. |
|
6 |
GPS LED |
Green LED, indication of the GPS module is running. |
|
7 |
Status LED |
Light on in setting mode, and blinks once per second in normal mode |
|
8 |
LoRaWAN ANT |
Connected with Antenna for lora RF radio. |
|
9 |
WiFi ANT |
Connected with Antenna for WiFi. |
|
10 |
GPS ANT |
Connected with Antenna for GPS module. |
Mechanical dimension
