Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
GC-1 (U1)
-
Pitch:
-
3.175mm
-
Wire pitch:
-
2mm
-
Wire diameter:
-
1mm
-
Length:
-
300mm
-
Quantity per box:
-
300mm*12 pcs
-
Boxes per carton:
-
50 boxes or 600 pcs
-
Box size:
-
320*62*47mm
-
Carton size:
-
650*265*340mm
-
Gross W. per carton:
-
17kgs
-
Pin diameter:
-
1.6mm, 2.3mm
Quick Details
-
Material:
-
Stainless steel
-
Type:
-
Wire Hook
-
Size:
-
650*265*340mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
GC-1 (U1)
-
Pitch:
-
3.175mm
-
Wire pitch:
-
2mm
-
Wire diameter:
-
1mm
-
Length:
-
300mm
-
Quantity per box:
-
300mm*12 pcs
-
Boxes per carton:
-
50 boxes or 600 pcs
-
Box size:
-
320*62*47mm
-
Carton size:
-
650*265*340mm
-
Gross W. per carton:
-
17kgs
-
Pin diameter:
-
1.6mm, 2.3mm

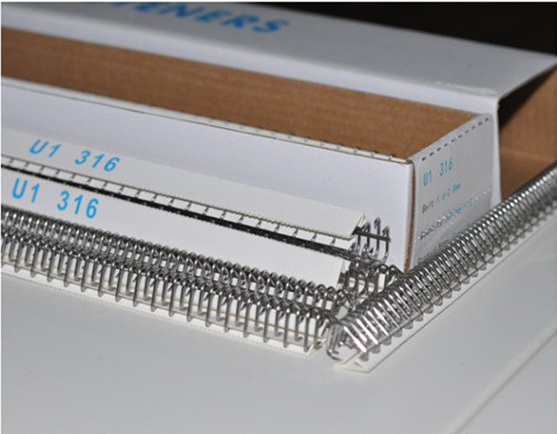

300mm SS316 Wire Hook U1Belt Fastener for Connecting Rubber Conveyor Belt
Product Description
Application
Wire hook is a special fastener for laundry conveyor belt, PVC conveyor belt, filter belt and felt belt.
Characteristcs
Each hook is welded to a steel stainless bar;
The price is favorable, economical and practical.
Standard packaging 300mm * 12 for each box;
custom length 600mm*10
If you need special specifications,the length can be upto 600 mm
Specification
| Code |
Length
mm |
Pack Mark |
Wire Dia
mm |
SS Grade |
Belt thickness range
mm |
Strips per box | Hooks per card |
| GC-1SP | 300 | U1, 316 | 1.0 | 304 | 1.6~2.8 | 300*12 | 96 |
| 600 | U1, 316 | 1.0 | 304 | 1.6~2.8 | 600*10 | 192 | |
| GC-1 | 300 | U1, 316 | 1.0 | 304 | 1.6~3.0 | 300*12 | 96 |
| 600 | U1, 316 | 1.0 | 304 | 1.6~3.0 | 600*10 | 192 | |
| GC-2 | 300 | No mark | 1.2 | 304 | 3.2~4.0 | 300*12 | 84 |
| GC-3 | 300 | U3, 316 | 1.4 | 304 | 4.0~4.8 | 300*12 | 84 |
| Model | Belt thickness mm | Min. diameter of pulley | Wire diameter | Pin diameter | ||
| Inch | mm | Inch | mm | mm | mm | |
| GC-1 SP | 1/16~1/8 | 1.6~2.8 | 2 | 51 | 1.0 | 1.6 |
| GC-1 | 1/16~5/32 | 1.6~3.0 | 2 | 51 | 1.0 | 1.6 |
| GC-2 | 1/8~5/32 | 3.2~4.0 | 2-1/2 | 64 | 1.2 | 2.3 |
| GC-3 | 5/32~3/16 | 4.0~4.8 | 3-1/2 | 89 | 1.4 | 2.3 |
